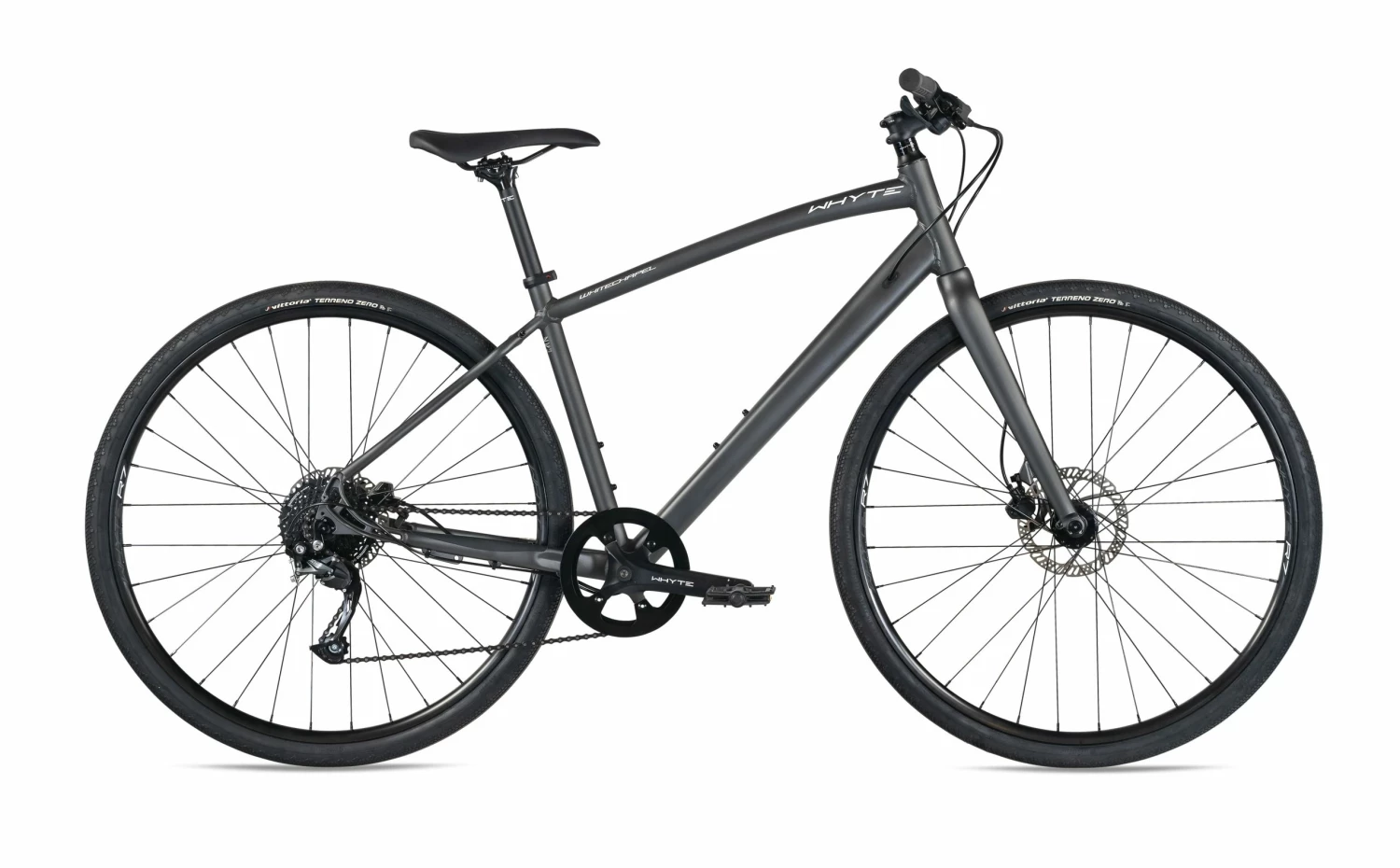

Whyte Whitechapel V3 Bike

Seize the cycling revolution

With more bike paths, cycling cafes and safety boosting law changes there’s never been a better time to ride and
we’ve designed the Whitechapel to make the most of that. Custom alloy frame with wide range gears makes outpacing
the jams or heading out over the hills a breeze. All weather disc brakes and an upright mountain bike informed
riding position put you in full control whether you’re weaving through queuing traffic or a winding path through the
trees.

Big – but race fast – slick tyres on tough trail style rims keep you rolling with ease whatever debris is in your
way, while a guarded chain keeps you looking as clean and smart as the internal cables on the frame. Whatever the
job or weather we’ve got you covered with full lifestyle accessory fixtures too.

Specifications

Frame and Forks

• Frame: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX and Custom
  Whyte Dropouts, Chain Stay Kick Stand Mount
• Forks: Whyte Straight Bladed 6061 Alloy, Forged Crown, Alloy Steerer, Internal Cable Routing, Post Mount
  with Single Eyelets for Mudguards

Drivetrain

• Crankset: Alloy, 42 Tooth Chainring with Alloy Chain Guard
• Rear Derailleur: Shimano Altus RD-M2000-SGS, 9 Speed
• Cassette: Shimano CS-HG-200, 11-36, 9 Speed
• Chain: Sunrace, 9 Speed

Braking/Shifting

• Shifters: Shimano Altus SL-M2010, 9 Speed
• Front Brakes: Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
• Rear Brakes: Tektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
• Brake Levers: Tektro HD-M275

Wheels

• Rims: Whyte Disc Road, Low Profile, 23mm Wide, Tubeless Compatible, 3M Reflective Decals, 32 Hole Rear
  and 32 Hole Front
• Front Hub: Alloy, Cup & Cone, Double Seal, 32 Hole
• Rear Hub: Alloy, Cup & Cone, Double Seal, 32 Hole
• Spokes: 2.0mm, PG, Black Stainless, Brass Nipples
• Front Tyre: Vittoria Terreno Zero 700 x 37c, Puncture Protection
• Rear Tyre: Vittoria Terreno Zero 700 x 37c, Puncture Protection

Finishing Kit

• Handlebars: Whyte 6061 Alloy, 25mm Rise, 31.8mm, 620mm Wide
• Grips: Whyte Custom Dual Density Lock-on
• Stem: Whyte Alloy, Small 45mm, Medium / Large / X-Large 60mm
• Seatpost: Whyte 6061 Alloy, 25mm Offset, 27.2mm x Small / Medium / Large 350mm, X-Large 400mm, 2 Bolt
  Clamp
• Saddle: Whyte Custom
• Pedals: Fibre Reinforced Composite Platform
