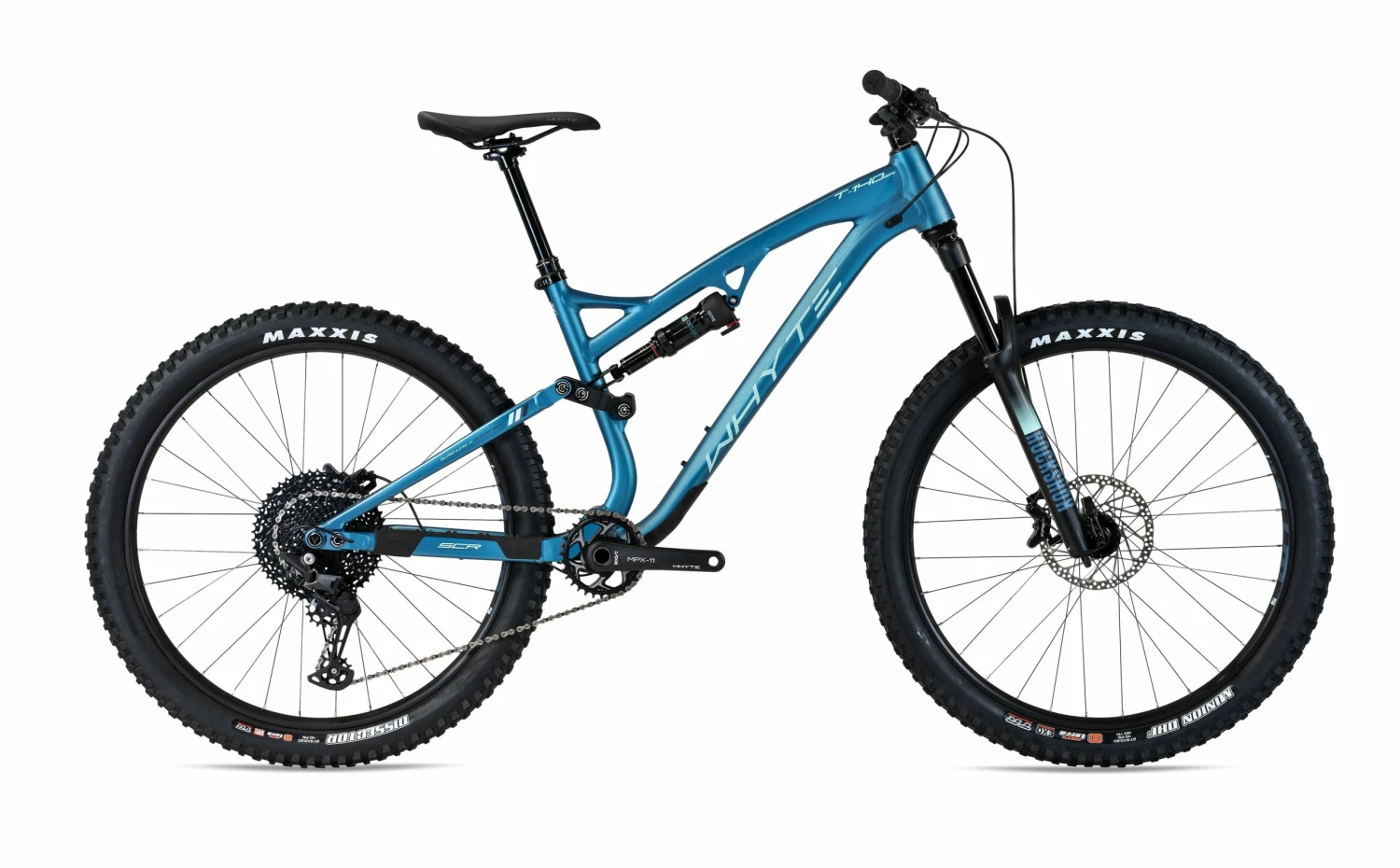

Whyte T-140 SR Bike

Flat out for less

You just can’t get a better trail raging, all-rounder for the money than our top value SR spec T-140. That’s because
it uses the same trail and bike test dominating Total Geometry handling, evolved alloy frames of our most popular
bikes. We then add the outstanding performance and value RockShox’s 35 fork and Shimano’s ultra-reliable 11 speed
Deore gears so you spend far more time tearing up the singletrack than spannering on your bike.

This year we’ve even treated it to exactly-the-same top spec Maxxis 27.5 x 2.6 inch tyre spec as our flagship carbon
bikes. Crushing the trails and the competition? Completed it mate.

Specifications

Frame and Forks

• Frame: 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube and Intergrip Seat Clamp System, ISCG, 2
  Bolt Guide Mounts, Alloy Symmetrical SCR Rear Triangle, 148mm Boost Dropouts
• Forks: RockShox 35 Gold RL 27.5″, 140mm Travel, 37mm Offset, DebonAir, Motion Control Damper, Fast Black
  Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
• Rear Shock: RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position
  Compression
• Headset: FSA No. 57 Orbit ZS, ACB, 1 1/2″ Lower and 1 1/8″ Upper Sealed Cartridge Bearings

Drivetrain

• Crankset: Whyte, Forged 2 pieces Cranks, Direct Mount alloy 32 Tooth Narrow Wide Boost Chainring, 170mm, Boost,
  11 Speed
• Bottom Bracket: BSA, Cartridge Bearings, 73mm
• Cassette: SunRace CSMS8, 11-51 Tooth, 11 Speed
• Rear Derailleur: Shimano Deore RD-M5100-SGS, Shadow Plus, 11 Speed
• Chain: SunRace, 11 Speed

Braking/Shifting

• Shifters: Shimano Deore M5100, I-Spec EV 11 Speed
• Front Brakes: TRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm Disc
• Rear Brakes: TRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm Disc, Internal Routing
• Brake Levers: TRP Slate Evo

Wheels

• Rims: WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
• Front Hub: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
• Rear Hub: Alloy, Double Sealed Cartridge Bearings, Centre Lock 12mm x 148mm Boost Thru Axle, 32 Hole
• Spokes: DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
• Front Tyre: Maxxis Minion DHF TR 27.5″ x 2.6″ 120TPI, EXO Sidewall Protection, 3C Maxx Terra
• Rear Tyre: Maxxis Dissector TR 27.5″ x 2.6″ 60TPI, EXO+ Sidewall Protection

Finishing Kit

• Handlebars: Whyte 6061 Alloy, 31.8mm, X-Small / Small 15mm Rise, 760mm Wide, Medium / Large / X-Large, 30mm Rise
  780mm Wide
• Grips: Whyte Lock-on Enduro Grip
• Stem: Whyte Gravity Stem, 35mm Extension
• Seatpost: Trans-X, 30.9mm, X-Small 100mm Travel, Small 125mm Travel, Medium / Large / X-Large 150mm Travel,
  Shimano Remote Lever
• Saddle: Whyte Custom, Dual Density, Triple Panel Design
• Pedals: Not Included
