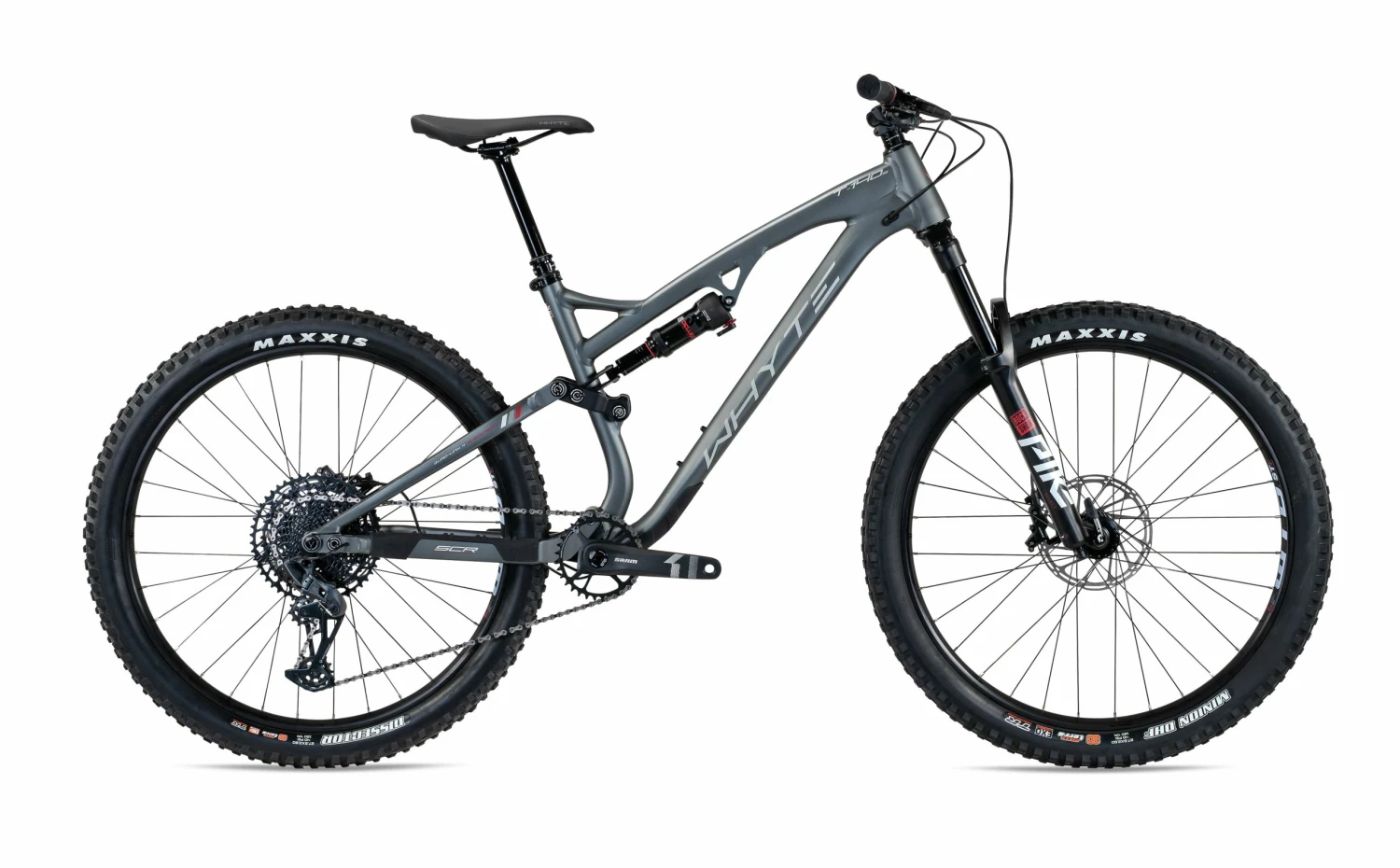

Whyte T-140 S V2 Bike

This year our full alloy frameset, 27.5in wheeled hardcore all-round fun machine gets upgraded with top spec Maxxis
tyres, SRAM GX Eagle gears, up specced brakes and our brilliant adjustable dropper post. But it’s the unstoppable
have a go hero enthusiasm of our Total Geometry handling that makes it such a favourite with radical riders and
professional testers.

It’ll suck you into its brilliant, blast everything world from the first second you point it down a trail and it
shows you just how much flat-out fun mountain biking can be.

Specifications

Frame and Forks

• Frame: 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy
  Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts
• Forks: RockShox Pike Select RC 27.5″, 140mm Travel, 37mm Offset, DebonAir, Charger RC Damper, Fast Black
  Coating, Tapered Steerer, 15 x 110mm Boost, Maxle Ultimate
• Rear Shock: RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position
  Compression

Drivetrain

• Crankset: SRAM X1 Eagle, X-SYNC 2, Direct Mount 32 Tooth, DUB, 170mm, Boost, 12 Speed
• Bottom Bracket: SRAM DUB, BSA, 73mm
• Rear Derailleur: SRAM GX Eagle, 12 Speed
• Cassette: SRAM PG-1230 Eagle, 11-50 Tooth, 12 Speed
• Chain: SRAM GX Eagle, 12 Speed

Braking/Shifting

• Shifters: SRAM GX Eagle, MMX Clamp, 12 Speed
• Front Brakes: SRAM Guide G2 R, 4 Piston, 180mm Disc
• Rear Brakes: SRAM Guide G2 R, 4 Piston, 180mm Disc, Internal Routing
• Brake Levers: SRAM Guide G2 R, Matchmaker

Wheels

• Rims: WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
• Front Hub: Alloy, Double Sealed Cartridge Bearings, Centrelock, 15 x 110mm Boost Thru Axle, 31mm Torque
  Caps, 32 Hole
• Rear Hub: Alloy, Double Sealed Cartridge Bearings, Centrelock, 12 x 148mm Boost Thru Axle, 32 Hole
• Spokes: DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
• Front Tyre: Maxxis Minion DHF TR 27.5 x 2.6″ 120TPI, EXO Sidewall Protection, 3C Maxx Terra
• Rear Tyre: Maxxis Dissector TR 27.5 x 2.6″ 60TPI, EXO+ Sidewall Protection

Finishing Kit

• Handlebars: Whyte 6061 Alloy, 31.8mm, Small 15mm Rise, 760mm Wide, Medium / Large / X-Large, 30mm Rise
  780mm Wide
• Stem: Whyte Gravity Stem, 35mm Extension
• Headset: FSA No. 57 Orbit ZS, ACB, 1 1/2″ Lower and 1 1/8″ Upper Sealed Cartridge Bearings
• Seatpost: CWhyte drop.it II Adjust, 30.9mm, Small / Medium 120-150mm Travel, Large / X-Large 140-170mm Travel, Paddle Remote
  Lever
• Saddle: Whyte Custom, Dual Density, Triple Panel Design
• Pedals: Not Included
