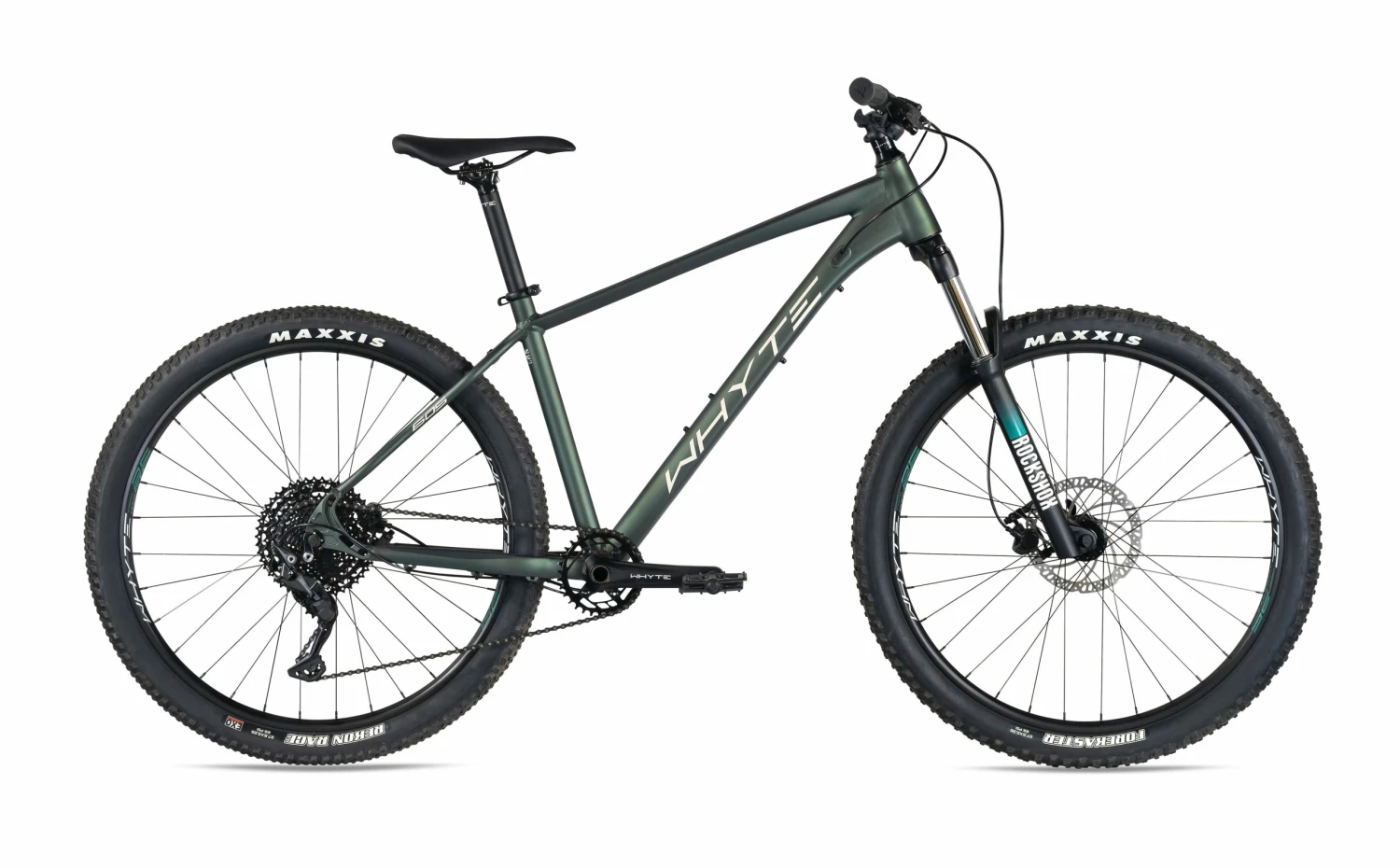

Whyte 605 V4 Bike

Totally Ready To Rip

As we love to say at Whyte, good geometry doesn’t have to cost any more than bad geometry and that’s clear in the
trail ripping, maximum fun character of our 6 Series Sport Hardtails.

The 120mm travel RockShox fork tells you to take the terrain head on with 10 speed Shimano sequential shift single
ring gears and a benchmark front grip, rear speed Maxxis tyre pairing for shrinking long miles and big climbs. We’ve
even fitted our Whyte Enduro race grips so you’re fully hands on with every dirty big grin moment.

Specifications

Frame and Forks

• Frame: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Internal Cable Routing with BBX, Chainstay
  Post Mount Dropouts
• Forks: RockShox Judy TK 27.5″, 120mm Travel, Adjustable Rebound, Turn Key Lockout

Drivetrain

• Crankset: Whyte, Forged 2 pieces Cranks, 32 Tooth Narrow / Wide Chainring, 170mm, 10 Speed
• Rear Derailleur: Shimano Deore RD-M5020-SGS, Shadow Plus, 10 Speed
• Cassette: SunRace CSMS2, ED Black, 11-46 Tooth, 10 Speed
• Chain: SunRace, 10 Speed

Braking/Shifting

• Shifters: Shimano Deore SL-M4010, 10 Speed
• Front Brakes: Tektro HD-M275, Hydraulic, 180mm Rotor
• Rear Brakes: Tektro HD-M275, Hydraulic, 180mm Rotor, Internal Routing
• Brake Levers: Tektro HD-M275

Wheels

• Rims: Whyte Trail 25, Tubeless Compatible, 32 Hole
• Front Hub: Alloy, Cup & Cone, Double Seal, 32 Hole
• Rear Hub: Alloy, Cup & Cone, Double Seal, 32 Hole
• Spokes: 2.0mm, PG, Black Stainless, Brass Nipples
• Front Tyre: Maxxis Forekaster 27.5″ x 2.35″
• Rear Tyre: Maxxis Recon Race 27.5″ x 2.25″ Wire Bead

Finishing Kit

• Handlebars: Whyte 6061 Alloy, 25mm Rise, 31.8mm, 760mm Wide
• Grips: Whyte Lock-on V Grip
• Stem: Whyte Alloy, Small 35mm, Medium / Large / X-Large 45mm
• Seatpost: Whyte 6061 Alloy, 12mm Offset, 30.9mm x Small / Medium 350mm, Large / X-Large 400mm, 2 Bolt Clamp
• Saddle: Whyte Custom
• Pedals: Fibre Reinforced Composite Platform
