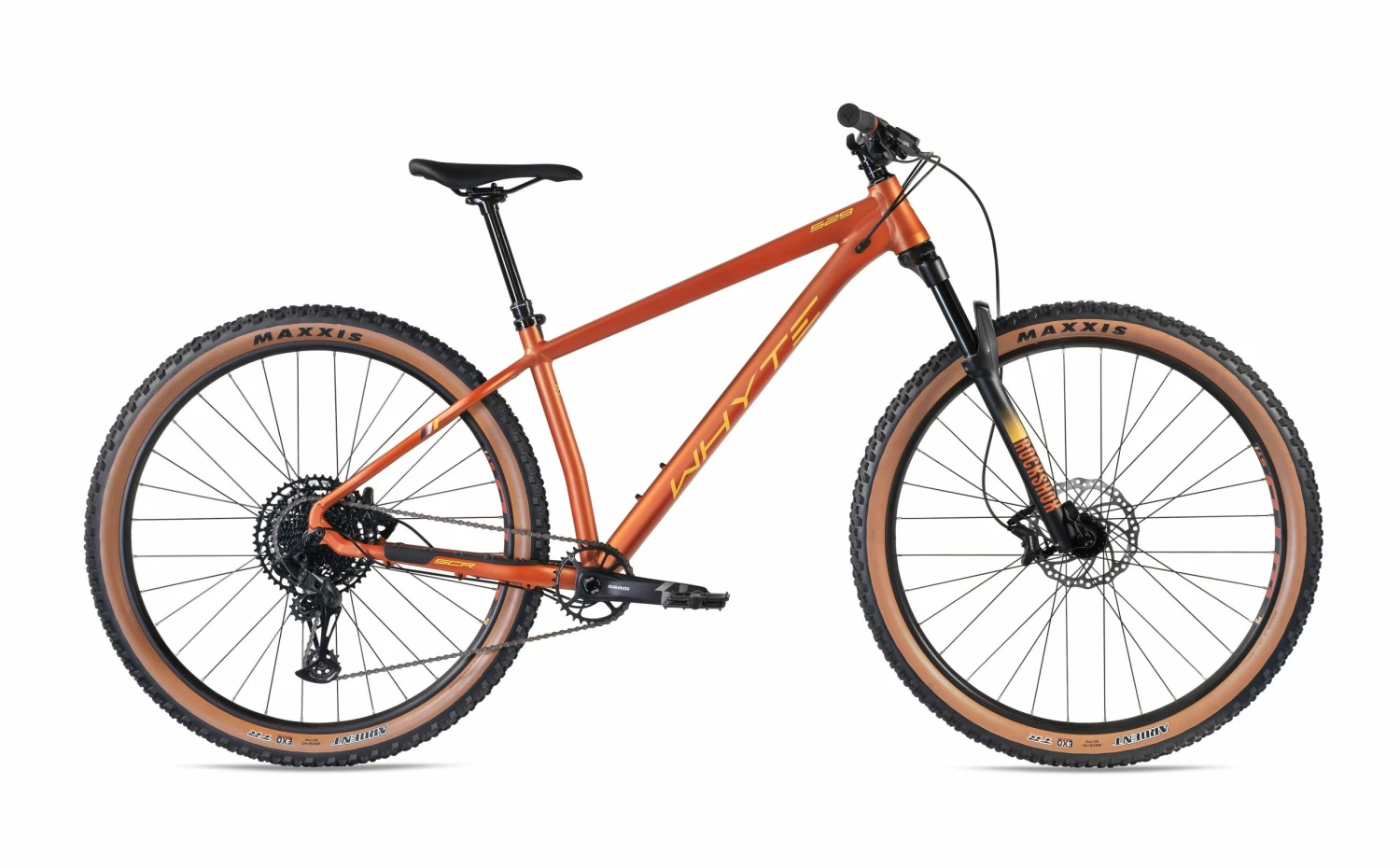

Whyte 529 V4 2022 Bike

We’ve improved the specification on the new V4 529. Upgrades include a dropper post, SRAM’s 12 speed SX Eagle
drivetrain with a huge 11-50 tooth cassette and an updated frame with a new workshop-friendly BBX shell with increased
axle
clearance for easier maintenance.

Our proprietary OTO & SCR technology combine with Whyte Trail Geometry to bring increased balance and control to the
29er trail hardtail category.

A RockShox Recon B Spec fork and the Boost rear dropout, means lots of mud clearance and allows up to a 2.8” tyre to
be fitted.

Specifications

Frame and Forks

• Frame: 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Internal Cable Routing with
  BBX63, Chainstay Post Mount Dropouts and 12mm x 148mm Boost Dropouts
• Forks: RockShox Recon RL 29″, 120mm Travel, 42mm Offset, Solo Air, Fast Black Coating, Adjustable Rebound, Tapered
  Alloy Steerer, 110mm x 15mm Boost, Maxle Lite
• Headset: FSA No. 57B Orbit ZS, 1 1/2″ Lower and 1 1/8″ Upper Caged Bearings

Drivetrain

• Crankset: SRAM X1 Eagle, X-SYNC 2, Direct Mount 32 Tooth, DUB, 170mm, Boost 12 Speed
• Bottom Bracket: SRAM DUB, BSA, 73mm
• Rear Derailleur: SRAM SX Eagle, 12 Speed
• Freewheel: SRAM PG-1210 Eagle, 11-50, 12 Speed
• Chain: SRAM SX Eagle, 12 Speed

Braking/Shifting

• Shifters: SRAM SX Eagle, 12 Speed
• Brakes Levers: Tektro M-535
• Front Brake: Tektro HD-M535, 4 Piston, 2.3mm gauge 180mm Disc
• Rear Brake: Tektro HD-M535, 4 Piston, 2.3mm gauge 180mm Disc, Internal Routing

Wheels

• Front Hub: Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
• Rear Hub: Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
• Spokes: DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
• Rims: WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
• Tyres: Maxxis Forekaster 29″x 2.35″ Dual Compound, 60TPI

Finishing Kit

• Handlebars: Whyte 6061 Alloy, 15mm Rise, 31.8mm, 780mm Wide
• Grips: Whyte Lock-on Enduro Grip
• Stem: Whyte Alloy, 35mm Extension
• Seatpost: Whyte Drop.it, 30.9mm, Small 125mm Travel, Medium / Large / X-Large 150mm Travel, Paddle Remote Lever
• Saddle: Whyte Custom
