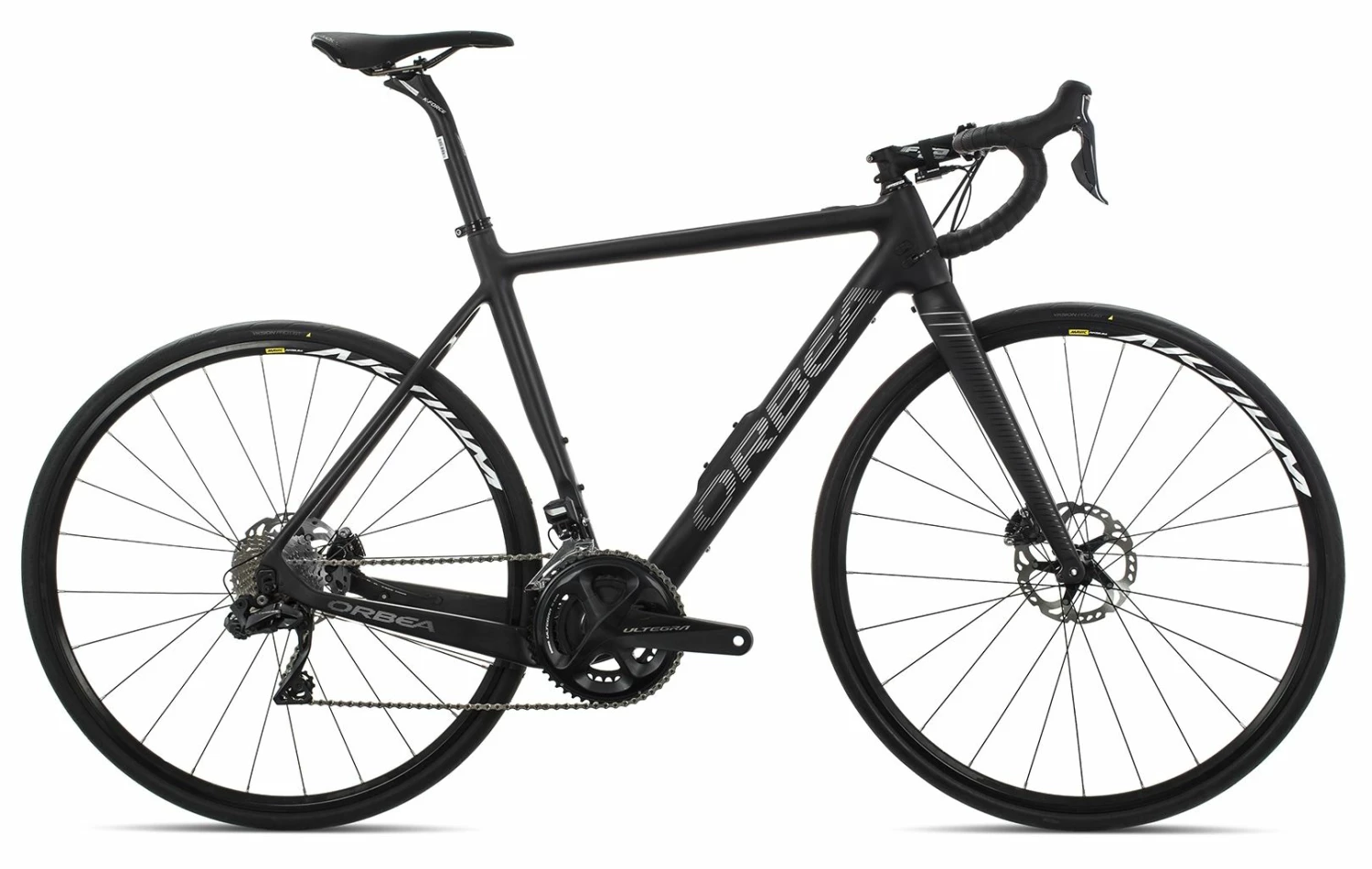

Orbea Gain M20i 2019 Electric Bike

The Orbea Gain M20i is a powerful high-spec electric road bike featuring a full Carbon frameset, full Shimano Ultegra Di2 Disc groupset, Mavic Aksium Elite wheels and of course a discreet and powerful EBikeMotion integrated motor system to make short work of harsh climbs.

With instantaneous and highly consistent gear transmissions, high modulation all-weather braking, bigger than average 28c tyres and excellent compliance courtesy of the Carbon frameset construction, the Gain M20i is super versatile bike, and the power output modes can be managed via a single toptube button, meaning no thumb controls or LCD screens to clutter the cockpit.

Frame and Forks

Frame: Orbea Gain Carbon Monocoque, Flat Mount Disc, QR Dropout, Internal Cabling, Integrated Motor/Battery/Sensors
Fork: Orbea Gain Carbon, Flat Mount Disc, QR Dropout

Drivetrain

Front Derailleur: Shimano Ultegra Di2 Double
Rear Derailleur: Shimano Ultegra Di2 11-Speed
Cassette: Shimano Ultegra 11-Speed, 11-32T
Chain: KMC E11 Turbo, E-Bike Optimised
Crankset: Shimano Ultegra Alloy, 34/50T Rings
Bottom Bracket: Motor Integrated, Sealed Unit

Braking/Shifting

Shifters: Shimano Ultegra Di2 2×11-Speed
Brakes: Shimano Ultegra Hydraulic Flat Mount Disc, 160mm Rotors
Brake Levers: Shimano Ultegra Hydraulic

Wheels

Rims: Mavic Aksium Elite Disc, Tubeless Ready
Hubs: Mavic Aksium Elite Disc, QR Axles
Tyres: Mavic Yksion Pro, 700x28c, Tubeless Ready

Finishing Kit

Handlebar: FSA Energy Compact Alloy
Grips: Orbea Tape
Headset: FSA Tapered Sealed
Stem: FSA Energy Alloy
Seatpost: FSA K-Force SB25 Carbon, Di2 Battery Compatible, 31.6mm Diameter
Seatclamp: Alloy Bolted
Saddle: Prologo Kappa Space STN
Pedals: N/A

Electronics

Motor: EBikeMotion X35, BB-Integrated, 25kmh Max
Battery: EBikeMotion, Downtube Integrated, 36V / 6.9A
Interface: EBikeMotion iWoc One, Toptube Integrated Button
