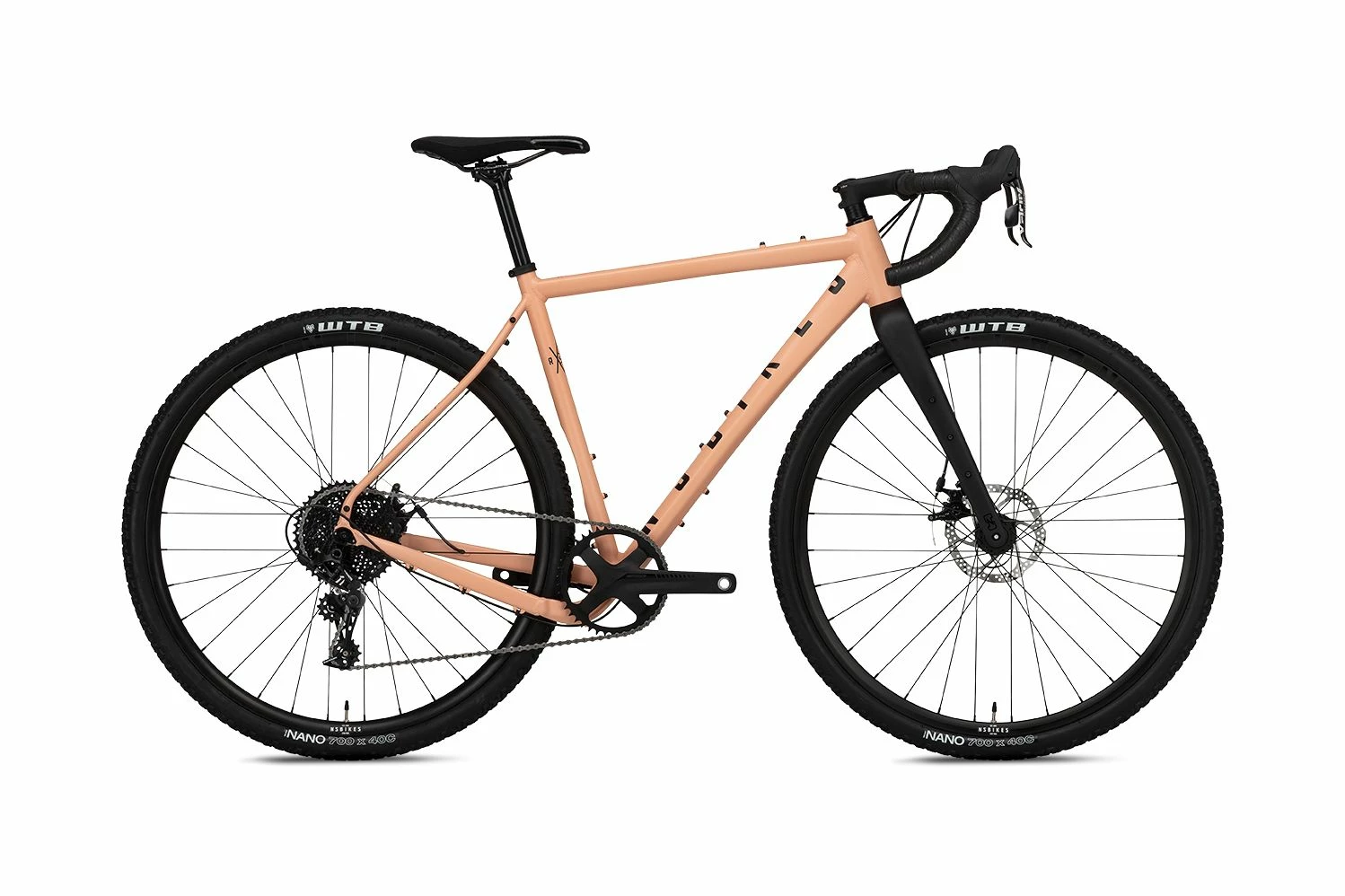

Ns-bikes NS Rag+ 2 2021 Bike

Gravel bikes have become incredibly popular and we were in the game from the begging with a bike that had dirt
heritage in it’s DNA. The Rag+ has become a favorite among our employees and friends, even those who would never
even consider a drop bar bike before. The range of applications is endless – from commuting to amateur cx racing, or
simply as a fitness bike. A properly scaled down version of the rag is also available on 26” wheels, and is perhaps
one of the only really gravel specific kid’s bikes on the market.

Technology

Frame

Tough and light alloy frame.

Technology

Thru-axles, 1x drivetrains, disc brakes, tubeless ready rims: everything that makes a true modern gravel bike rock!

Huge Tyre Clearance

Works with a huge range of tires – anything from 700 x 28c for road, to 650 x 2.0” for tough offroad tracks *

Unique Design

Unique graphic design, hardcore heritage is in the DNA of all NS bikes – even if they have drop bars!

Specifications

Frame and Forks

• Frame: NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142 x 12mm dropouts
• Fork: NS Gravel+ full carbon fork, 15mm dropouts, 1.5 tapered steerer tube, NS thru axle
• Headset: GW integrated tapered IS42 / IS52, sealed bearings

Drivetrain

• Crankset: FSA Omega Small:170mm, Medium:172.5mm, Large:175mm 42 Tooth
• Bottom Bracket: FSA PF 86.5
• Chain: Sram, 11 Speed
• Derailleur: Sram Apex Type 2.1, long cage, 11 Speed
• Cassette: Sun Race CSMS7 11-42 Tooth

Braking / Shifting

• Brake Lever: Sram Apex
• Brake: TRP Spyre 160mm
• Shifters: Sram Apex, 11 Speed

Wheels

• Front Hub: Joytech 100 x 15mm
• Rear Hub: Joytech 142 x 12mm
• Rim: Alex Draw 2.1P asymmetrical, 32 Hole, tubeless compatible
• Tyres: WTB Nano 700 x 40c

Extras

• Handlebar: NS Flare 31.8 420, 440, 460mm
• Grips: Velo VLT-8111
• Stem: RAG+ Stem 31.8 Small:80mm, Medium:90mm, Large:100mm, X-Large:110mm, angle, – 8°
• Saddle: Octane One Rocker2
• Seatpost: Kalloy 27.2mm
• Weight: 10.3kg (Size medium, tubeless setup)
