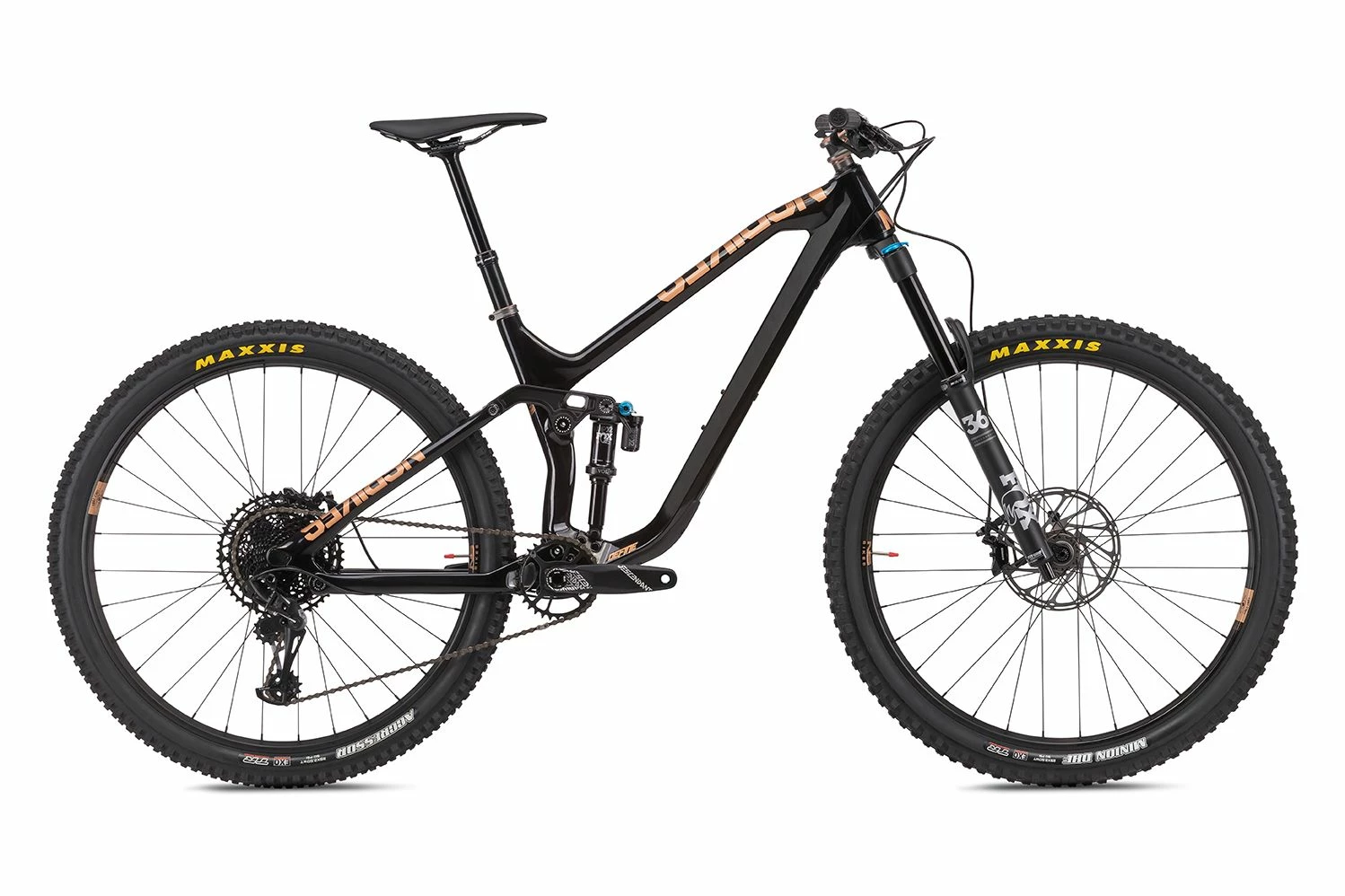

Ns-bikes NS Bikes Define 150 2 Bike

The beautiful lines of this bike were conceived by the guys who made the eurobike gold award winning Rondo Ruut. Very progressive geometry and kinematics, this bike simply blows everyone away after the first minutes they get on it. The define features unique semi-internal cable routing – a solution that is elegant and easy to service. The geometry is adjustable via offset headset cups that change the reach and top tube length, and via the shock mount which allows the bottom bracket to be raised or lowered. Big sealed pivots keep it stable and guarantee long periods of smooth, service free function. There are a few things that we borrowed directly from the Snabb – and that is the kinematics of the 4-bar suspension that everyone loves (Pinkbike: “There is so little pedal-induced bobbing at play here that it sort of boggles the mind”).

Features

Adjustable Bottom Bracket Height

You can raise the Bottom Bracket height by 5mm from the stock settings by using the adjustable shock mount or you can completely transform the bike by changing the shock mount & shock (changes travel from 155mm to 130mm or vice versa).

Oversized Bearings, Sealed Main Pivot

The pivot that is most difficult to replace is hidden inside the frame and remains completely isolated from dirt and water inside the frame.

Hybrid Cable Routing

The cables appear to be threaded through the downtube and chainstay but actually, they are only hidden in a special channel in the construction. Easy to replace anytime, anywhere!

Specifications

Frame and Forks

• Frame: NS Define, carbon fibre w/ 155mm travel, custom reach adjustable offset cups (+/- 10mm)
• Forks: Fox Float 36 Performance Grip, 160mm travel, 3pos-Adj with Open Mode Adj, 110 x 15mm Boost, 1.5T, 44mm offset
• Rear Shock: Fox Performace Float DPX2 3pos-Adj Evol LV Trunnion 205 x 62.5
• Headset: NS custom tapered 1 & 1/8″-1.5″ IS42 / IS52 reach adjustable offset cups (+/-10mm), sealed bearing

Drivetrain

• Crankset: Truvativ Descendant 6K DUB 170mm 32 Tooth
• Bottom Bracket: SRAM DUB BB92
• Chain: Sram, 12 Speed
• Derailleurs: Sram GX Eagle, 12 Speed
• Cassette: SRAM PG-1210, 12 Speed 11-50 Tooth

Braking/Shifting

• Front Brake: Sram Guide RE 4 piston, 200mm
• Rear Brake: Sram Guide RE 4 piston, 180mm
• Levers: Sram Guide RE
• Shifters: Sram NX Eagle, 12 Speed

Wheels

• Rims: Octane One Solar 29”, 32 Hole, tubeless compatible
• Spokes: Spokes with 14mm nipples
• Front Hub: NS Rotary 15 Boost 15 x 110 disc (sealed bearings)
• Rear Hub: NS Rotary Cassette 148 x 12mm Boost (sealed bearings)
• Tyres Front / Rear: Maxxis DHF EXO / TR 29 x 2.5″ WT, Maxxis Aggressor EXO / DD / TR 29 x 2.5″ WT

Finishing Kit

• Handlebar: NS Bar 800mm, 20mm rise
• Stem: NS Quantum Lite 35, 45mm
• Grips: NS Hold Fast
• Seatpost: X-Fusion Manic internal M: 150, L: 170mm
• Saddle: Octane One Crit, CroMoly hollow rails
• Weight (kg): 14.5
