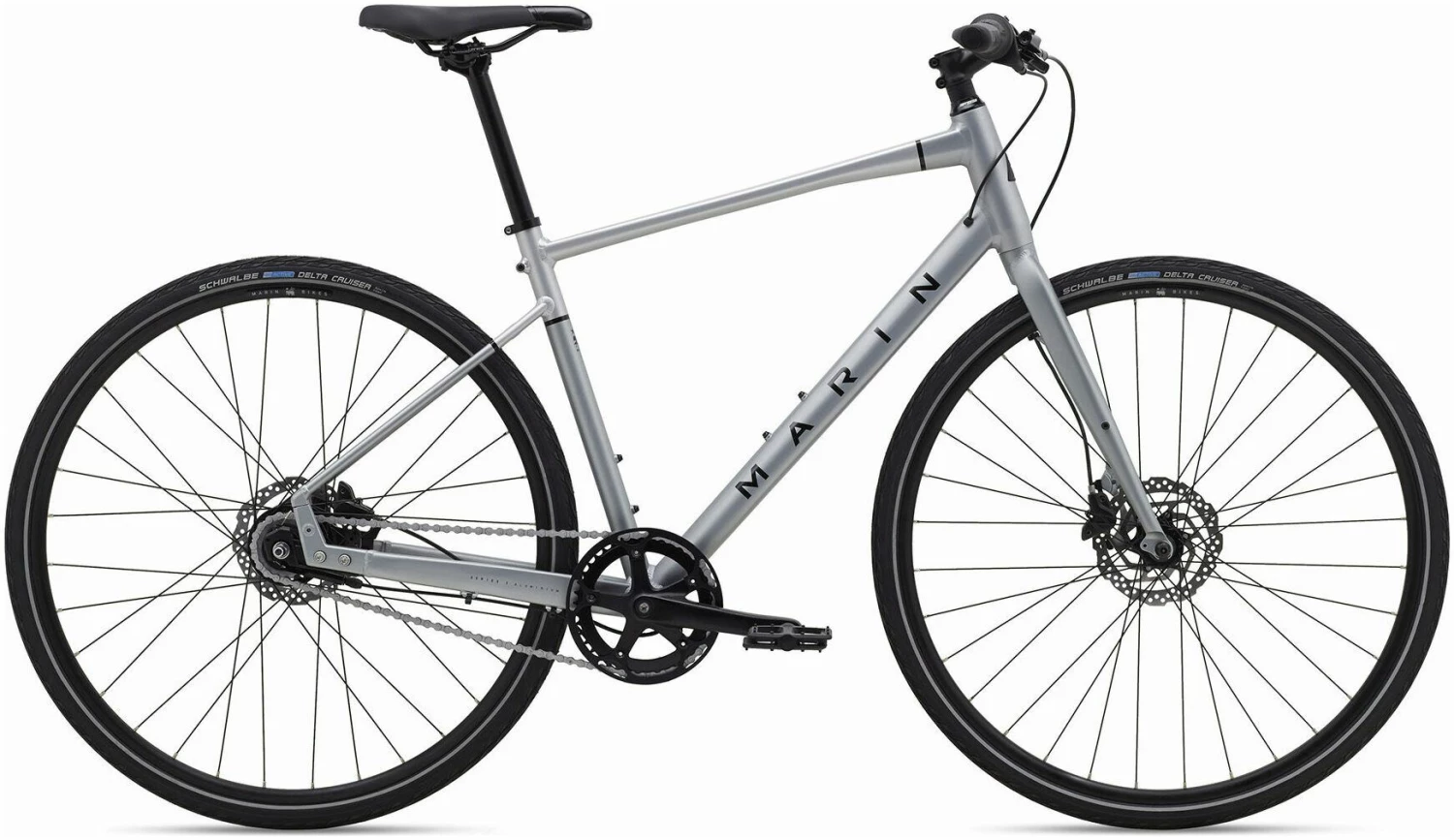

Marin Presidio 2 2023 Bike

The Presidio is our dedicated commuting range, designed with low maintenance and adaptability in mind. Internal gearing, disc brakes, puncture resistant tires and highperformance belt drives or corrosion-resistant chains arebuilt tough for city streets, while the lightweight aluminum frames feature all of the attachment points and braze-ons that commuters demand.

Technologies

SERIES 2 FRAMES

Series 2 Transit frames are constructed of lightweight 6061 aluminum tubing with internal cable routing, post mount dis brakes, and forged dropouts with rack and fender mounts, and an integrated kickstand mount.

MARIN SLIDER DROPOUTS

Our new slider dropouts were created specifically to bring the best technologies for commute bikes into a clean and tidy package. The dropouts slide to tension belts and chains, while incorporating flat mount disc brakes, and a direct mount rear kickstand to support the bike where weight is centered with gear.

DISC BRAKES

Hydraulic disc brakes provide smooth, controlled stopping in all
conditions with minimal maintenance.

INTERNALLY GEARED HUBS

Internally geared hubs package the gearing into a compact, maintenance-free package.

Specifications

• Frame: Series 2 Commute, 6061 Aluminum, 700C Wheels, Disc Brake, Fender and Rack Mounts
• Fork: 6061 Aluminum, Disc Brake, Straight-Blade
• Rim: Marin Aluminum Double Wall, Disc Specific
• Hub Rear: Shimano Nexus 7D 7-Speed Internally Geared Hub, Centerlock Disc, 32H
• Hub Front: Forged Aluminum Alloy, 32H
• Spokes: 14g Black Stainless Steel
• Tires: Vee Tire, Baldy, 700×32, Puncture Protection, Reflective Sidewall, Wire Bead
• Derailleur Rear: n/a
• Derailleur Front: n/a
• Shift Lever: Shimano Nexus Twist Shifter 7-Speed
• Crankset: Forged Alloy, 42T, Ring Guard
• Bottom Bracket: Sealed Cartridge Bearings, Square Taper
• Chain: KMC Z410RB w/ Anti-Corrosion Coating
• Cassette: Shimano Nexus Cog, 19T
• Brakes Front: Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
• Brakes Rear: Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
• Brake Levers: Shimano Hydraulic
• Handlebar: Marin Alloy Flat
• Stem: Marin Alloy
• Grips: Dual Density Ergonomic
• Headset: FSA No.8B
• Seatpost: Marin Alloy, 27.2mm
• Saddle: Marin Fitness Plush
• Pedals: Commute Platform
