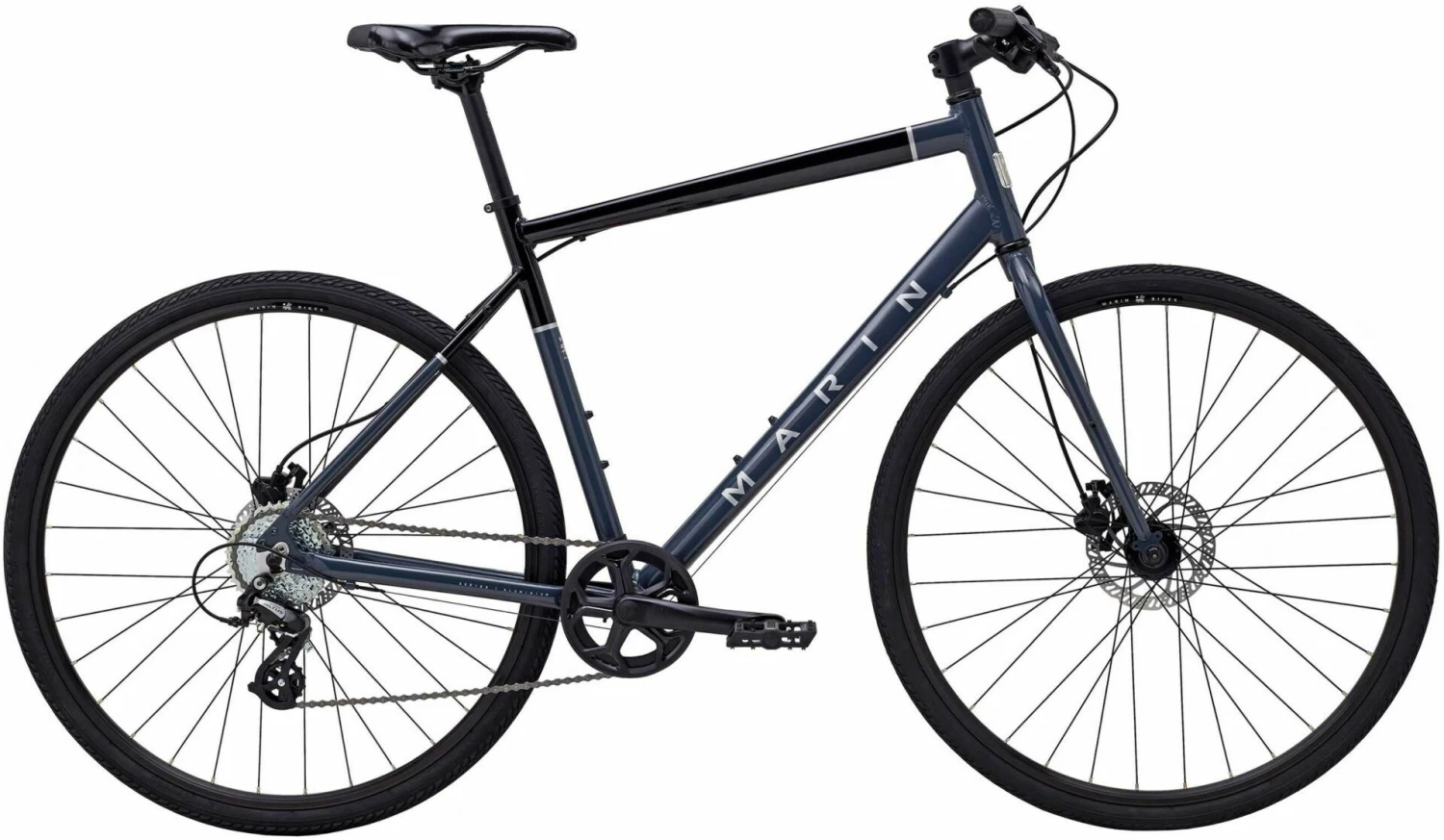

Marin Presidio 1 2023 Bike

The Presidio is our dedicated commuting range, designed with low maintenance and adaptability in mind. Disc brakes, puncture resistant tyres and high performance belt drives or corrosion-resistant chains are built tough for city streets, while the lightweight aluminum frames feature all of the attachment points and braze-ons that commuters demand.

Features

• Commuting
• City transit

Technologies

• Lightweight Aluminum Frames: Presidio frames are constructed of lightweight 6061 aluminum tubing with internal cable routing, and rack and fender mounts.
• Marin Slider Dropouts: Our new slider dropouts were created specifically to bring the best technologies for commute bikes into a clean and tidy package. The dropouts slide to tension belts and chains, while incorporating flatmount disc brakes, and a direct mount rear kickstand to support the bike where weight is centered with gear.
• Disc Brakes: Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

Specifications

Frame and Forks

• Frame: Series 1 Fitness, 6061 Aluminum, 700c Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts
• Forks: Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
• Headset: FSA No.8B

Drivetrain

• Crankset: Forged Alloy, 38 Tooth, Ring Guard
• Bottom Bracket: Sealed Cartridge Bearings, Square Taper
• Rear Derailleur: Shimano Altus
• Cassette: Sunrace 8-Speed 11-34 Tooth
• Chain: KMC Z8

Braking / Shifting

• Shifters: Microshift TS39, 8-Speed, Thumb-Tap
• Front Brake: Tektro HD-M275 Hydraulic Disc, 160mm Rotor
• Rear Brake: Tektro HD-M275 Hydraulic Disc, 160mm Rotor
• Brake Levers: Tektro Hydraulic

Wheels

• Rims: Marin Aluminum Double Wall, Disc Specific
• Front Hub: Forged Aluminum Alloy, Disc, 32 Hole
• Rear Hub: Forged Aluminum Alloy, Disc, 32 Hole
• Spokes: 14g Stainless Steel
• Tyres: Marin Fitness 700c x 35mm Reach

Finishing Kit

• Handlebars: Marin Alloy Flat
• Grips: Marin Commute
• Stem: Marin Alloy
• Seatpost: Marin Alloy, 27.2mm Diameter
• Saddle: Marin Fitness Plush
• Pedals: Commute Platform
