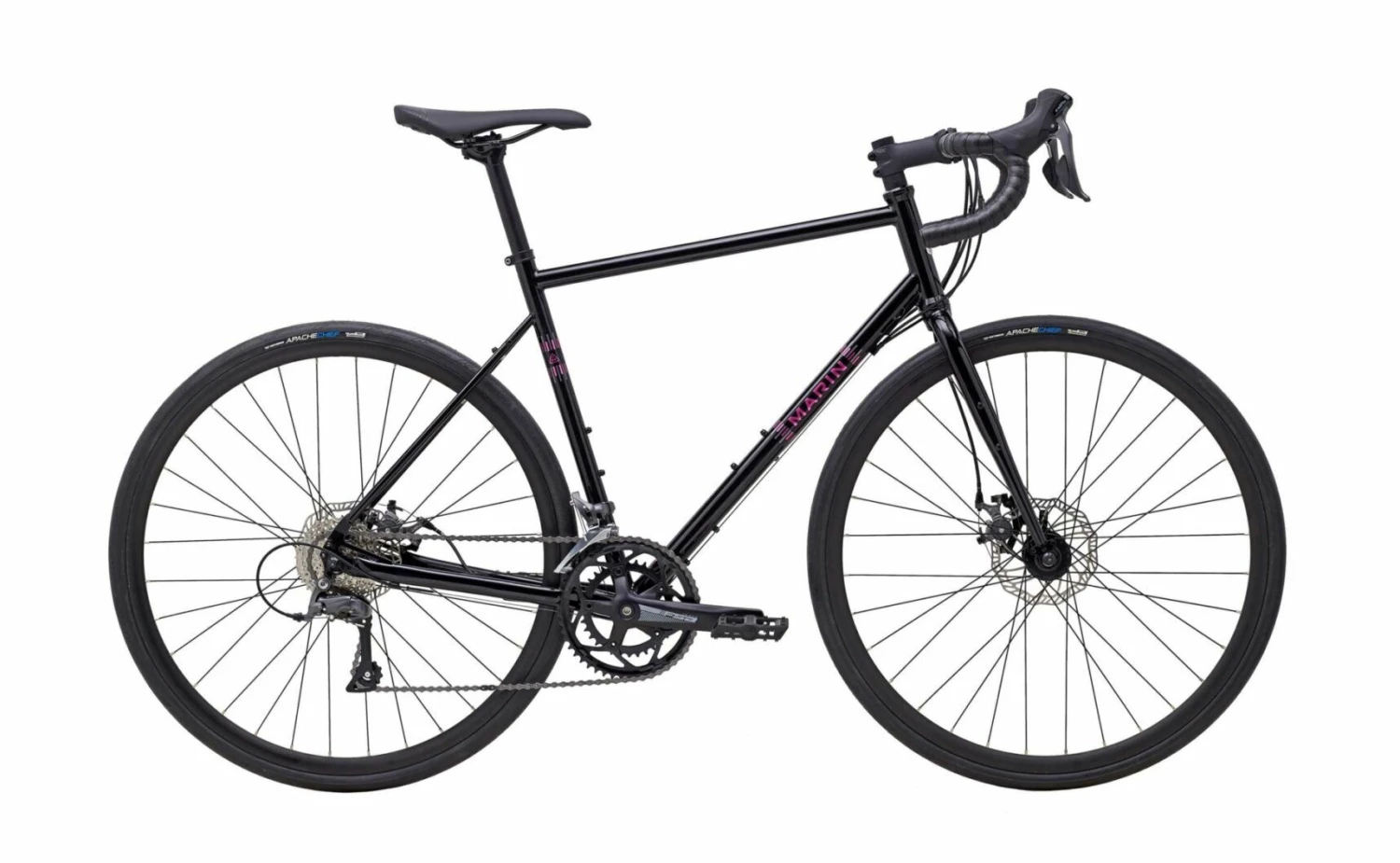

Marin Nicasio 2023 Bike

The Nicasio is for the rider looking for something different and modern, yet with traditional steel construction.
Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm-40mm or 650B x
47mm tires to let riders handle any surface.

Specifications

Frame and Forks

• Frame: Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc
  Mount
• Forks: CrMo, Fender and Rack Eyelets, IS Disc Mount

Drivetrain

• Front Derailleur: Shimano Claris
• Rear Derailleur: Shimano Claris 8-Speed
• Cassette: SunRace 8-Speed, 11 x 32 Tooth
• Chain: KMC Z-8.3
• Crankset: FSA Tempo Compact, 50 / 34 Tooth
• Bottom Bracket: Sealed Cartridge Bearings, Square Taper

Braking/Shifting

• Shifters: Shimano Claris 2 x 8 Speed
• Brake Levers: Shimano with Integrated Shifters
• Brakes: Promax Render R Road Mechanical Disc, 160mm Rotor

Wheels

• Rims: Marin Aluminum Double Wall, 19mm Inner, Disc Specific
• Hubs: Forged Aluminum Alloy, 32 Hole
• Spoke: 14g Black Stainless Steel
• Tyres: Vee Tire, Apache Chief, 700c x 30, Wire Bead

Finishing Kit

• Handlebar: Marin Butted Alloy, Compact 12º Flared Drop
• Stem: Marin 3D Forged Alloy
• Seatpost: Marin Alloy, 27.2mm
• Saddle: Marin Beyond Road Concept
• Pedals: Commute Platform
