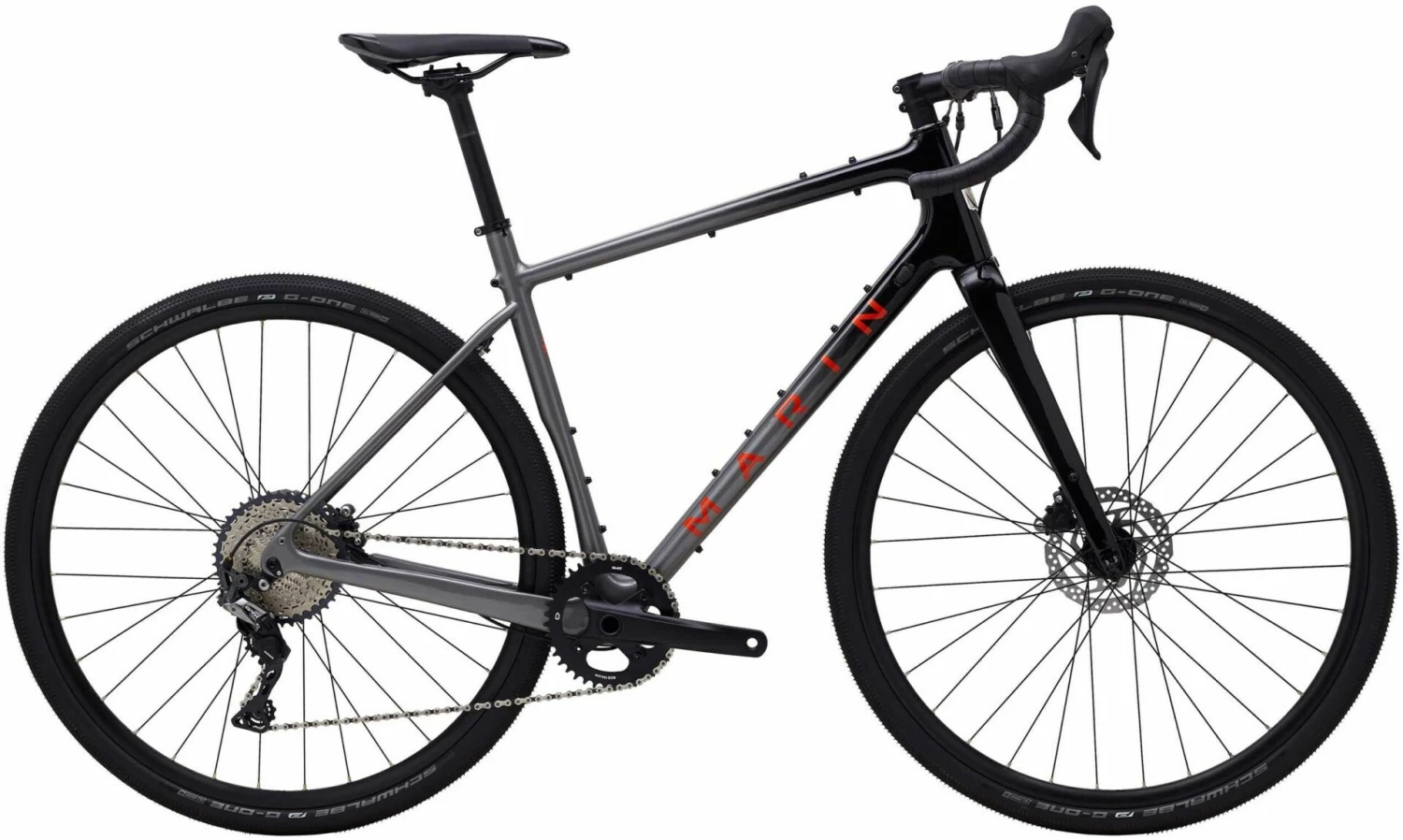

Marin Headlands 1 2023 Bike

The Headlands takes what we have learned with the alloy Gestalt X line, and brings the spirit to an all-new, full carbon fiber frameset. Modern geometry, generous tyre clearance, and sublime ride quality, all combine to make an incredibly capable, lightweight bike that’ll exceed your expectations.

Features

• Adventure on and off-road riding
• Long distance commuting
• Gravel riding

Technologies

• Unidirectional Carbon Fiber Frame: The Headlands has a unidirectional carbon fiber frame designedto meet the demands of modern gravel and endurance riders andracers with large tyre clearance, a 142 x 12mm thru-axle, and multipleframe eyelets for customized hydration and framebag needs.
• Tyre Clearance: The Headlands was designed with clearance for up to 700c x 45mm or 650b x 50mm tyres to handle even the roughest “roads.”
• Internal Dropper Compatibility: The Headlands features a seat tube port for internal dropper routing,with the Headlands 2 coming stock with a 105mm / 85mm dropper post.
• Removable Seatstay Brace: The removable seat stay brace makes it super easy to add fenders for foul weather riding and commuting, while maintaining a cleansmooth look when you don’t need the coverage.

Specifications

Frame and Forks

• Frame: Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm / 650b x 50mm Compatible, Flat Mount Disc, 142 x 12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
• Forks: Marin Full Carbon with Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
• Headset: FSA Orbit IS, Sealed Cartridge Bearings, 1-1/8″ x 1-1/2″

Drivetrain

• Crankset: Forged Alloy 1 x 11, Hollow Chromoly Spindle, Narrow Wide, 40 Tooth
• Bottom Bracket: External Sealed Cartridge Bearings
• Rear Derailleur: Shimano GRX Shadow with Clutch
• Cassette: Shimano CS-M7000 11-42 Tooth
• Chain: KMC X11

Braking / Shifting

• Shifters: Shimano GRX RX600
• Front Brake: Shimano GRX Hydraulic Disc, 160mm Rotor
• Rear Brake: Shimano GRX Hydraulic Disc, 160mm Rotor
• Brake Levers: Shimano GRX Hydraulic with Shifter

Wheels

• Rims: Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
• Front Hub: Forged Aluminum Alloy, 32 Hole
• Rear Hub: Forged Aluminum Alloy, XD Driver, 32 Hole
• Axles: Includes Bolt-On Thru-Axles Front and Rear
• Spokes: 14g Black Stainless Steel
• Tyres: Schwalbe G-One Performance, 700c x 40mm, Folding Bead

Finishing Kit

• Handlebars: Marin Butted Alloy, Compact 12º Flared Drop, Flat Top
• Grips: Marin Shock Absorbing Tape
• Stem: Marin 3D Forged Alloy
• Seatpost: Marin Alloy, 27.2mm Diameter
• Saddle: Marin Beyond Road Concept
• Pedals: Commute Platform
