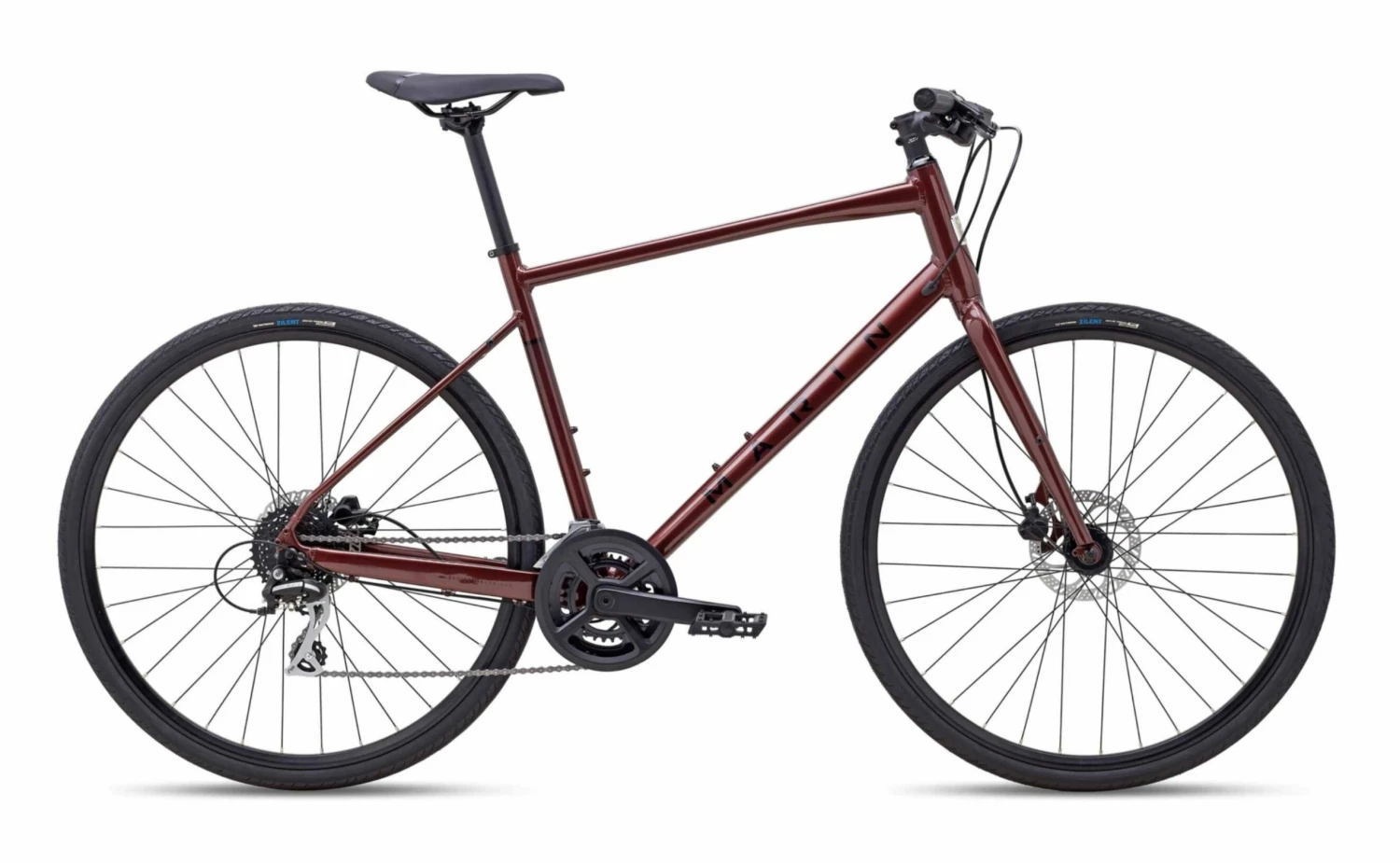

Marin Fairfax 2 2023 Bike

The Fairfax and Terra Linda make up our Fitness line, built for the flat-bar fitness road rider with the accessory
mounts and gear range for future upgrades.

Technology

Series 2 Frame

Series 2 frames feature a 6061 aluminum frame with disc brake mounts, integrated headsets, internal cable routing,
and fender and rack mounts. Series 1 frames also feature 6061 aluminum tubing, disc brake mounts, and fender and
rack mounts.

Disc Brakes

Disc brakes on all Fairfax models provide smooth, controlled stopping in all conditions with minimal maintenance.

Specifications

Frame and Forks

• Frame: Series 2 Fitness, 6061 Aluminum, 700c Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts
• Forks: 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
• Headset: FSA, No.8B

Drivetrain

• Crankset: Forged Alloy Crank, 46 / 30 Tooth, Ring Guard
• Bottom Bracket: Sealed Cartridge Bearings, Square Taper
• Front Derailleur: Shimano TY710
• Rear Derailleur: Shimano Acera, 8-Speed
• Cassette: SunRace 8-Speed, 11-34 Tooth
• Chain: KMC Z8

Braking/Shifting

• Shifters: Shimano Altus 2 x 8-Speed
• Front Brakes: Tektro M275 Hydraulic Disc Brake
• Rear Brakes: Tektro M275 Hydraulic Disc Brake
• Brake Levers: Tektro Hydraulic

Wheels

• Rims: Marin Aluminum Double Wall, Disc Specific
• Front Hub: Forged Aluminum Alloy, Disc, 32 Hole
• Rear Hub: Forged Aluminum Alloy, Disc, 32 Hole
• Spokes: 14g Stainless Steel
• Front Tyre: Vee Tire, Zilent, 700 x 35c, Puncture Protection, Wire Bead
• Rear Tyre: Vee Tire, Zilent, 700 x 35c, Puncture Protection, Wire Bead

Finishing Kit

• Handlebars: Marin Alloy Flat
• Grips: Marin Ergonomic Locking
• Stem: Marin 3D Forged Alloy
• Seatpost: Marin Alloy, 27.2mm
• Saddle: Marin Fitness Plush
• Pedals: Fitness Platform
