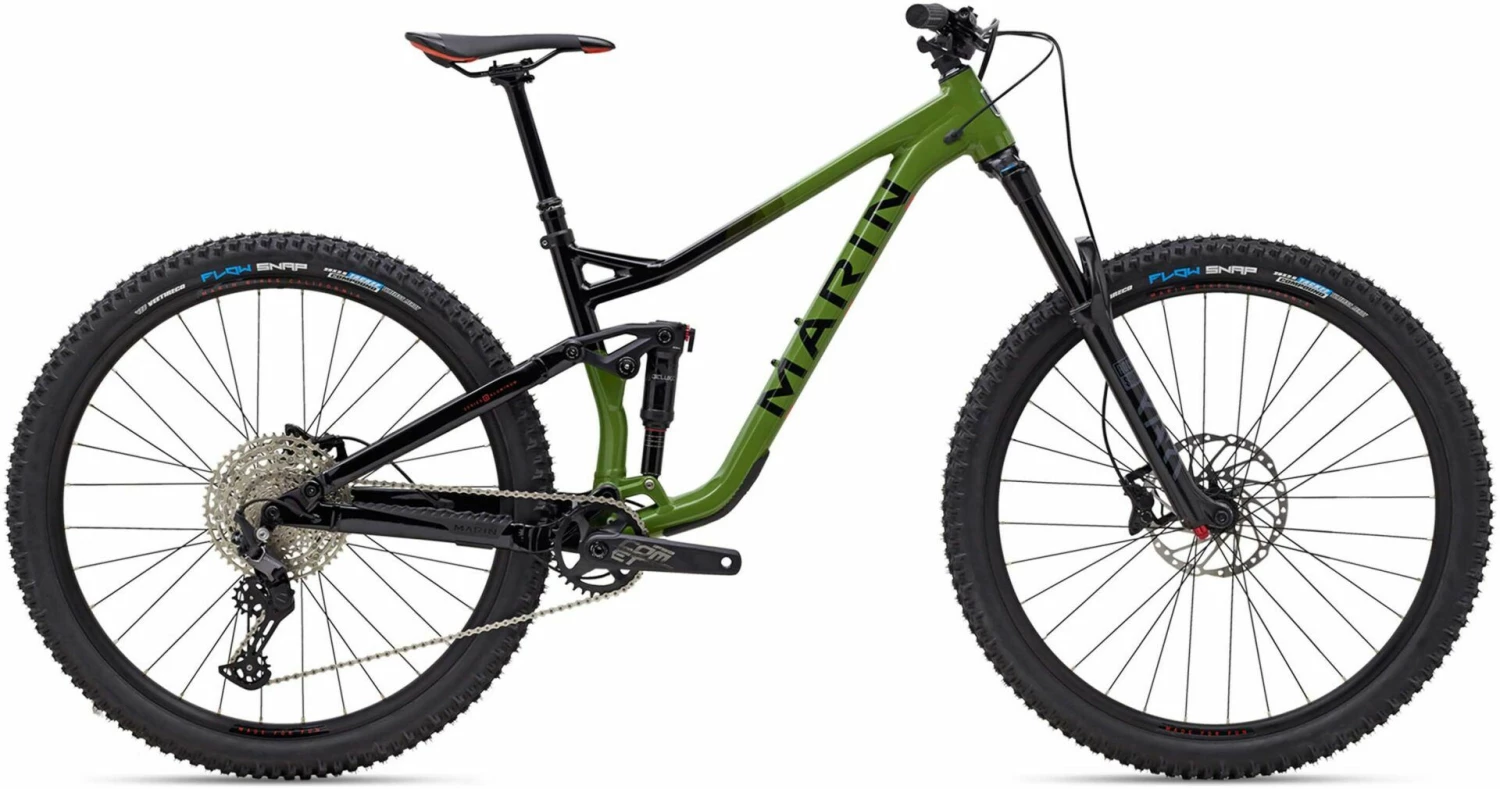

Marin Alpine Trail 7 2023 Bike

The Alpine Trail is a 29″ wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.

Features

• Big all-mountain days where travel and geometry matter most
• Built for abuse and rowdy riding
• Enduro-style riding and racing
• Big bike, big wheels, big fun

Technologies

• Series 4 Aluminum Frame: Alpine Trail models feature Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.
• One Piece Forged Rocker: The heart of the Alpine Trail’s MultiTrac suspension is the forged one-piece rocker link. The strength and stiffness of the rocker keeps the rear of the bike tracking straight, providing smooth suspension operation under the most demanding conditions.
• Bridgeless Seatstay: The stiffness of the one-piece rocker link allows for a bridgeless seatstay design, offering zero compromises on stiffness while at the same time allowing for maximum tyre clearance and short chainstays.
• Modern Angles: The Alpine Trail has a slack 63.5º head tube angle paired with a steep 78º seat tube angle and long reach to provide the best modern trail bike experience. The bike lets you climb better than ever before, while giving you even more confidence when descending.

Specifications

Frame and Forks

• Frame: Series 4 6061 Aluminium, 29″ Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148 x 12mm Boost Thru- Axle, 73mm Threaded Bottom Bracket ISCG05 Tabs
• Forks: RockShox Yari RC, 29″, 160mm Of Travel, Air Sprung, Debonair, Compression and Rebound Adjustment, Fast Black Stanchions, 110 x 15mm Maxle Stealth, 42mm Offset
• Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1-1/8″ x 1-1/2″
• Rear Shock: Rock Shox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression and Rebound Adjustment, 205 x 65mm Trunnion Upper Mount, 25mm x M8 Lower Mount

Drivetrain

• Crankset: FSA Comet Heavy Duty, Modular 1x, 32 Tooth Direct Mount Chainring, MegaTooth Technology, Boost Spacing
• Bottom Bracket: Mega EXO 73mm BSA
• Rear Derailleur: Shimano Deore, 12-Speed, SGS
• Cassette: Shimano, Deore M6100 12-Speed, 10-51 Tooth
• Chain: KMC X-12 Silver and Black

Braking / Shifting

• Shifters: Shimano Deore, 12-Speed, SL-7100R
• Front Brake: Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
• Rear Brake: Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
• Brake Levers: Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

Wheels

• Rims: Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32 Hole, Tubeless Compatible
• Front Hub: Shimano HF-MT410B, 110 x 15mm Axle Spacing, Centerlock
• Rear Hub: Shimano HB-MT410B, 148 x 12mm Axle Spacing, Centerlock, Microspline Freehub Body
• Spokes: 14g Black Stainless Steel
• Tyres: Vee Flow Snap, 29 x 2.6″, Tackee Compound, 72 Threads Per Inch, Tubeless Compatible

Finishing Kit

• Handlebars: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• Grips: Marin Single Clamp Locking
• Stem: Marin 3D Forged Alloy, 35mm Reach
• Seatpost: TranzX YSP23JL, 1x Remote, Small 125mm Travel, Medium & Large 150mm Travel and X-Large 175mm Travel, 30.9mm Diameter
• Saddle: Marin Speed Concept
• Pedals: None

Extras

• Downtube Protector
