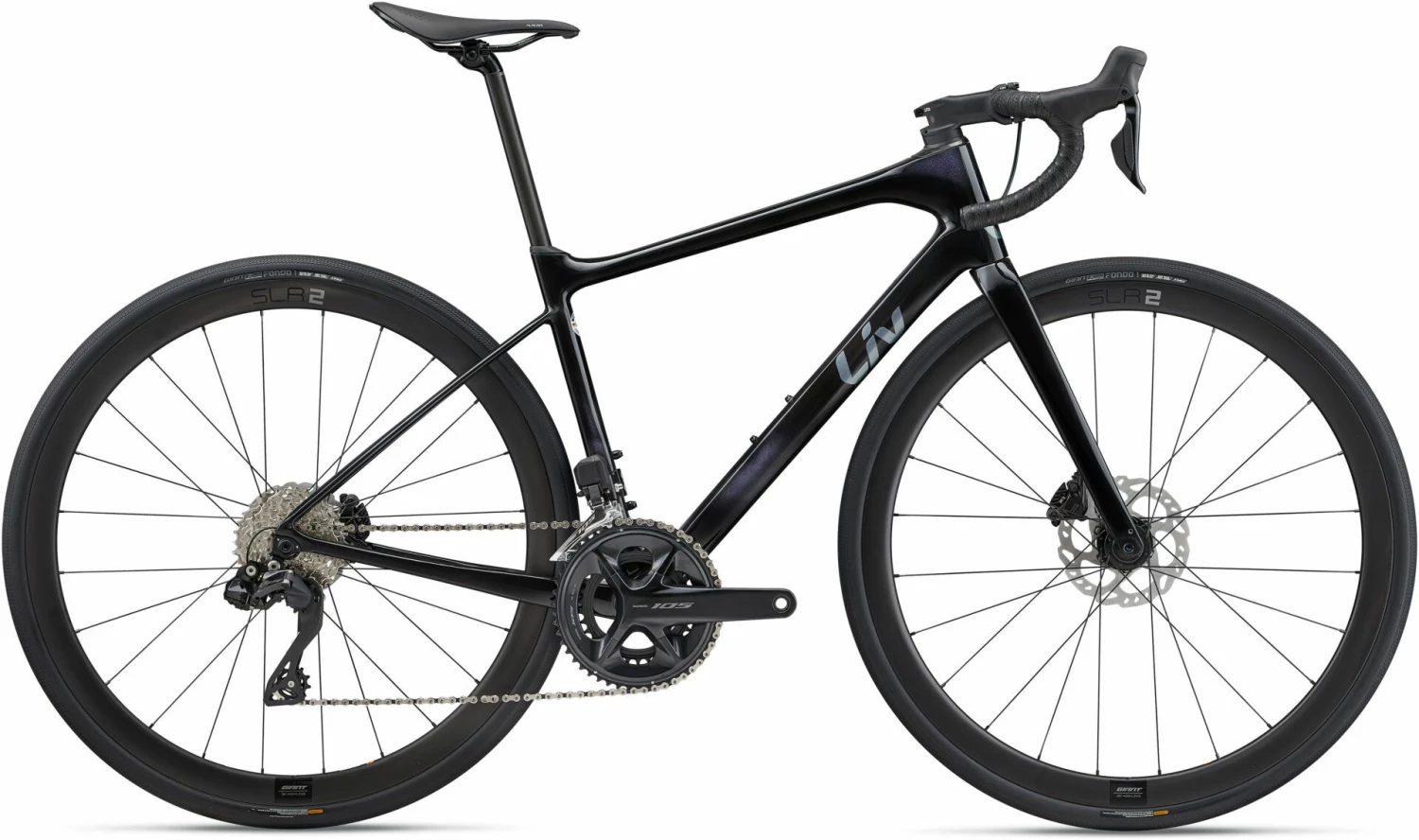

Liv Avail Advanced Pro 2 2023 Bike

Ideal for both epic solo adventures and group road rides, the Avail Advanced Pro is lightweight and comfortable.

Key Performance Factors

Built for Endurance

Advanced-Grade Composite and OverDrive 2 provide unprecedented pedaling and cornering stiffness on an endurance
geometry for all-day riding.

Control

Combines the weight-savings and stability of a compact road frame design with powerful disc brakes for expert
handling and control, no matter the weather and road conditions.

Adaptable Comfort

The Avail tackles the roads less traveled with larger-size tire compatibility and a D-Fuse seatpost to soak up bumps.

Technologies

Advanced Composite Technology

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using
state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer
light weight and stiffness with optimal compliance.

Compact Road Design

When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes
forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for
a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

D Fuse Seatpost

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

Internal Seatpost Clamp

A lightweight, all-internal seatpost locking mechanism provides confident clamping force with clean performance and
aesthetics.

Over Drive 2

The most advanced steerer tube technology in today’s Liv and Giant bikes. Designed to offer unprecedented front-end
steering performance, the system’s oversized headset bearings (1 1/2″ lower, 1 1/4″ upper) and tapered steerer tube
work in harmony to provide supreme steering stiffness.

Ride Sense

Liv and Giant’s chainstay-integrated, wireless data transmitter. The removable transmitter sends wheel speed and
cadence information directly to any ANT+ compatible computer.

Tubeless System

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System
makes it easier than ever to experience all these benefits.

Specifications

Frame and Forks

• Frame: Advanced-Grade Composite, 12 x 142mm Thru-Axle
• Forks: Advanced-Grade Composite, Full-Composite OverDrive 2 Steerer, 12 x 100mm Thru-Axle

Drivetrain

• Crankset: Shimano 105 34/50
• Bottom Bracket: Shimano, Press Fit
• Rear Derailleur: Shimano 105 Di2
• Front Derailleur: Shimano 105 Di2
• Cassette: Shimano 105 11x34T
• Chain: KMC X12

Braking/Shifting

• Shifters: Shimano 105 Di2 2 x 12
• Brakes: Shimano 105 Di2 Hydraulic Disc Brakes 160/140 Rotors
• Brake Levers: Shimano 105

Wheels

• Rims: Giant SLR2 36 Disc WheelSystem 22mm (Inner Rim Width)
• Hubs: [F] Giant Alloy, CenterLock, 12mm Thru-Axle, [R] Giant Alloy, 3-Pawl Driver, CenterLock, 12mm Thru-Axle
• Spokes: Sapim Sprint
• Tyres: Giant Gavia Fondo 1 Tubeless, 700 x 32c, (Effective Width 33.5mm) 60 Tpi, Folding

Finishing Kit

• Handlebars: Liv Contact SL D-Fuse
• Grips: Liv All Condition
• Stem: Giant Contact SL, OD2
• Seatpost: Giant D-Fuse SL Composite
• Saddle: Liv Alacra SL CS
• Pedals: Not Included

Extras

• Chainguard: Compatible With RGX 38 Fender (Sold Separately)
• Includes: RideSense Bluetooth/ANT+, Computer Mount, Factory Tubeless Set Up Including Sealant, 35mm Max Tyre
  Size
