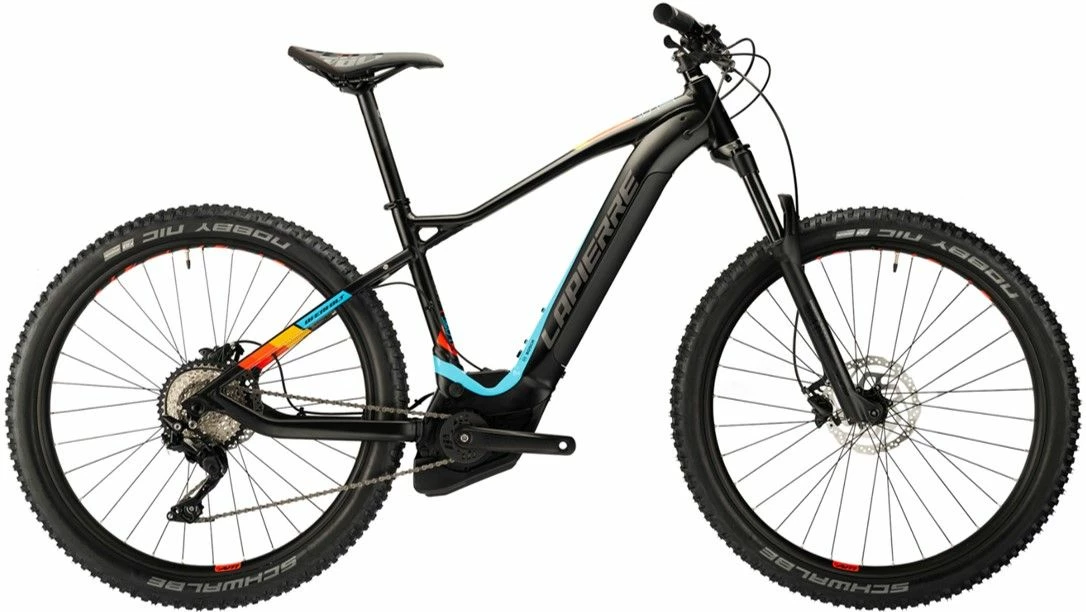

Lapierre Overvolt HT 9.5 2021 Electric Bike

Electrify Your Ride

Our Overvolt hardtail serves as the entry-level model of our line of electric mountain bikes. The 120 mm of clearance
in front provide the bike with a natural balance and ensure excellent steering control in turns, as well as
effective damping of all powerful shocks. The motorization functionality has been subcontracted to Yamaha for a
gradual and gentle assistance. The Overvolt HT is an accessible and reassuring bike designed to take full advantage
of your week-end trips!

Features

Frame and Forks

• Frame: Overvolt Integrated Bosch Supreme 5 Alloy Boost
• Fork: Rockshox Judy Silver Turnkey 15 x 110mm 27.5” 120mm Travel
• Headset: FSA Orbit 1.5 ZS No.57Sc

Drivetrain

• Rear Derailleur: Shimano Deore KRDM6000GS 10S
• Crankset: Lapierre Overvolt Bosch Wide Narrow 16T 170mm
• Sprocket: Shimano HG500 10S 11-42T
• Chain: Shimano HG54

Braking/Shifting

• Brakes: Shimano AMT200 Hydraulic
• Discs: Shimano SMRT10 180mm/180mm
• Brake levers: Shimano Deore SLM6000 1×10

Wheels

• Front hub: Shimano MT400 Thru Axle
• Rear hub: Shimano MT400 Thru Axle
• Rims: Lapierre Eam+ 32H 584-35c
• Tires: Schwalbe Nobby Nic Performance Line Addix 27.5 x 2.6

Finishing Kit

• Handlebar: Lapierre 6061DB W: 740mm R: 15mm Ø: 31.8mm
• Grips: Lapierre DD34 Lock-On
• Stem: Lapierre Alloy Ø: 31.8mm L: 50mm
• Seatpost: Lapierre Alloy Ø: 31.6mm L: 350mm
• Saddle: Lapierre by Velo
• Pedals: VP VPE-527

Electric Power

• Motor/Battery/Display: Bosch Performance CX (Gen2) 500WH Powertube Purion
