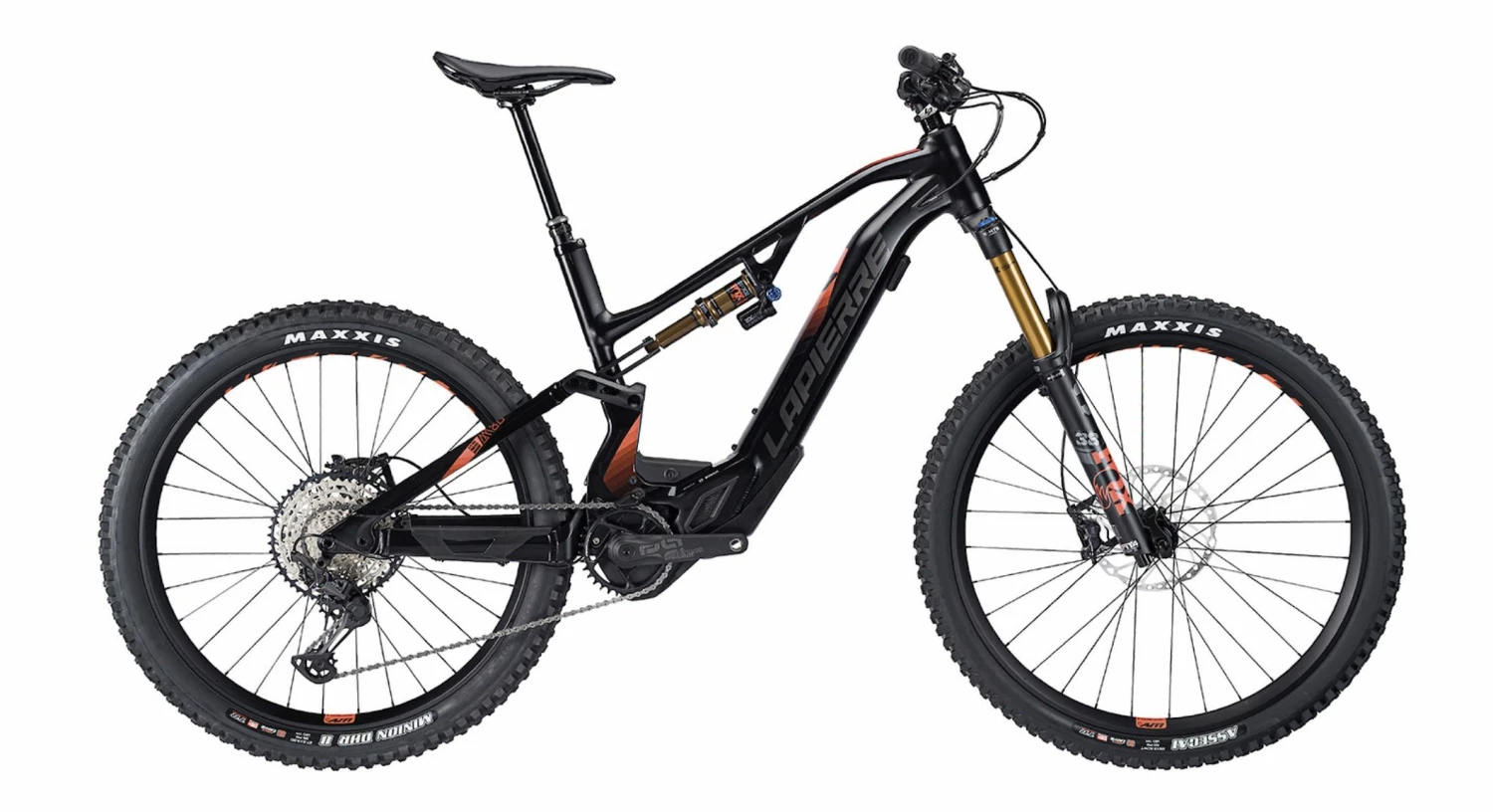

Lapierre Overvolt AM 8.6 29-Inch 2021 Electric Bike

Climb mountains while enjoying the scenery. Ride brilliant downhill routes while concentrating purely on the
landscape. That’s what the Overvolt AM 8.6 offers. It can cross mountains and redefine your limits. With 150 or 160
mm of clearance, you can tackle the most technical paths thanks to an electrical mountain bike developed with a
centralised and lower centre of gravity. The result is a dream to ride and boundless pleasure.

Key Features

All Mountain Supreme 5 Aluminium Frame

Our OVV AM 8.6 frame in Supreme 5 aluminium retains rear clearance of 160mm, 29”/27.5” differentiated wheels and the
perfectly integrated fourth-generation Bosch drive unit. But it has been updated with a new rear triangle
integrating the speed sensor and a new UDH (universal derailleur hanger).

Fox Float Factory DPX2 Suspension

To optimise the suspension efficiency and output of our OVV AM 8.6, we opted for the Fox Float Factory DPX2 shock
absorber for its dual piston system and multiple compression adjustment points. The rigidity and adjustment accuracy
of the Fox 38 Float Factory 29” fork creates a coherent, efficient assembly.

Shimano XT Four-Piston Brakes

For our top-of-the-range model, we have opted for the Shimano XT brakes with their four-piston toe pieces and 203mm
discs. Here, power meets an exceptional touch and ideal progressiveness to modulate your braking.

Specification

Frame and Forks

• Frame: Overvolt 160mm Integrated Bosch Supreme 5 Alloy Boost + New Rear Triangle (Udh Dropout + Integrated
  Sensor)
• Fork: Fox 38 Float Factory 29″ Boost 15mm x 110mm 160mm Travel 44mm Offset / 3 Pos Lever
• Shock: Fox DPX2 Factory Kashima Trunnion

Drivetrain

• Rear Derailleur: Shimano Deore XT 12 speed
• Chain: Shimano Deore 12s
• Sprocket: Shimano SLX 10–51T

Braking/Shifting

• Shifter Lever: Shimano SLX 12s
• Brakes: Shimano FT:SMRT64 203mm RR: RTEM600 With Magnet 203mm
• Brake Levers: Shimano XT 4 pistons

Wheels

• Rims: Lapierre eAM+ Alloy 32H Front: 622 x 33c J-bend / Rear: 584 x 35c J-bend
• Front Hub: Shimano MT400 Boost Thru Axle 32H
• Rear Hub: Shimano MT400 Boost Thru Axle
• Tyres: Maxxis FT: 29 x 2.5 Assegai Exo+ 3C Maxterra / RR: 27.5 x 2.8 Minion DHR II Exo+ 3C Maxterra Tready
• Spokes:

Finishing Kit

• Handlebar: Lapierre Alloy 6061DB Ø: 31.8mm W: 760mm R: 15mm (S/M) W: 780mm R: 30mm (L/XL)
• Grips: Lapierre Grips S/M: Small Diameter L/XL: Large Diameter
• Headset: FSA NO.55R/57E, Anod black 1-1/8″-1.5″
• Stem: Lapierre Alloy Ø: 31.8mm L: 50mm (S, M, L, XL)
• Seatpost: JD Dropper “Rad Travel Adjust “ 125(S), 150(M), 170 (L, XL)
• Saddle: Lapierre by Velo
• Pedals: VP VPE-527

Electronics

• Motor: Bosch Performance CX Gen4
• Battery Watts per Hour: 625Wh
