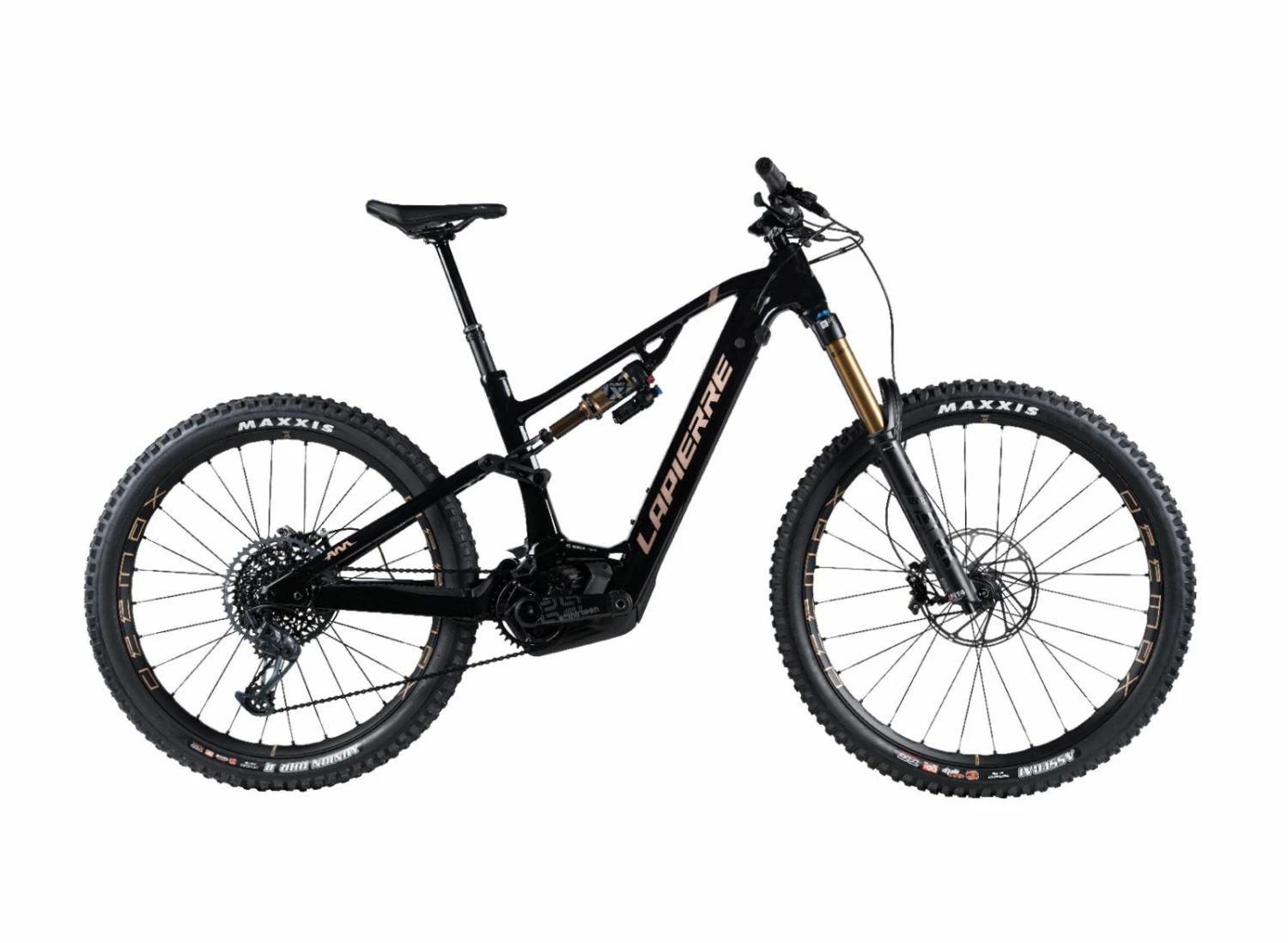

Lapierre Overvolt AM 75th 2022 Electric Bike

The Overvolt AM 75th celebrates the 75th anniversary of the brand. This eBike is a genuine master key for the
mountains: at ease both climbing and descending. Its aluminium frame has been redesigned for a better integration of
the Bosch Performance Line CX Gen4 Smart System motor and the new Bosch PowerTube 750Wh battery. The cables and
hydraulic hoses have also been integrated for a perfect finish. For this anniversary edition we have chosen the most
prestigious components to make this bike unique.

Technology

Bosch Smart System

The Bosch Performance Line CX Gen4 Smart System motor and the new Bosch PowerTube 750Wh battery allow you to push the
limits. With its huge torque level of 85Nm the system isn’t afraid of the steepest slopes combined with the 750Wh
battery to offer impressive range.

Mavic E-Deemax S Wheelset

Designed and built according to the specific requirements of modern eBikes, the Mavic E-Deemax S wheelset have a
larger contact point between the surface of the rim and the tyre which reduces the risk of cutting the tyre and
punctures significantly. Their wheel specific width of 30mm for the front and 35mm for the rear guarantees comfort,
efficiency, and precision for the rider.

SRAM X01 Eagle 12-Speed Groupset

The SRAM X01 Eagle 12 speed groupset assures a fast and precise gear change no matter what the conditions. The rear
derailleur limits unwanted chain movement, helping to avoid mis-shifts and fluidify the transmission for a
noticeable improvement in efficiency.

Specifications

Frame and Forks

• Frame: New Overvolt 160mm Travel Integrated Bosch Supreme 5 Alloy (UDH Dropout)
• Forks: Fox 38 Float Performance 29” 15 x 110, 170mm Travel, 44mm Offset / 3-Position Lever
• Shock Absorber: Fox Float X Performance 230 x 60mm 2-Position Lever
• Headset: FSA NO.55R/57E, Anodised Black 1-1/8″-1.5″

Drivetrain

• Crankset: E13 E-Spec+ Carbon 160 (S/M) / 165mm (L/XL) + SRAM Eagle Steel Ring 34 Tooth
• Rear Derailleur: SRAM X01 Eagle, 12-Speed
• Sprocket: SRAM XG1275 Eagle 10-52 Tooth
• Chain: SRAM XX1 Black Eagle Powerlock 12-Speed

Braking/Shifting

• Shifters: SRAM X01 Single Click Eagle 12-Speed
• Front Brake: SRAM Centerline 220mm / 200mm 6 Bolts
• Brake Levers: SRAM Code RSC 4 Pistons

Wheels

• Wheelset: Mavic E-DEEMAX S 75th Front: 622×30, Rear: 584 x 35 XD Driver Tubeless Ready
• Tyres: Maxxis, Front: 29″ x 2.5″ WT Assegai, 60TPI, EXO+, 3C MaxxGrip, TR / Rear: 27.5″ x 2.8″ Minion DHR II
  60TPI, EXO+, 3C Maxxterra, TR

Finishing Kit

• Handlebars: Race Face SIXC Carbon W: 785mm R: 19mm Ø: 31.8mm
• Grips: Lapierre Grips S/M: Small Diameter L/XL: Large Diameter
• Stem: Lapierre CNC Ø: 31.8mm L: 40mm (S,M) 45mm (L,XL)
• Seatpost: JD Dropper “Rad Travel Adjust” Ø: 31.6mm Travel: 125mm(S) 150mm(M) 170mm (L/XL)
• Saddle: Fizik Terra Aidon X3 145mm
• Pedals: VP VPE-527

Electric Power

• Motor: Bosch Performance Line CX Gen 4 750Wh PowerTube / LED Remote + KIOX 300
• Battery Watts Per Hour: 750Wh
• Display: LED Remote + KIOX 300

Extras

• Accessories: Bosch Charger 4A / Thru Axle Multitool Lever
