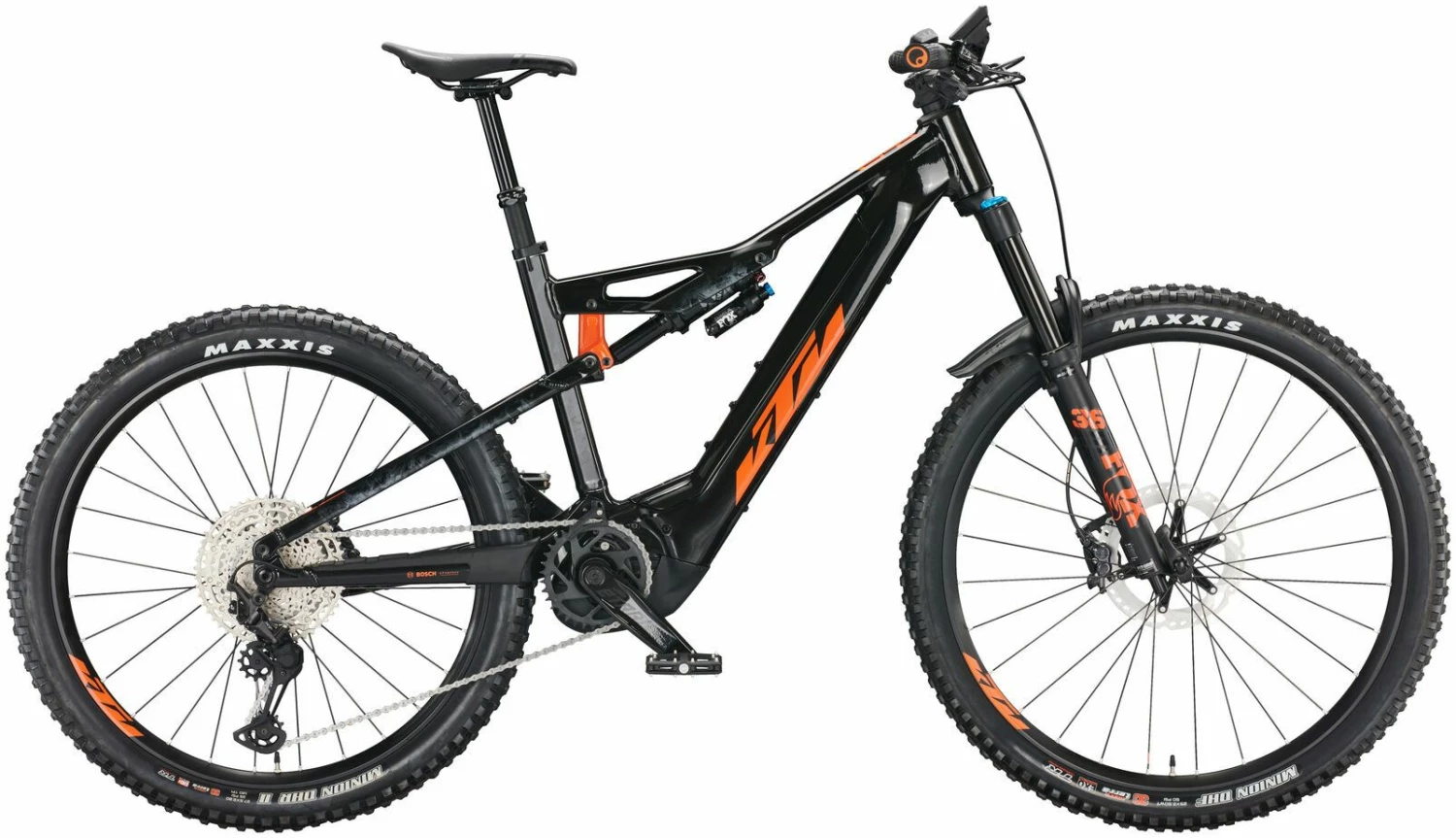

KTM Macina Kapoho 7971 2022 Electric Bike

Uphill. Downhill. Why Not Both?

The mere thought of the breath-taking view from the top of the mountain and the subsequent descent down to the valley
is enough to get your heart racing? Then the Macina Kapoho with 160mm of travel is the bike you need. Whether carbon
or aluminium frame, all models are fitted with the proven DiMMiX tyres: 29″ wheel at the front for optimum riding
stability paired with the 27,5″ plus tyres at the rear for best power transmission and traction, show all its
advantages in difficult terrain. The heart of these bikes is a newly developed frame, in combination with the proven
Straight-Line-Link (SLL) concept and the new Bosch Smart System. With this self-contained Bosch system, easily
recognisable by the new control unit, you are ready for the digital future. The system also includes the Kiox 300
display, the Bosch Performance Line CX motor, a 4A charger and the most powerful Bosch PowerTube battery ever
(750Wh) for even more range. In addition, the E-Bike Flow app opens the door to the connected world and connects you
with your bike. Thanks to the masterful work of our engineers, the proven KTM frame geometry has been retained
despite the new increase in battery size and capacity. Removing and reinserting the battery is easier than ever
before. Power Tube Top Loader (PTTL) is the name of KTM’s own innovation for this user-friendly battery handling.

Specification

Frame and Forks

• Frame: Macina Kapoho Dimmix Alloy 6061 SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2266
• Forks: Fox 36 Float 29″ Performance E-Bike 160mm
• Headset: Acros AICR Internal 1.1/8≫1.5″ Angle Limit
• Rear Shock: Fox Float X Performance 250×70

Drivetrain

• Crankset: KTM Trail ISIS 160mm Q16
• Chainrings: FSA Megatooth Steel 36 Tooth 12-Speed Direct Mount
• Rear Derailleur: Shimano Deore XT M8100-12 SGS Shadow+
• Sprocket: Shimano Deore M6100-12 / 10-51T
• Chain: Shimano M6100-12

Braking/Shifting

• Shifters: Shimano Deore M6100-12
• Brakes: Shimano Deore XT M8100 / M8120 4-Piston
• Rotor: Shimano MT800 CL 203 / EM810 CL 180 Freeza

Wheels

• Front Wheel: KTM E-Comp Trail 29 CL 110/15TA / 622 x 30TC Made By DT Swiss
• Rear Wheel: KTM E-Comp Trail 27 CL 148/12TA / 584 x 35TC Made By DT Swiss
• Front Tyre: Maxxis Minion DHF 3C-MaxxTerra / EXO / TR 63-622
• Rear Tyre: Maxxis Minion DHR II 3C-MaxxTerra / EXO / TR 70-584

Finishing Kit

• Handlebars: KTM Team Trail35 Rizer25 800mm
• Grips: Ergon GE10 Evo Ergonomic
• Stem: KTM Team Trail35
• Seatpost: Fox Transfer Performance Internal
• Saddle: Selle San Marco GND Supercomfort
• Pedals: MTB-Pedal Flat VP-539 Nylon

Electronics

• Motor: Bosch Performance CX Gen.4 Smart System – 25km/H / 85Nm, Bosch PT-CX7K4
• Battery: Bosch PowerTube 750Wh Hor. Smart System
• Charger: Bosch Standard Charger 4A Smart System
• Display: Bosch Kiox TFT Display Smart System

More Info

• Permissible Total Weight: 146Kg
• Weight: 27.4Kg
