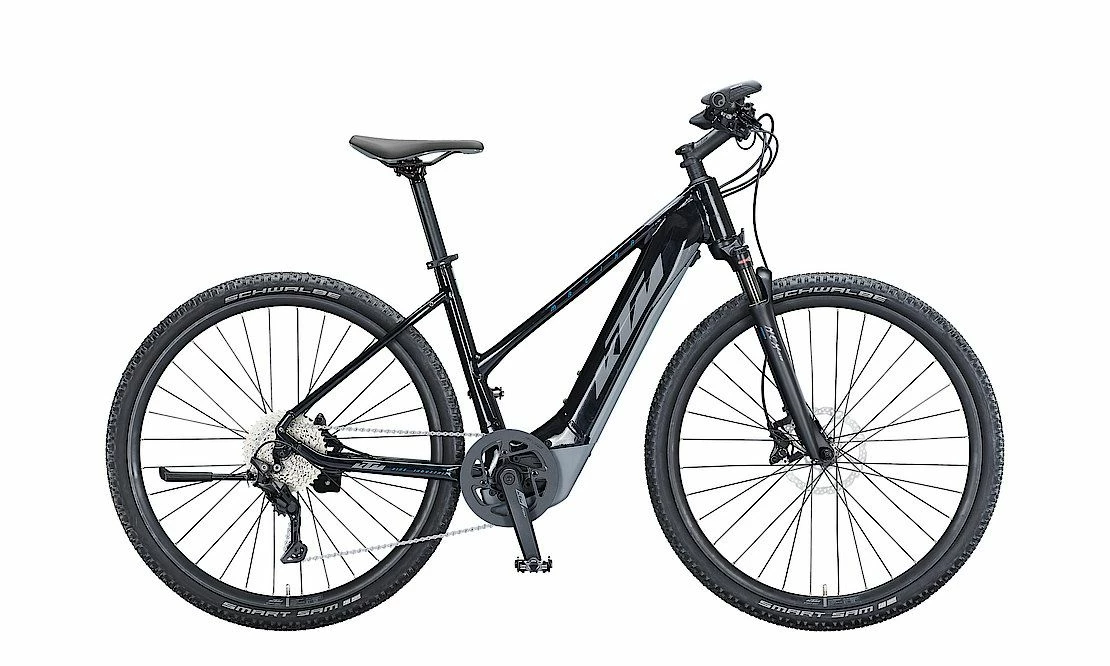

KTM Macina Cross 620 2021 Womens Electric Bike

One for all. The Macina Cross is a real all-rounder with its wide range of possibilities! This bike is perfect for
extended bike tours, a leisurely ride on a canal path and you can even take it off-road onto the forest trails.
Thanks to its upright seating position, the bike offers enough comfort to explore and enjoy the surroundings of
nature in a relaxed manner. Equipped with the Light-Fender-Carrier (LFC) package, our off-road bikes can be made
suitable for all weather conditions. With its gravel tyres, the Macina Cross is super-fast on the road on the one
hand and does not shy away from unpaved terrain on the other hand! For 2021 the Macina Cross 610 and 620 come with
the new sporty unisex frame Power Tube Sport (PTS). The heart of this frame is the Circular-Power-Flow (CPF)
construction with raised chainstays, which run directly into the main tube.

Specifications

Frame and Forks

• Frame: Macina Trekking Offroad Alloy 6061: PT625Wh Bosch Gen.4 / T-0460
• Forks: Suntour NCX-D Coil LO 63mm
• Headset: KTM Team eTrekking 1.1/8″-1.5″ angle limit

Drivetrain

• Crankset: KTM COMP ISIS 170mm Q16
• Chainring: FSA Megatooth steel 42 Tooth with Chainguard
• Rear Derailleur: Shimano Deore M4120-10 SGS shadow
• Cassette: Shimano Deore M4100-10 / 11-42 Tooth
• Chain: KMC e10 EPT E-Bike

Braking/Shifting

• Shifters: Shimano Deore M4100-10 display
• Front Brakes: Shimano RT54 CL 180mm
• Rear Brakes: Shimano RT54 CL 160mm
• Brake Levers: Shimano MT402

Wheels

• Front Wheel: KTM Line – Shimano Deore M6000 CL 32 Hole 100-5 Quick Release / Ambrosio Sport Disc 32 Hole 622 x
  23c / DT Champion 2.0″
• Rear Wheel: KTM Line – Shimano Deore M6000 CL 32 Hole 135-5 Quick Release / Ambrosio Sport Disc 32 Hole 622 x
  23c / DT Alpine II 2.34″
• Tyres: Schwalbe Smart Sam Perferformance 47-622

Finishing Kit

• Stem: KTM Comp 17°
• Seatpost: KTM Comp 350 x 30.9mm
• Saddle: KTM Line Hybrid
• Pedals: MTB-Pedal VP-195E

Electric Power

• Motor: Bosch Performance CX Gen.4 – 25km/h / 85Nm
• Battery: Bosch PowerTube 625Wh
• Display: Bosch Intuvia LCD Display with Remote
• Charger: Bosch Standard Charger 4A
