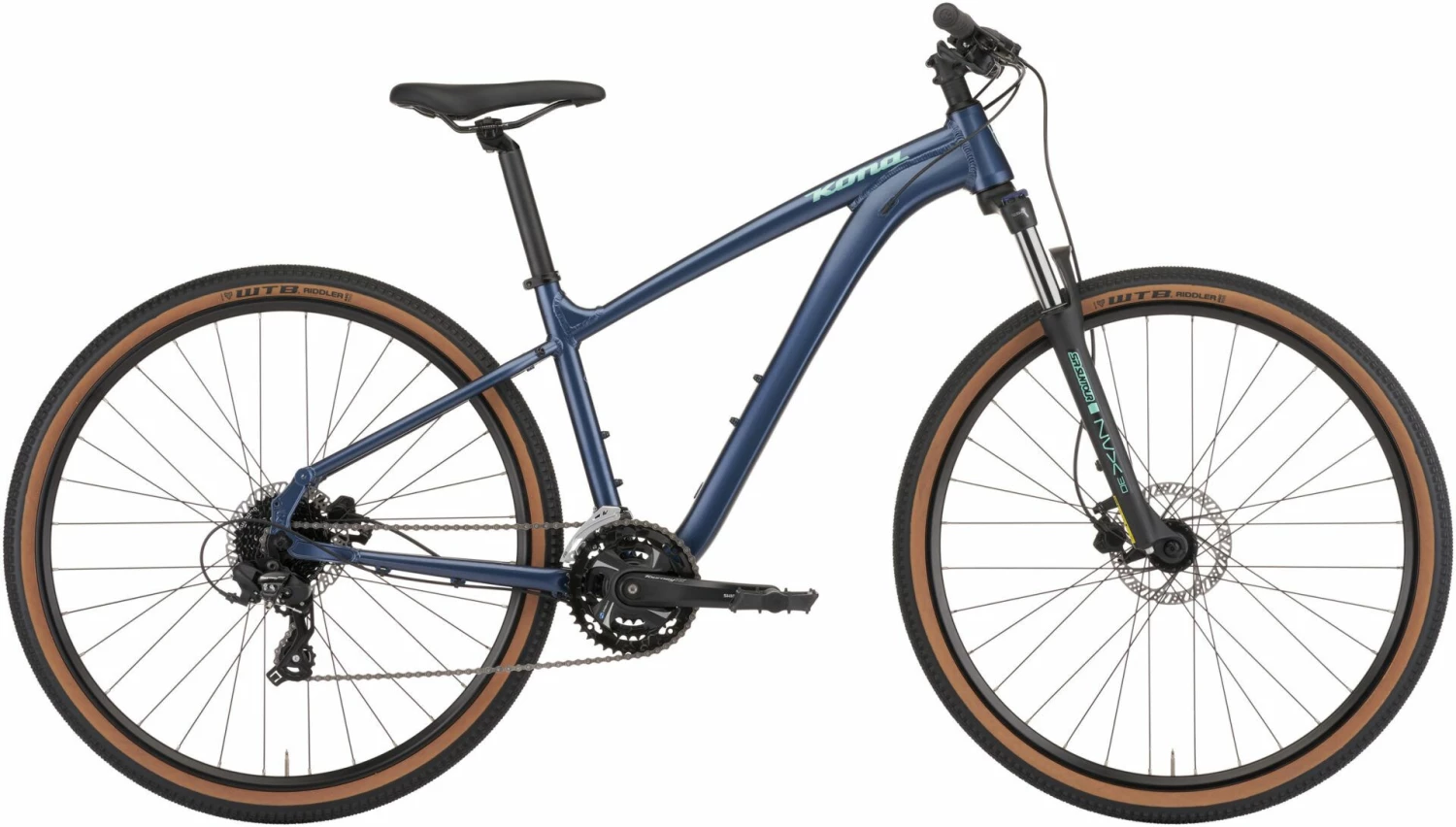

Kona Splice 2022 Bike

The Splice strikes that coveted balance of bike path-cruiser and hybrid comfort. It’s the perfect complement to a camping trip, the perfect steed for rides through the local park, and it’s also a great commuter. It’s got modern geometry that provides an excellent fit with a shorter reach and the ability to run a dropper post. The Splice has just enough suspension up front that you can lock out for efficient pedaling, hydraulic disc brakes for powerful stopping, and sturdy wheels and tires. It may just tempt you to explore further than ever before.

Features

Kona 6061 Aluminum

Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005 / 6061 tubing is butted and/or formed, meaning the tubing’s wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame’s strength and ride characteristics depending on its intended application.

Internal Headset

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

Tapered Head Tube

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going-into the lower headset cup-maximizing bearing durability where it’s needed.

Lifetime Warranty

Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.

Specifications

Frame and Forks

• Frame: Kona 6061 Aluminum Butted
• Forks: Suntour NEX Coil Spring 80mm
• Headset: Feimin FP-H863

Drivetrain

• Crankset: Shimano
• Chainrings: 22/32/42t
• Bottom Bracket: FSA 68mm
• Rear Derailleur: Shimano Tourney
• Front Derailleur: Shimano Tourney
• Freewheel: Shimano Altus 11-34 Tooth 8 Speed
• Chain: KMC Z8.3

Braking / Shifting

• Shifters: Shimano Altus
• Brakes: Tektro HDM275 Hydraulic
• Front Rotor: Tektro TR160 160mm
• Rear Rotor: Tektro TR160 160mm
• Brake Levers: Tektro HDM275 Hydraulic

Wheels

• Rims: Double Wall Alloy
• Front Hub: Formula 100 x 9mm
• Rear Hub: Formula 135 x 10mm
• Spokes: Stainless Black 14 Gauge
• Front Tyre: WTB Venture 700 x 50c
• Rear Tyre: WTB Venture 700 x 50c

Finishing Kit

• Handlebars: Kona Aluminum Riser
• Grips: Kona Key Grip Slip On
• Stem: Kona Control
• Seatpost: Kona Thumb with Offset 31.6mm
• Seat Clamp: Kona Clamp
• Saddle: Kona Crosstrail
• Pedals: Kona JS2
