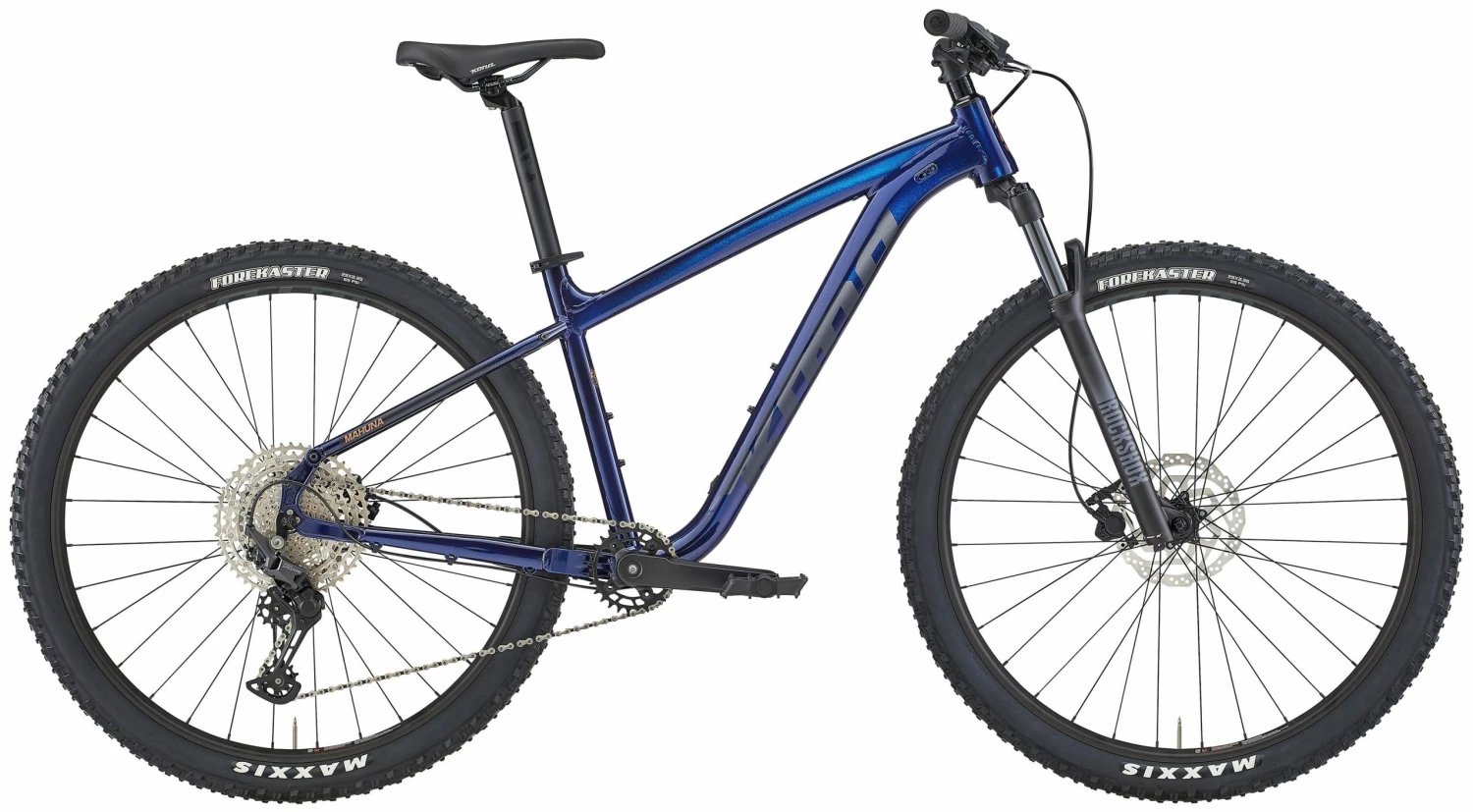

Kona Mahuna 2022 Bike

The Mahuna strikes that perfect balance of mountain bike and all-around fun rig. Its 29” wheels easily roll over
obstacles and provide a smooth, predictable ride. The fork features 100mm of smooth travel and together with the 29”
wheels, helps keep bumps in check. You have complete control over stopping with powerful hydraulic disc brakes. An
11-speed drivetrain makes quick work of tough hills ensuring the Mahuna is as fun going up as it is going down.

“The Kona Mahuna is a solid, playful hardtail for a great price”

Features

Kona 6061 Aluminum

Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing’s wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame’s strength and ride characteristics depending on its intended application.

Internal Headset

Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

Taped Head Tube

More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset
itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its
triangular design also means a stronger steering position and improved balance, giving the rider more control in
rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset
cup—maximizing bearing durability where it’s needed.

Tubeless Compatible Rims

Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides
better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.

12 x 142mm Axle

12 x 142mm, 12 x 148 and 12 x 157 rear axle standards provide two major advantages to the Kona rider: the 12mm
diameter of
the rear axle provides the rear hub and frame with a stiff interface, while the 142 / 148 / 157mm outer diameter of
the
hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017,
you’ll see the 12 x 148mm Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay
yoke,
while the rear wheel is stiffer and more durable relative to a 12 x 142mm thru-axle.

650b Wheels

650b wheels and tires have a similar overall diameter to a traditional 700c gravel or commuting tire, but with a
smaller diameter rim and a wider, taller tire. The extra air volume in this new generation of urban and
mixed-surface tires means they can be run comfortably at lower pressures while still rolling quickly on a variety of
surfaces. It’s the best of both worlds.

Lifetime Warranty

Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free
Lifetime Warranty. Note: this does not apply to Kona Carbon models.

One-Year Limited Warranty On Complete Bicycle

Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship
for a period of one year from the date of original purchase in the United States or Canada and operated under normal
conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that
are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor
charges connected with the repair or replacement of all parts.

Lifetime Limited Warranty On Bicycle Frame

When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to
the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of
defective materials or workmanship for a three-year period. If the warranty is registered with kona within three
Months after the purchase of the bicycle, the warranty is extended for the lifetime of the original owner, with the
exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the
bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner
shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see
the Kona owner’s manual, provided with your bicycle, for additional information.

Specifications

Frame and Forks

• Frame Material: Kona 6061 Aluminum Butted
• Fork: RockShox Judy Silver TK Solo Air 100mm
• Headset: Feimen HP-H868B

Drivetrain

• Crankarms: Samox
• Chainrings: 28 tooth
• Bottom Bracket: Eturnity ETN52 73mm
• Chain: KMC X11
• Freewheel: Shimano Deore 11-51 tooth 11 speed
• Rear Derailleur: Shimano Deore

Braking/Shifting

• Shifters: Shimano Deore
• Brake Calipers: Tektro HDM275 Hydraulic
• Front Brake Rotor: Shimano RT10 180mm (centerlock)
• Rear Brake Rotor: Shimano RT10 160mm (centerlock)
• Brake Levers: Tektro HDM275 Hydraulic

Wheels

• Front Hub: Formula 100 x 9mm
• Rear Hub: Shimano 135 x 10mm
• Spokes: Stainless Black 14g
• Rims: WTB ST i27 TCS 2.0
• Front Tyre: Maxxis Forekaster 29 x 2.35″
• Rear Tyre: Maxxis Forekaster 29 x 2.35″

Finishing Kit

• Handlebar: Kona XC/BC Riser
• Stem: Kona XC
• Seatpost: Kona Thumb 31.6mm
• Seat Clamp: Kona Quick Release
• Saddle: Kona Road
• Grips: Kona Key Grip Slip on
