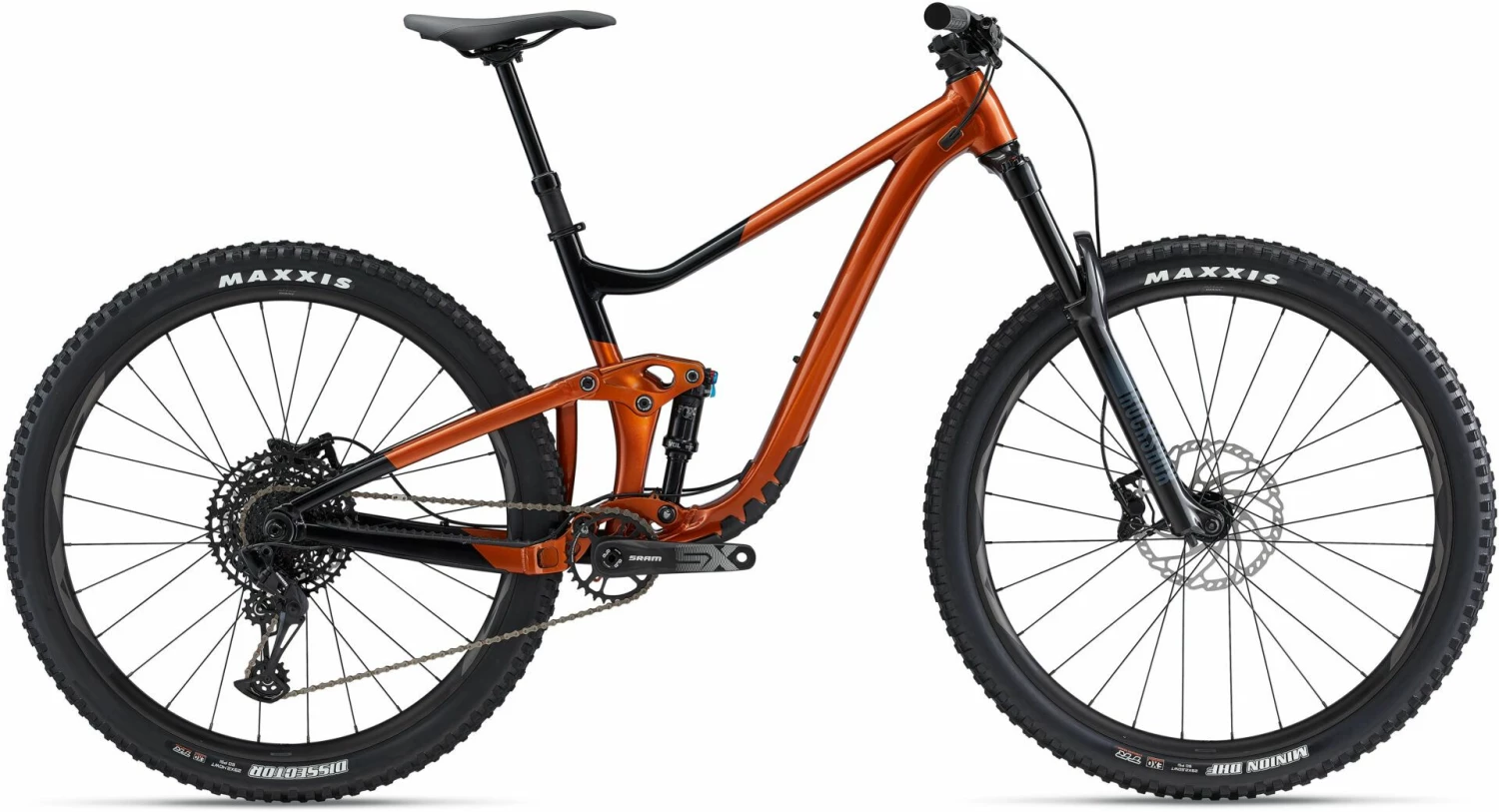

Giant Trance X 29 2 2022 Bike

Chunky rock gardens, roots and technical climbs. This hard-charging trail bike adapts to the terrain, giving you confidence and control on all types of singletrack.

Features

29er confidence and control: 29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tyres.

Progressive suspension: Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable geometry: A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm bottom bracket drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.

Technologies

• Advanced Forged Composite Technology: A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.
• Aluxx SL Aluminium Technology: This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for high-performance ride quality.
• Maestro Suspension Technology: Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
• Over Drive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4″ lower and 1 1/8″ upper for road, 1 1/2″ lower and 1 1/8″ upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
• Flip Chip Maestro: The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.

Specifications

Frame and Forks

• Frame: ALUXX SL-Grade Aluminum Front And Rear Triangles, 135mm Maestro Suspension, Flip Chip, 12 x 148mm Thru-Axle
• Forks: RockShox 35 Gold RL, 150mm, 44mm Offset, 15 x 110mm Maxle Stealth, Custom Tuned For Giant
• Rear Shock: Fox Float DPS Performance, 185 x 55mm, Custom Tuned For Giant

Drivetrain

• Crankset: SRAM SX, 30 Tooth, Small: 165mm, Medium: 170mm, Large: 170mm, X-Large: 170mm
• Bottom Bracket: SRAM DUB, Press Fit
• Rear Derailleur: SRAM SX Eagle
• Cassette: SRAM SX, 11 x 50 Tooth
• Chain: SRAM SX Eagle

Braking/Shifting

• Shifters: SRAM SX Eagle, 1 x 12 Tooth
• Brakes: Tektro Orion HD-M475 4 Piston Hydraulic Disc Brakes, Front: 203mm, Rear: 180mm Rotors
• Brake Levers: Tektro Orion HD-M745

Wheels

• Rims: Giant AM 29 Sleeve-Joint Rim, 30mm Inner Width
• Hubs: Giant Boost, Sealed Bearing
• Spokes: Sapim
• Tyres: Front: Maxxis Minion DHF 29 x 2.5″ WT, EXO, TR Rear: Maxxis Dissector 29 x 2.4″ WT, 60 TPI, 3C Max Terra, EXO, TR

Finishing Kit

• Handlebars: Giant Contact TR35, 780 x 35mm, 20mm Rise
• Grips: Giant Tactal Pro Single, Small: 120mm, Medium: 120mm, Large: 130mm, X-Large: 130mm
• Stem: Giant Contact SL 35, Small: 40mm, Medium: 40mm, Large: 50mm, X-Large: 50mm
• Seatpost: Giant Contact Switch Dropper, Remote, Small: 125mm Travel / 395 x 30.9mm Medium: 150mm Travel / 440 x 30.9mm Large: 170mm Travel / 450 x 30.9mm X-Large: 170mm Travel / 450 x 30.9mm
• Saddle: Giant Romero
• Pedals: Not Included
