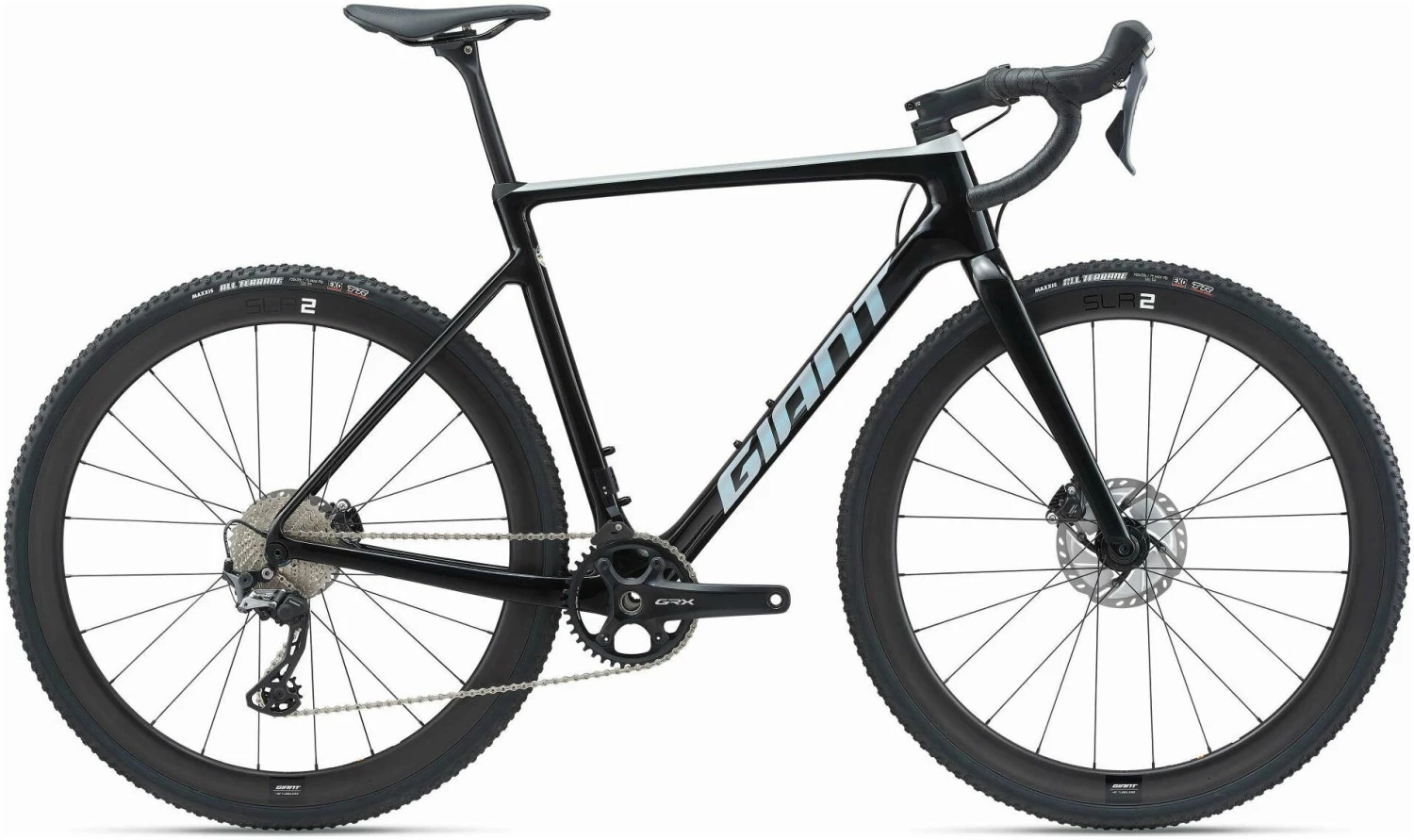

Giant TCX Advanced Pro 1 2022 Bike

Fast starts, tight corners, a blur of speed through dirt, sand and mud. Proven by elite cyclocross pros for years,
the latest TCX Advanced Pro is built to win.

Key Performance Factors

Elite level efficiency

Advanced-grade composite frameset is 17.5 percent lighter than the previous generation
while retaining its best-in-class torsional/pedalling stiffness.

Total control

Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless ready
Giant WheelSystem, delivers added control in variable conditions and all types of weather.

Smooth ride quality

D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to
switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.

Technologies

Advanced Composite Technology

Giant’s High Performance Grade raw carbon material is used to produce this
custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of
these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called
Modified Monocoque Construction.

D-fuse Technology

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing
road shocks and vibrations so you can ride farther, faster.

Overdrive 2

The most advanced steerer tube technology in today’s Giant bikes. Designed to offer
unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2″ lower, 1 1/4″
upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.

Tubeless System

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride.
Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Powercore

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter
wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional
stiffness on the driveside and stability on the non-driveside.

Specifications

Frame and Forks

• Frame: Advanced-Grade Composite, 12mm Thru-Axle, Disc
• Forks: Advanced-Grade Composite, Full-Composite OverDrive 2 Steerer, Disc

Drivetrain

• Crankset: Shimano GRX RX-810, 40 Tooth Small: 170mm, Medium: 172.5mm, Medium / Large: 172.5mm, Large: 175mm
• Bottom Bracket: Shimano, Press Fit
• Rear Derailleur: Shimano GRX RX-810 Max 34 Tooth
• Front Derailleur: n/a
• Cassette: Shimano Ultegra, 11-Speed, 11 x 34 Tooth
• Chain: KMC X11SL-1

Braking/Shifting

• Shifters: Shimano GRX RX-810, 1 x 11
• Brakes: Shimano GRX RX-810 Hydraulic, Shimano SM-RT800 Rotors Front: 160mm, Rear: 140mm
• Brake Levers: Shimano GRX RX-810 Hydraulic

Wheels

• Rims: Giant SLR 2 42 Carbon Disc Hookless WheelSystem (19mm Inner Rim Width)
• Hubs: Giant SLR 2 Carbon Disc WheelSystem
• Spokes: Giant SLR 2 Carbon Disc WheelSystem
• Tyres: Maxxis All-Terrene, 700 x 33c, Tubeless

Finishing Kit

• Handlebars: Giant Contact SL Small: 40cm, Medium: 42cm, Medium / Large: 42cm, Large: 44cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact SL Small: 80mm, Medium: 90mm, Medium / Large: 100mm, Large: 100mm
• Seatpost: Giant D-Fuse SLR, Composite, -5/+15mm Offset
• Saddle: Giant Fleet SL
• Pedals: Not Included
