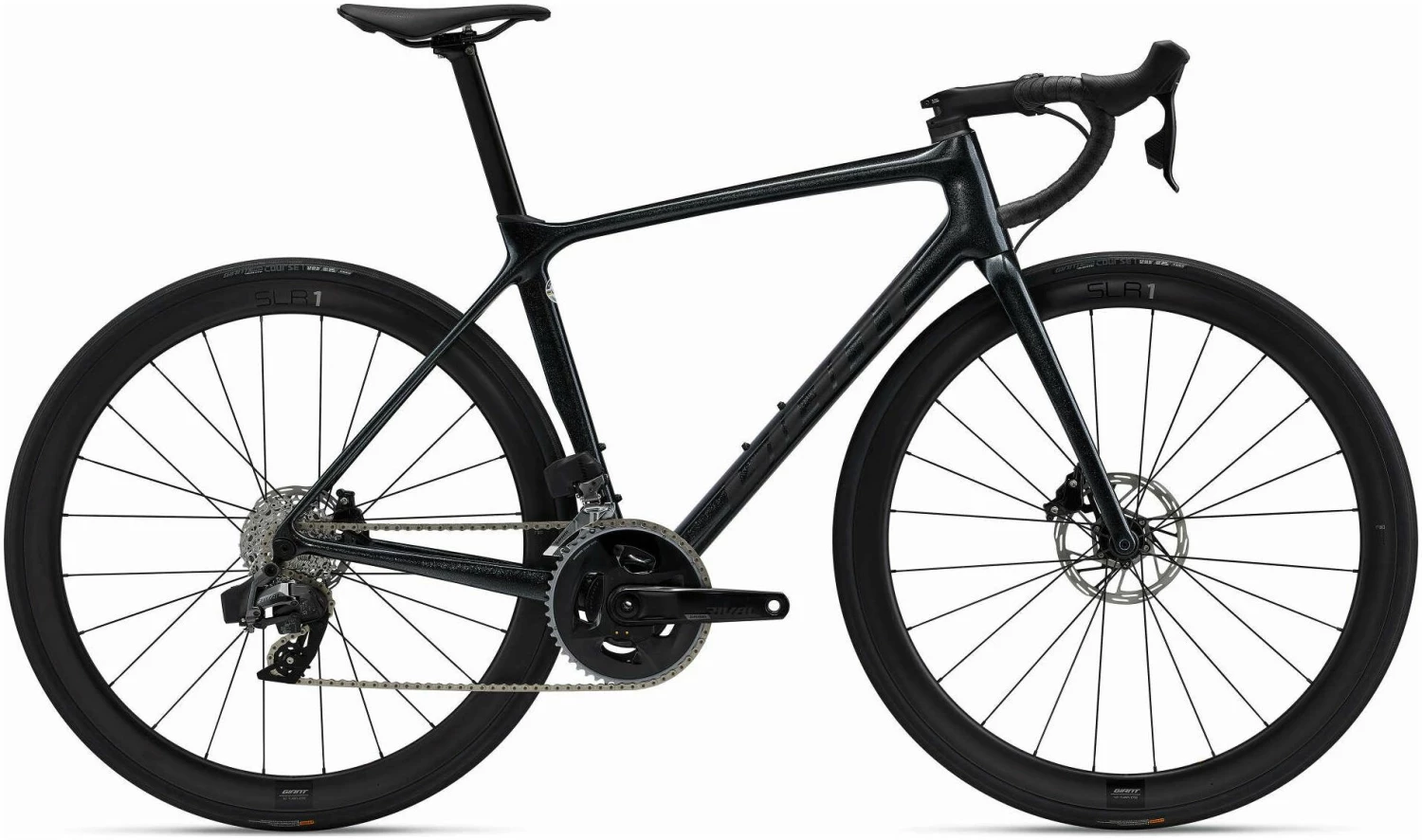

Giant TCR Advanced Pro 1 Disc AX 2022 Bike

Climb, corner and descend with speed and efficiency. From the mountains to the flats, in all types of conditions,
this lightweight composite road racer takes you to the next level.

Key Performance Factors

Class-leading efficiency

With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this
frameset is engineered for superior climbing capabilities, aerodynamic efficiency and sprint stiffness for
race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous
generation models. Every tube shape was analysed, engineered and tested to create an overall structure with
significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in
variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling,
while added frame and fork clearance allows for larger diameter tyres up to 32mm.

Technologies

Advanced Composite Technology

Giant’s High Performance Grade raw carbon material is used to produce this
custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of
these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called
Modified Monocoque Construction.

Overdrive 2

The most advanced steerer tube technology in today’s Giant bikes. Designed to offer
unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2″ lower, 1 1/4″
upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.

Compact Road Design

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road
revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the
headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it
easier for riders of all sizes to have a perfect fit.

Tubeless System

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride.
Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Specifications

Frame and Forks

• Frame: Advanced-Grade Composite, Disc
• Forks: Advanced-Grade Composite, Full-Composite OverDrive 2 Steerer, Disc

Drivetrain

• Crankset: SRAM Rival D1 DUB, 35 / 48 Tooth with Power Halo Power Meter Small: 170mm, Medium: 172.5mm, Medium / Large: 172.5mm, Large: 175mm
• Bottom Bracket: SRAM DUB, Press Fit
• Rear Derailleur: SRAM Rival ETap AXS Max 36 Tooth
• Front Derailleur: SRAM Rival ETap AXS
• Cassette: SRAM Rival, 12-Speed, 10 x 30 Tooth
• Chain: SRAM Rival D1

Braking/Shifting

• Shifters: SRAM Rival ETap AXS 2 x 12
• Brakes: SRAM Rival ETap AXS Hydraulic, SRAM PaceLine Rotors Front: 160mm, Rear: 140mm
• Brake Levers: SRAM Rival ETap AXS Hydraulic

Wheels

• Rims: Giant SLR 1 42 Carbon Disc Hookless WheelSystem (19mm Inner Rim Width)
• Hubs: Giant SLR 1 42 Carbon Disc WheelSystem, 12mm Thru-Axle
• Spokes: Giant SLR 1 42 Carbon Disc WheelSystem
• Tyres: Giant Gavia Course 1, Tubeless, 700 x 25c (Effective Width 28mm), Folding

Finishing Kit

• Handlebars: Giant Contact SL Small: 40cm, Medium: 42cm, Medium / Large: 42cm, Large: 44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact SL Small: 90mm, Medium: 100mm, Medium / Large: 110mm, Large: 110mm
• Seatpost: Giant Variant, Composite, -5/+15mm Offset
• Saddle: Giant Fleet SL
• Pedals: Not Included
