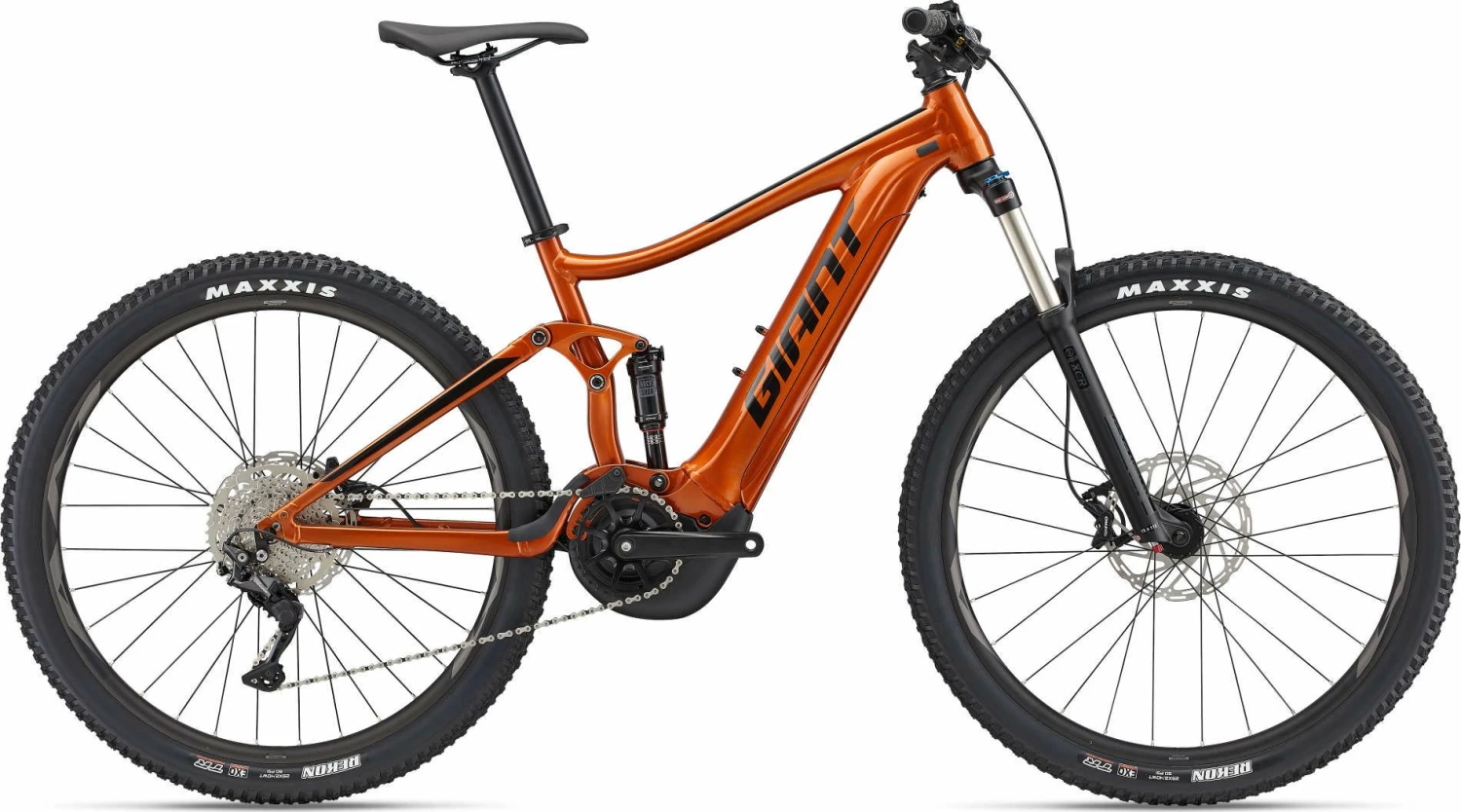

Giant Stance E+ 2 2022 Electric Bike

Steep climbs, technical descents, longer days on the trail. With a smooth suspension setup and a seamless boost of
pedaling support, this E-bike gives you the power and technology to ride the trails you dream about.

Key Performance Factors

Strong motor support

The SyncDrive Sport motor with 70Nm of torque and 360 percent tunable support helps you climb steep, rugged trails
with ease.

Total control

ALUXX SL aluminum frame with 120mm FlexPoint suspension and 29-inch wheels produces a smooth, confident ride on
technical trails. The Giant E-bike App gives you navigation, health and fitness functions.

Efficent

The EnergyPak Smart 625Wh & 500Wh offers long riding range. This integrated battery is easy to charge up to 80
percent in 2.5 hours with new 6A Fast Charger.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the
rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail
surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions
typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak Smart 500 / SyncDrive Sport

• Extreme: 55km
• Good: 110km
• Ideal: 180km

Specifications

Frame and Forks

• Frame: ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost Quick Release, Integrated KS18 Kickstand
  Mount
• Forks: SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 15 x 110mm thru-axle
• Rear Shock: RockShox Monarch R, High Volume, 184 x 44mm, custom tuned

Drivetrain

• Crankset: Forged Alloy minimal Q-factor, 36 Tooth Steel Direct Mount ring (Small: 160mm, Medium / Large: 165mm,
  X-Large: 170mm)
• Rear Derailleur: Shimano Deore, 10-speed, Shadow+
• Cassette: Shimano CS-M4100-10, 11-46 Tooth, 10-speed
• Chain: KMC e.10 Sport, e-bike optimised

Braking/Shifting

• Shifters: Shimano Deore, 10-speed
• Front Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
• Rear Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
• Brake Levers: Tektro HD-M745 Orion

Wheels

• Rims: Giant AM 29″, Tubeless ready, 30mm inner width
• Front Hub: Giant eTracker Sport
• Rear Hub: Giant eTracker Sport 15mm Thru-Axle 141mm Quick Release
• Spokes: Stainless Steel
• Front Tyre: Maxxis Rekon 29 x 2.4″ foldable, 60TPI, EXO, Tubeless Ready
• Rear Tyre: Maxxis Rekon 29 x 2.4″ foldable, 60TPI, EXO, Tubeless Ready

Finishing Kit

• Handlebars: Giant Connect TR Riser 31.8 x 780mm
• Stem: Giant Contact
• Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle: Giant Sport
• Pedals: Aluminum Platform

Electric Power

• Motor: SyncDrive Sport, 70Nm, powered by Yamaha
• Battery: EnergyPak Smart 500Wh
• Display: ANT+ Wireless display compatible
• Charger: EnergyPak 4A smart charger compact
