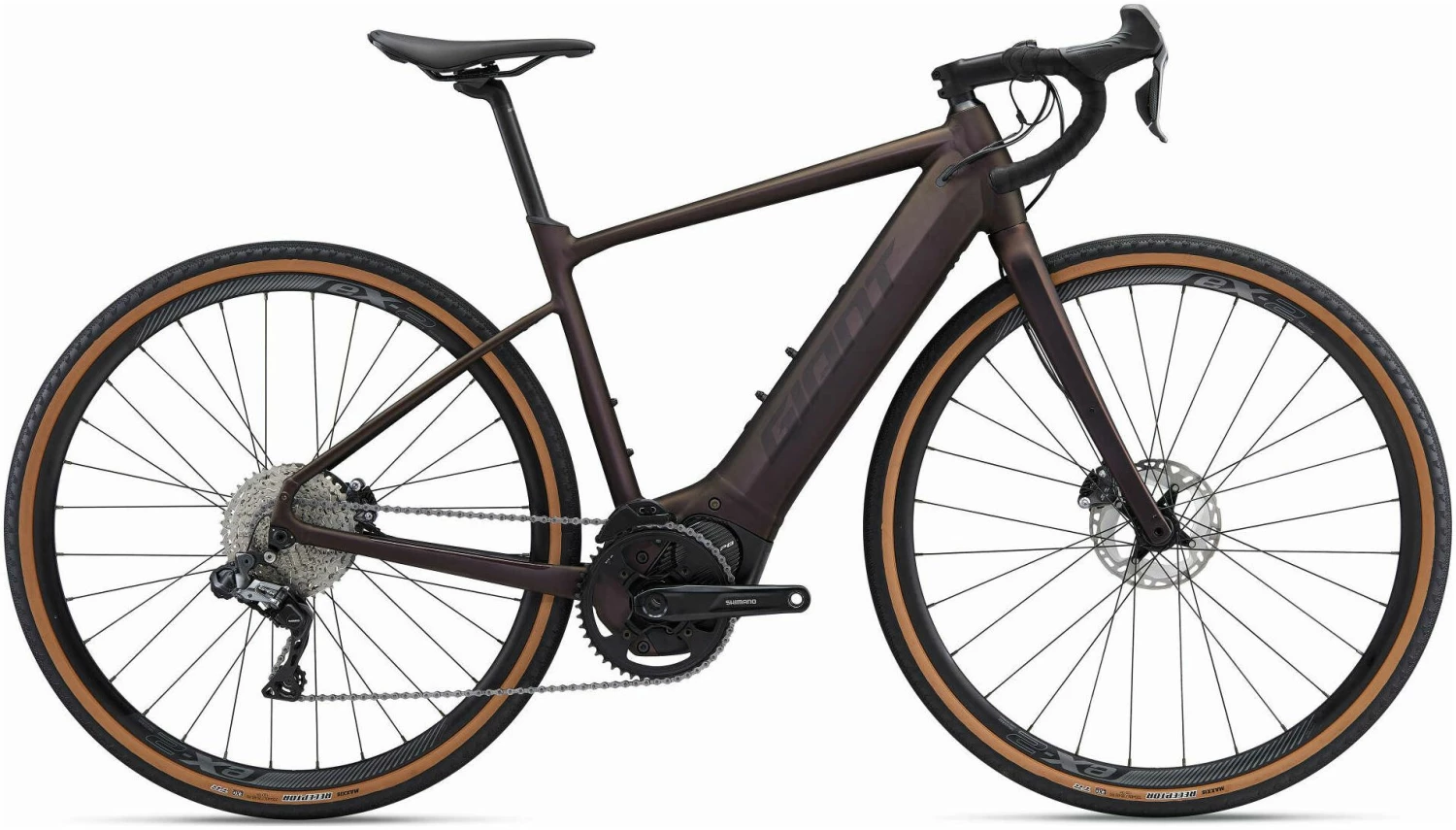

Giant Revolt E+ 2022 Electric Bike

From rough roads to gravel, dirt and mixed terrain adventures, this versatile drop bar E-bike gives you the power to
ride farther and faster on any route you can dream up.

Key Performance Factors

Trail technology

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology
boost your capabilities on steep climbs and rugged descents.

Total control

RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant
E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power

Climb steep mountains and enjoy fun descents all day long with the downtube-integrated EnergyPak

Technologies

Aluxx SL Aluminum Technology

This High-Performance level, state-of-the-art aluminum material is made
predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature
unique welding technologies for a high-performance ride quality.

Hybrid Cycling Technology

Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart,
natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our
RideControl control unit, EnergyPak battery systems and SyncDrive motor.

Maestro Suspension Technology

Four strategically positioned pivot points and two linkages all work together to
create a single floating pivot for the most active, efficient and independent suspension system on the trail.

Syncdrive Pro

SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the
motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact
SyncDrive Pro motor is used primarily on Giant’s high-performance models.

Smart Assist

All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s
needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine
the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input
and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while
also conserving power when you don’t need as much.

Energypak

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the
E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the
EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of
riding.

Ridecontrol Ergo 3

This updated control system features clean buttons that are integrated with the handlebar
grips. You can install the three-button control on the left or right side, making it easy to switch power modes.
You also have the option of adding a second control on the other side. Using the RideControl App, you can
configure it to your own personal preferences.

Ridecontrol Go:

Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated
into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar
setup. The lights also display battery level and support mode.

Specifications

Frame and Forks

• Frame: ALUXX SL Aluminium
• Forks: Advanced-Grade Composite, Full-Composite OverDrive Steerer

Drivetrain

• Crankset: Shimano FC-EM600 Crankarm Shimano SM-CRE80-R, 47 Tooth Chainring
• Bottom Bracket: Integrated Into Motor
• Rear Derailleur: Shimano GRX Di2 RX817 (Max 42 Tooth Cassette Size)
• Cassette: Shimano CS-M5100-11, 11-42 Tooth, 11-Speed
• Chain: KMC E.11 Turbo, EcoProteq

Braking/Shifting

• Shifters: Shimano GRX Di2 ST-RX815 1 x 11 Speed
• Brakes: Shimano BR-RX810, Hydraulic Disc, 160mm
• Brake Levers: Shimano ST-RX815 Hydraulic Disc

Wheels

• Rims: Giant EX 2, Tubeless Ready, 700c Aluminium
• Hubs: Giant Performance Tracker Road, Sealed Bearing, 12mm Thru Axle
• Front Spokes: Race
• Rear Spokes: Sapim E-Lite
• Tyres: Maxxis Receptor, EXO, Skinwall, 700 x 40mm, Tubeless

Finishing Kit

• Handlebars: Giant Contact XR D-Fuse, 31.8mm, 5° Back Sweep, Flared Drop
• Grips: Giant Connect Tape
• Stem: Giant Contact
• Seatpost: Giant D-Fuse SL, Composite
• Saddle: Giant Approach
• Pedals: Aluminum Platform

Electric Power

• Motor: Shimano EP8, 85Nm, Up To 400% Asssistance
• Battery: EnergyPak Compact 500Wh EnergyPak Plus Range Extender Compatible
• Charger: EnergyPak 4A Smart Charger Compact
• Display: ANT+ Wireless Display Compatible, Not Included
• Controller: RideControl GO Top Tube Mounted, Assistance Level Can Also Be Controlled By Left Hand STI
  Buttons
