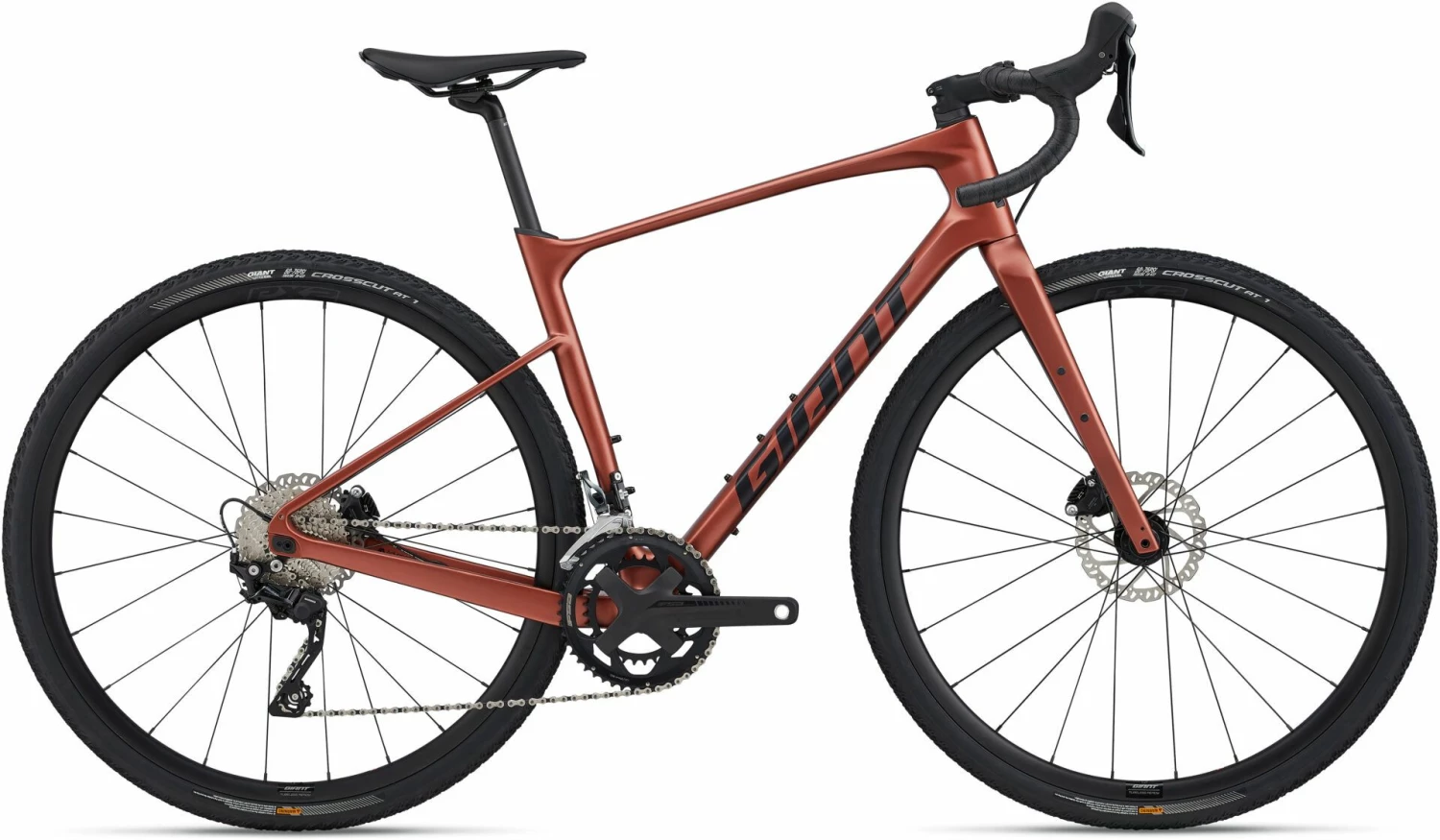

Giant Revolt Advanced 3 2022 Bike

Fast gravel, rough gravel, pavement or dirt. However you choose to roll, this bike does it all. A new composite frameset and adjustable wheelbase make it more capable than ever.

Features

Fast and light: New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.

Tuned compliance: New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Technologies

• Advanced Composite Technology: Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
• D Fuse Technology: The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
• Over Drive: Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4″ lower and 1 1/8″ upper for road, 1 1/2″ lower and 1 1/8″ upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
• Tubeless System: Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
• Flip Chip Dropout: Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.

Specifications

Frame and Forks

• Frame: Advanced-Grade Composite, 12 x 142mm Thru-Axle, Disc, Flip Chip Dropout
• Forks: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12mm Thru-Axle, Disc

Drivetrain

• Crankset: FSA Omega Adventure, 32 / 48 Tooth, Small: 170mm, Medium: 172.5mm, Medium / Large: 172.5mm, Large: 175mm, X-Large: 175mm
• Bottom Bracket: Shimano, Press Fit
• Rear Derailleur: Shimano GRX-RX400 Max 36 Tooth
• Front Derailleur: Shimano Tiagra
• Cassette: Shimano Tiagra, 11 x 34 Tooth
• Chain: KMC X10-1

Braking/Shifting

• Shifters: Shimano GRX RX-400, 2 x 10 Speed
• Brakes: Shimano GRX RX-400 Hydraulic, Giant Mph Rotors, Front: 160mm, Rear: 160mm
• Brake Levers: Shimano GRX RX-400 Hydraulic

Wheels

• Rims: Giant P-X2 Disc Wheelset, 25mm Inner Rim Width
• Hubs: Giant P-X2 Disc Wheelset
• Spokes: Giant P-X2 Disc Wheelset
• Tyres: Giant CrossCut AT 1, 700 x 38c, Tubeless

Finishing Kit

• Handlebars: Giant Contact XR D-Fuse, 31.8mm, Small: 42cm, Medium: 44cm, Medium / Large: 44cm, Large: 46cm, X-Large: 46cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact, 8-Degree, Small: 60mm, Medium: 70mm, Medium / Large: 80mm, Large: 80mm, X-Large: 90mm
• Seatpost: Giant D-Fuse, Composite, 14mm Offset
• Saddle: Giant Approach
• Pedals: Not Included
