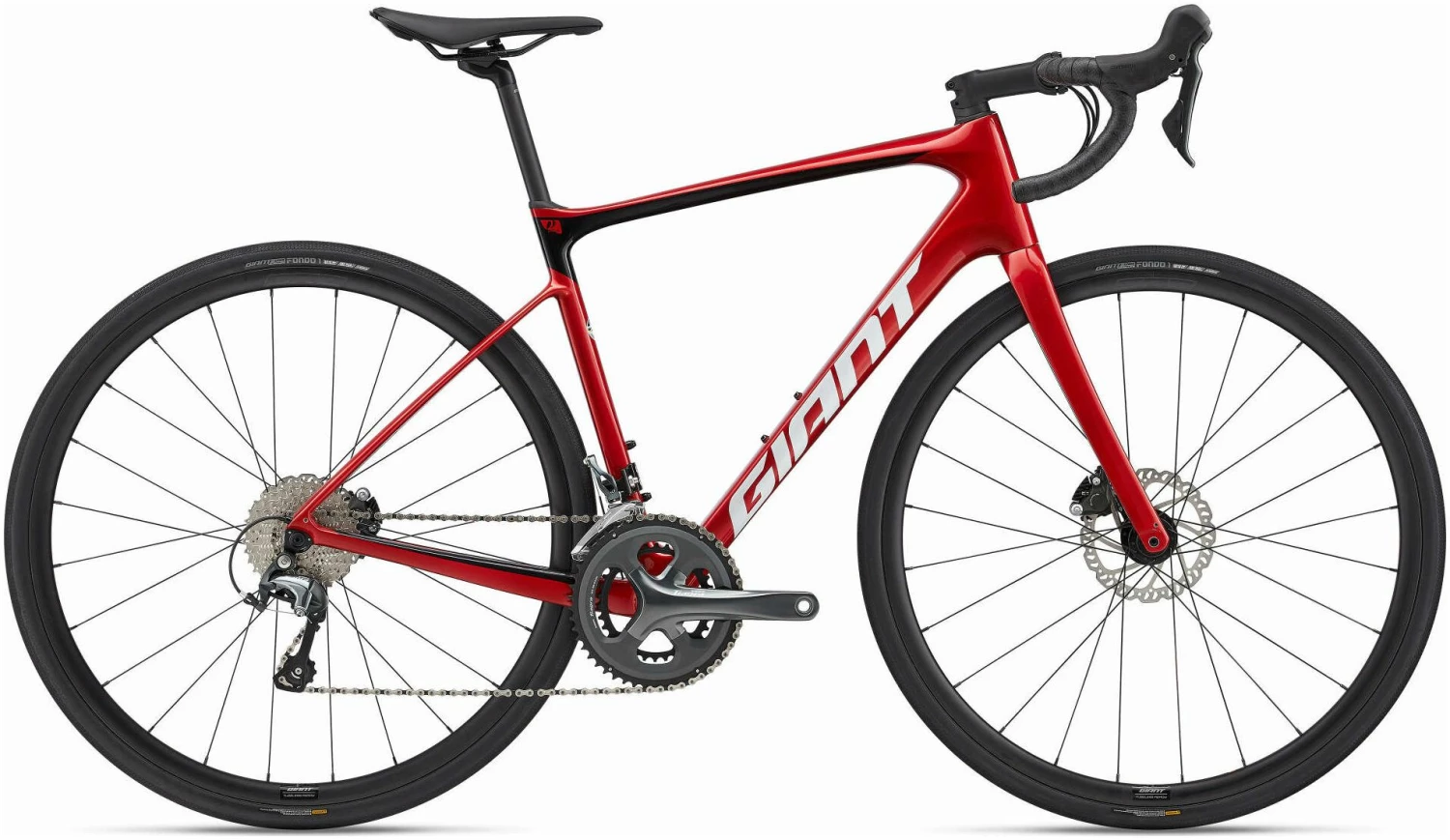

Giant Defy Advanced 3 2022 Bike

Choose the longer route. Climb higher mountains. This smooth-riding endurance road bike is made for long-distance
rides on all types of roads.

Key Performance Factors

Engineered compliance

Advanced Composite frame is specifically engineered for endurance road riding, giving you a
smooth ride quality and less fatigue on long rides. The D-Fuse seatpost and handlebar absorb road shocks and
vibrations.

Total Control

Seamless disc brake integration, including flat mounts and 12mm front and rear thru-axles, produces
more consistent braking power for better control, even in wet weather and rough roads.

Versatility

Endurance road geometry, added tyre clearance (up to 35mm) and disc-brake integration allow you to
tackle a variety of roads and conditions, from smooth pavement to rugged mountain passes.

Technologies

Advanced Composite Technology

Giant’s High Performance Grade raw carbon material is used to produce this custom
frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these
framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified
Monocoque Construction.

D-fuse Technology

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road
shocks and vibrations so you can ride farther, faster.

Overdrive

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end
steering performance, the system’s oversized headset bearings (1 1/4″ lower and 1 1/8″ upper for road, 1 1/2″
lower and 1 1/8″ upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering
stiffness.

Compact Road Design

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road
revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the
headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it
easier for riders of all sizes to have a perfect fit.

Tubeless System

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride.
Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Ridesense Ready

This frame comes prepared to accept the Giant RideSense sensor and accompanying hardware.

Specifications

Frame and Forks

• Frame: Advanced-Grade Composite, Disc
• Forks: Advanced-Grade Composite, Full-Composite OverDrive Steerer, Disc

Drivetrain

• Crankset: Shimano Tiagra, 34 / 50 Tooth Small: 170mm, Medium: 172.5mm, Medium / Large: 172.5mm, Large:
  175mm, X-Large: 175mm
• Bottom Bracket: Shimano, Press Fit
• Rear Derailleur: Shimano Tiagra
• Front Derailleur: Shimano Tiagra
• Cassette: Shimano Tiagra, 11 x 34 Tooth
• Chain: KMC X10-1

Braking/Shifting

• Shifters: Shimano Tiagra 2 x 10
• Brakes: Shimano Tiagra Hydraulic, Giant Mph Rotors Front: 160mm, Rear: 140mm
• Brake Levers: Shimano Tiagra

Wheels

• Rims: Giant S-R2 Disc Wheelset (22mm Inner Rim Width)
• Hubs: Giant S-R2 Disc Wheelset, 12mm Thru-Axle
• Spokes: Giant S-R2 Disc Wheelset
• Tyres: Giant Gavia Fondo 1, Tubeless, 700 x 32c (Effective Width 33.5mm), Folding

Finishing Kit

• Handlebars: Giant Contact SL D-Fuse Small: 40cm, Medium: 42cm, Medium / Large: 42cm, Large: 44cm,
  X-Large: 44cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact Small: 90mm, Medium: 100mm, Medium / Large: 110mm, Large: 110mm, X-Large: 110mm
• Seatpost: Giant D-Fuse, Composite, 14mm Offset
• Saddle: Giant Approach
• Pedals: Not Included
