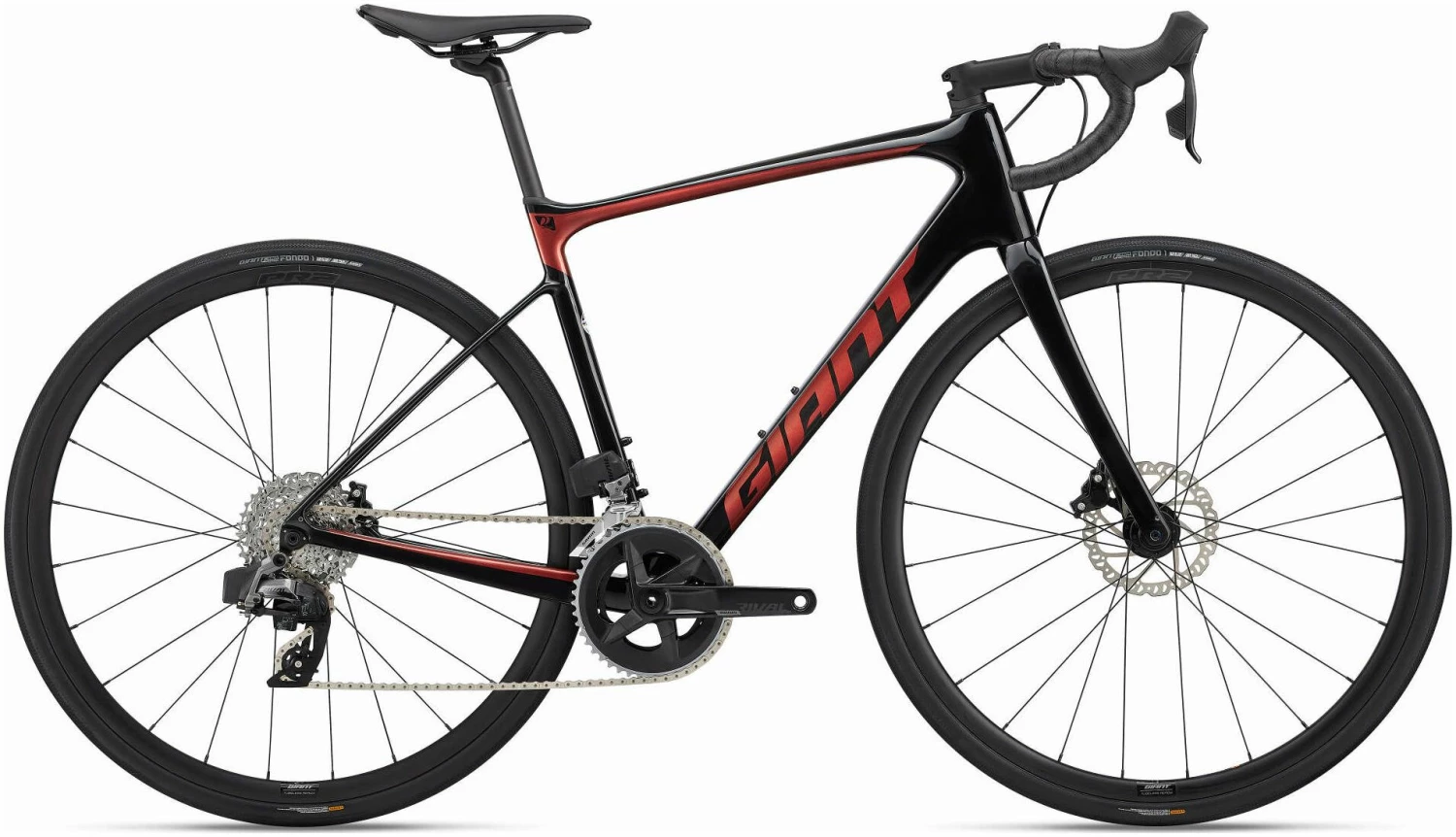

Giant Defy Advanced 0 2022 Bike

Choose the longer route. Climb higher mountains. This smooth-riding endurance road bike is made for long-distance
rides on all types of roads.

Key Performance Factors

Engineered Compliance

Advanced Composite frame is specifically engineered for endurance road riding, giving you a smooth ride quality and
less fatigue on long rides. The D-Fuse seatpost and handlebar absorb road shocks and vibrations.

Total Control

Seamless disc brake integration, including flat mounts and 12mm front and rear thru-axles, produces more consistent
braking power for better control, even in wet weather and rough roads.

Versatility

Endurance road geometry, added tyre clearance (up to 35mm) and disc-brake integration allow you to tackle a variety
of roads and conditions, from smooth pavement to rugged mountain passes.

Technologies

Advanced Composite Technology

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite
factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one
continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

D-Fuse Technology

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you
can ride farther, faster.

Overdrive

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance,
the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for
mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

Compact Road Design

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of
high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller
front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a
perfect fit.

Tubeless System

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System
makes it easier than ever to experience all these benefits.

Ridesense Ready

This frame comes prepared to accept the Giant RideSense sensor and accompanying hardware.

Specifications

Frame and Forks

• Frame: Advanced-Grade Composite, Disc
• Forks: Advanced-Grade Composite, Full-Composite OverDrive Steerer, Disc

Drivetrain

• Crankset: SRAM Rival D1 DUB, 33 / 46 Tooth Small: 170mm, Medium: 172.5mm, Medium / Large: 172.5mm, Large: 175mm, X-Large: 175mm
• Bottom Bracket: SRAM DUB, Press Fit
• Rear Derailleur: SRAM Rival ETap AXS Max 36 Tooth
• Front Derailleur: SRAM Rival ETap AXS
• Cassette: SRAM Rival, 12-Speed, 10 x 36 Tooth
• Chain: SRAM Rival D1

Braking/Shifting

• Shifters: SRAM Rival ETap AXS 2 x 12
• Brakes: SRAM Rival ETap AXS Hydraulic, Giant Mph Rotors Front: 160mm, Rear: 140mm
• Brake Levers: SRAM Rival ETap AXS Hydraulic

Wheels

• Rims: Giant P-R2 Disc Wheelset (22mm Inner Rim Width)
• Hubs: Giant P-R2 Disc Wheelset, 12mm Thru-Axle
• Spokes: Giant P-R2 Disc Wheelset
• Tyres: Giant Gavia Fondo 1, Tubeless, 700 x 32c (Effective Width 33.5mm), Folding

Finishing Kit

• Handlebars: Giant Contact SL D-Fuse Small: 40cm, Medium: 42cm, Medium / Large: 42cm, Large: 44cm, X-Large: 44cm
• Grips: Stratus Lite 3.0
• Stem: Giant Contact Small: 90mm, Medium: 100mm, Medium / Large: 110mm, Large: 110mm, X-Large: 110mm
• Seatpost: Giant D-Fuse, Composite, 14mm Offset
• Saddle: Giant Approach
• Pedals: Not Included
