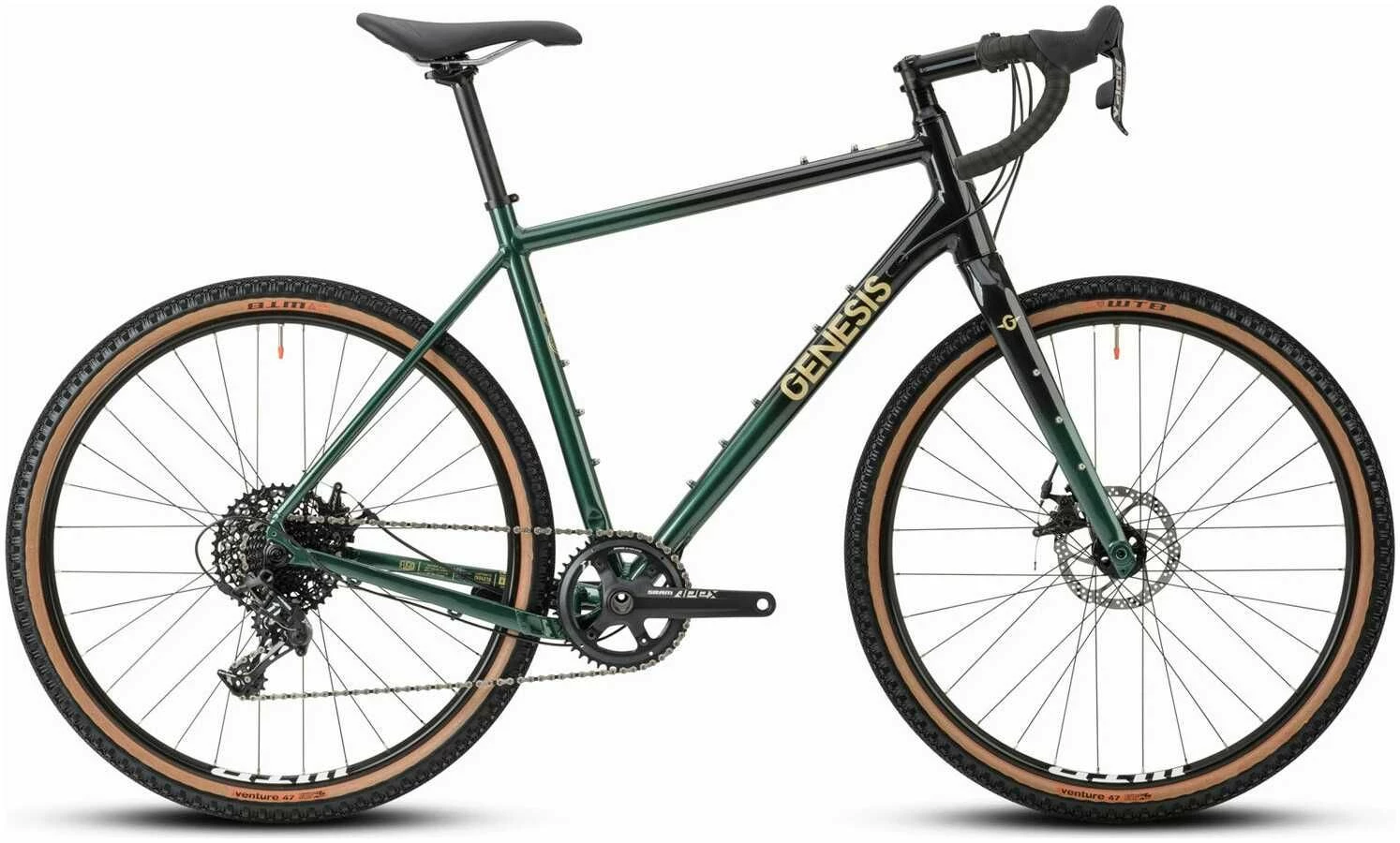

Genesis Fugio 10 2021 Bike

The Fugio 10 trades steel for an aluminium frameset, keeping the grin on your face and cash in your wallet.

Our entry-level gravel drift machine sacrifices none of the fun factor and still gets a full carbon fork, along with
all the mounts you’ll need for that after-hours adventure. Clearance for 50mm tyres on the spec’d 650b wheelset, or
the option to swap to 700c wheels and 40mm rubber make this a bike that’s as adaptable as it is enthusiastic.

SRAM’s Apex 1X drivetrain keeps things simple, with a wide-range 11-42T cassette matched to a 42 tooth chainring up
front.
That should be enough to find some creative lines on your local trails and handle the hack back through the city.

Specifications

Frame and Forks

• Frame: Alloy Crossbar Design
• Forks: Genesis Full Carbon Gravel Disc Fork With Anything Cage Mounts
• Headset: F23A-2 Taper 1.1/8 Inch – 1.1/5 Inc Holes

Drivetrain

• Chainset: SRAM Apex 1 42 Tooth X-Small, Small = 170mm, Medium, Large = 172.5mm, X-Large = 175mm
• Bottom Bracket: SRAM BB GXP
• Rear Derailleur: SRAM Apex 1 Long Cage 11 Speed
• Cassette: SRAM CS PG-1130 11-42 Tooth
• Chain: KMC X11

Braking / Shifting

• Brake Levers: SRAM Apex 11 Speed
• Brakes: TRP Spyre-C FM Mechanical Disc
• Shifters: SRAM Apex 11 Speed

Wheels

• Rims: WTB ST I25 TCS 2.0
• Hubs: KT Front – QL-SL2F / Rear QL-X2DR
• Spokes: Steel 14G
• Tyres: WTB Venture 650 x 47c

Finishing Kit

• Handlebars: Genesis Alloy 16 Deg Flare X-Small = 420mm, Small, Medium = 440mm, Large = 460mm, X-Large = 480mm
• Bar Tape: Genesis
• Stem: Genesis Alloy 31.8mm -6 Deg 100mm
• Seatpost: Genesis Alloy 27.2 x 350mm
• Saddle: Genesis
