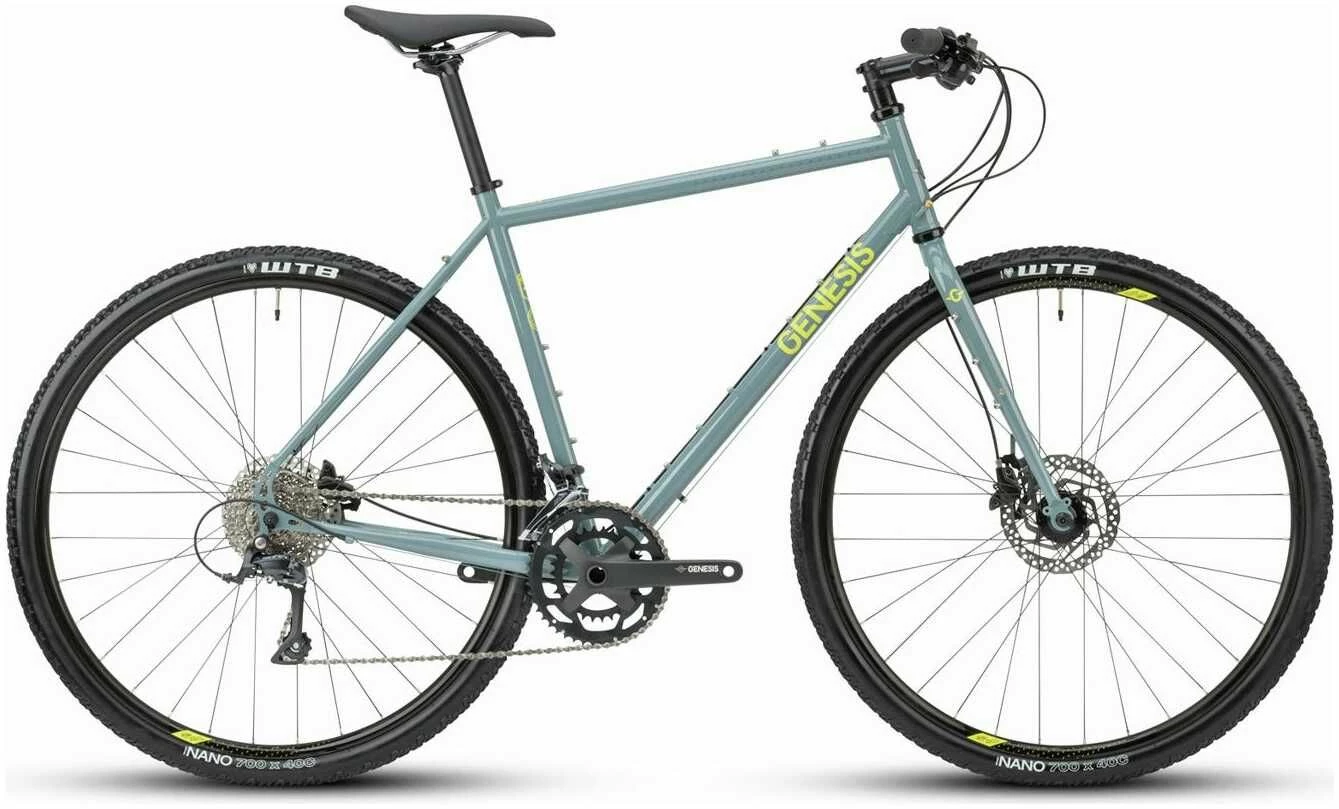

Genesis Croix De Fer 10 Flat Bar 2021 Bike

Our classic Croix de Fer gets updated with an urban twist.

The bike that helped define us has now been flattened, so you can cut through the traffic Monday to Friday and hit
the gravel roads on the weekend.

With the same classic Mjolnir steel Croix de Fer frame and fork you know it will ride like the original and can still
be loaded up and taken anywhere.

Just like the rest of the range, the frameset has been redesigned to accept up to 42mm tyres on the provided 700c
rims, or 47mm tyres on a 650b wheelset.

Regular 9mm QRs front and rear, tubeless ready rims and tyres, flat mount disc brakes, a third bottle mount, rack and
guard mounts and fixings for Anything Cages on the forks complete the package.

Specifications

Frame and Forks

• Frame: Steel Crossbar Design
• Forks: Chromoly Disc Fork With Anything Cage Mounts
• Headset: PT-1606 EC34 Upper / EC34 Lower

Drivetrain

• Chainset: Genesis TAF37 46-30 Tooth X-Small = 165mm Small, Medium = 170mm, Large, X-Large = 175mm
• Bottom Bracket: Shimano BB-RS500
• Rear Derailleur: Shimano Sora R3000 9 Speed GS Cage
• Front Derailleur: Shimano Sora R3000 Band On
• Cassette: Shimano CS-HG400-9 11-34 Tooth Holes
• Chain: KMC X9

Braking / Shifting

• Brake Levers: Shimano BL-MT200 Hydraulic
• Brakes: Shimano BR-MT200 Hydraulic Disc
• Shifters: Shimano Sora SL-R3000 9 Speed

Wheels

• Rims: Jalco XCD23
• Hubs: KT-K68 / 6 Bolt
• Spokes: Steel 14G
• Tyres: WTB Nano 700 x 40c

Finishing Kit

• Handlebars: Genesis Alloy 9 Deg Backsweep X-Small = 640mm Small, Medium = 660mm, Large, X-Large = 680mm
• Grips: Genesis
• Stem: Genesis Alloy 31.8mm -6 Deg 100mm
• Seatpost: Genesis Alloy 27.2 x 350mm
• Saddle: Genesis
• Pedals: NW-91K With Cage
