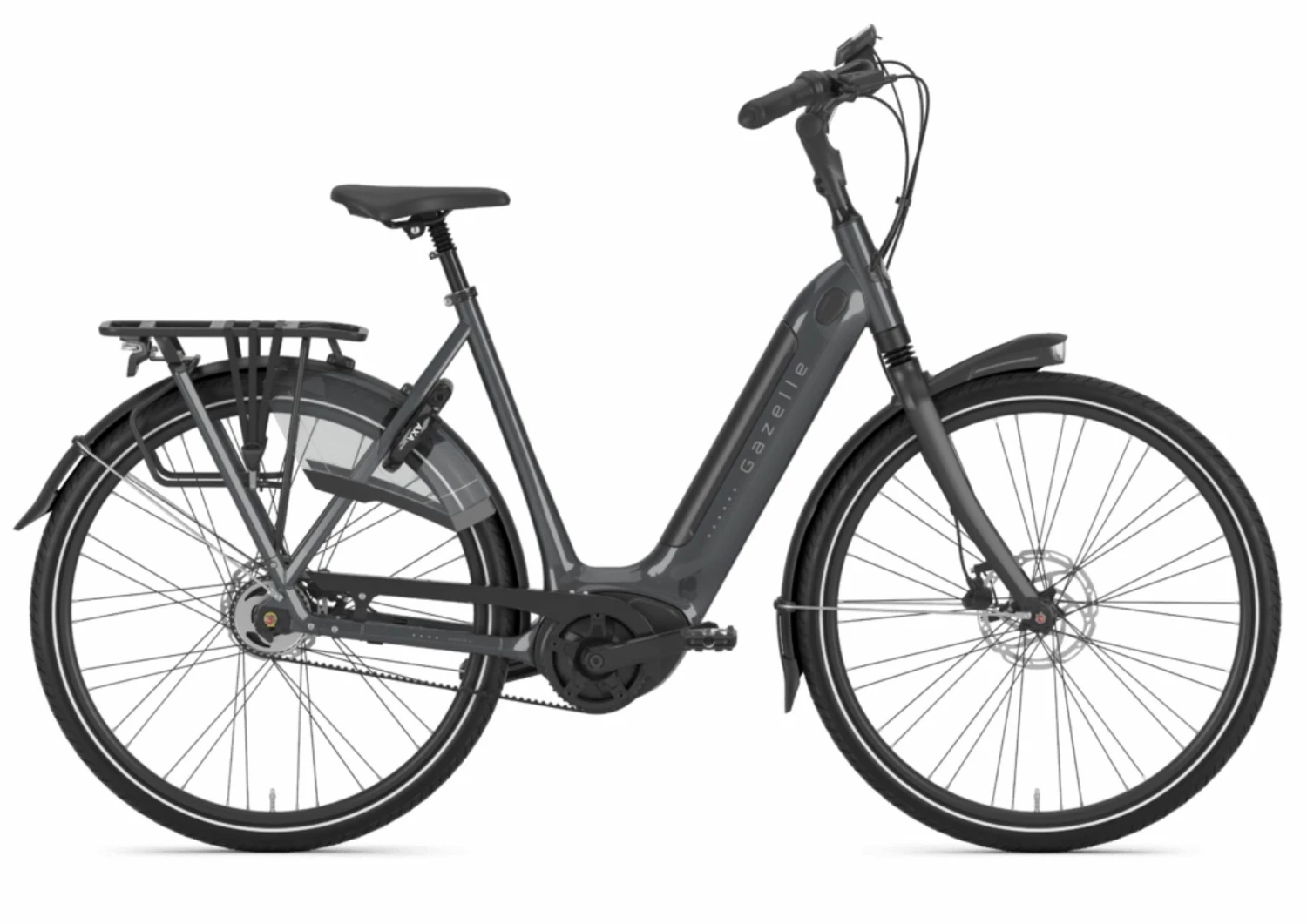

Gazelle Grenoble C5 HMB Step-Through 2022 Electric Bike

Discover the Grenoble C5 HMB

Features

Ultimate comfort and sportivity go together exceptionally well in the Grenoble C5 HMB. The convenience of a low, wide step-through and comfort of an upright sitting position. The silent belt drive of the very powerful Bosch mid-motor and the precisely shifting Nexus 5 gear hub. Wide tyres, suspension components and a gel saddle take care of your comfort. That is cycling with the Grenoble C5 HMB.

• Power reserves for headwinds and effortless climbing
• Large disc brakes match its high performance
• Low-maintenance Gates belt drive and special Shimano e-bike internal gear hub
• Leather grips and a sporty comfortable saddle exude luxury

Ease Of Use

The Grenoble C5 HMB excels in user-friendliness, so you can get on and off the bike easily because of its low, wide step-through. Furthermore, the unique continuously adjustable handlebar stem makes it easy to adjust the sitting position. And the low-maintenance belt drive and special e-bike hub mean you can cycle endlessly.

In Control

With a Grenoble you are always in control, thanks to the hydraulic disc brakes. They provide controlled and powerful braking in all weather conditions. The extra-long brake levers, especially in combination with the excellent grip of the wide tyres, ensure an even better control of your bike.

Low-Maintenance Cycling Pleasure

The Gates belt drive is the perfect alternative for a chain. This technology requires little maintenance. In contrast to the chain, you do not have to lubricate it. When cycling, the belt is as quiet as a mouse, thereby not disrupting your enjoyment on the bike. In short; with the belt you are assured of many years of cycling pleasure.

How Does An Electric Bike Work?

An electric system consists of a number of main components:

• Battery: Integrated into the luggage carrier or located behind the seat tube (depending on the model)
• Motor: Built into the frame at the bottom bracket or in the front wheel
• Display: Fitted on the handlebar
• Sensors: Every electric system has a speed sensor, which as its name suggests, measures how fast the bike is being ridden. In addition, riding behaviour is determined by a rotation sensor or a pedal force sensor depending on the model. The Impulse system in addition has a fourth sensor, namely the shift sensor. This sensor cuts out assistance for a quarter of a second while you are shifting which enables you to keep on pedalling while shifting.

Together the sensors determine the amount assistance provided by the motor based on your assistance level setting and the pedal force you are applying. You set the assistance level yourself using the handlebar grip control.

Specifications

Frame and Forks

• Frame: Aluminium, 68.5° Head Tube Angle, 69.5° Seat Tube Angle
• Fork: Aluminium, 40mm travel

Drivetrain

• Hub Gear: 5-Speed Shimano Nexus
• Front Chainwheel: 46 Tooth
• Rear Chainwheel: 34 Tooth

Braking/Shifting

• Brakes: Disc Brakes With Hydraulic Control
• Shifter: 5-Speed Selector

Wheels

• Rims: RODI Viper
• Tyres: Schwalbe Energizer Active Plus, 28-inch

Finishing Kit

• Front Light: Gazelle Fendervision
• Rear Light: Spanninga Brasa
• Handlebars: Aluminium
• Grips: Gazelle Aero leather
• Saddle: Selle Royal Essenza Plus, Royalgel
• Kickstand: Drop-Down Rear Stand

Battery Power

• Bosch Performance Line (65 Nm)
• Display: Bosch Intuvia LCD center
• Battery Type: Li-Ion
• Walk Assist: Yes

Gold Battery Pack (400Wh)

• Watt-hours: 400Wh
• Maximum Range: 100km
• Amps: 11.1A
• Eco Range: 100km
• Tour Range: 60km
• Sport Range: 45km
• Turbo Range: 40km

Platinum Battery Pack (500Wh)

• Watt-hours: 500Wh
• Maximum Range: 130km
• Amps: 13.8A
• Eco Range: 130km
• Tour Range: 75km
• Sport Range: 60km
• Turbo Range: 50km
