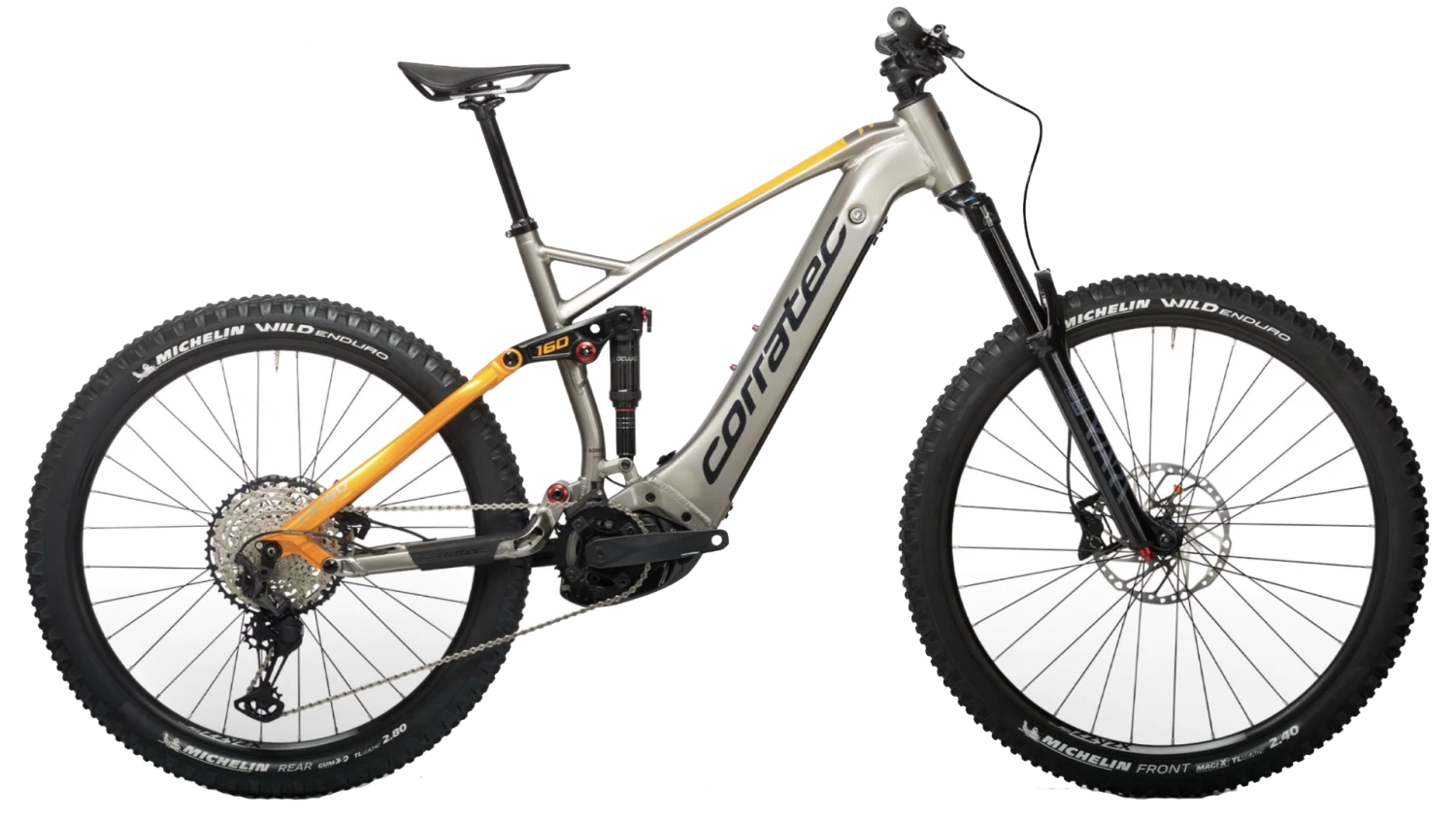

Corratec E-Power RS 160 Pro 2022 Electric Bike

The special all-mountain geometry fits perfectly for long tours across the alps featuring Shadow Edge Tube 2.0 – worldwide most stable and safest corratec E-Bike frame with integrated battery and triple butted aluminum for a light and stiff E-Bike.

Features

No path too steep, no challenge too great: the Performance Line CX Motor is made for anyone for whom the trail is a second home. eMTB mode will always give you the power you need at precisely the right moment.

What more could you want? The new PowerTube 625 Battery lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp.

Shadow Edge Tube 2.0

The all new Shadow Edge Tube 2.0 hides the Bosch Battery Pack completely inside the down tube and provides therefore a nice shape and look of the frame, nevertheless the battery can be removed out of the down tube. This intelligent and innovative lid-mechanism is developed by corratec and patent pending. The lid of the battery housing is made of High-Grade-Polyamid with Glass Fiber Reinforcement and therefore its super strong and robust. The integration of the battery prevents the whole electronics in case of dirt and other external influences. The edge of the Shadow Tube 2.0 is shaped very nicely and provides a sportive look. The special design of the edge improves the stiffness of the frame and causes more stability and security of the E-Bike frame. Removeable battery for charging cover made of High-Grade-Polyamid with Glass Fiber Reinforcement protect the battery and the electronics from dirt and other external influences Patent pending by Corratec.

29″ Front Wheel Size

Large wheels roll better. 29 inches require about eight percent less energy than the 26-inch version. The 29“ wheel takes longer to get going, but rolls easily and quickly over rocks and roots, which brings an additional advantage – more comfort.

Larger wheels roll over obstacles more easily. The ability of a wheel to roll over obstacles is proportional to its size. A 29″ wheel, which is about 10% larger than a 26″ wheel, can roll over 10% larger obstacles. The larger diameter wheels have more angular momentum so they lose less speed to obstacles and rough sections.

29″ bikes tend to offer taller riders a more “natural” frame geometry.

650b Rear Wheel Size

650b wheel Size is the new MTB standard. The 650b wheel is not a compromise between 26“ and 29“. It combines the advantages of 26-inch models (weight, torsional stiffness and agility) with the advantages of the 29“ impeller (increased smoothness, rollover behavior, increased cornering stability).

Dropper Seatpost

Dropper Seatpost with control lever on the handlebar or seatpost.

Hybrid (Pedelec)

A pedelec (Pedal Electric Cycle) is a special version of an electric bicycle, in which the rider is assisted by an electric drive when pedalling.

Internal Cable Routing

Internal Cable Routing inside the frame for protection and a stylish design.

Through Axle

Through-axles have the advantage that they are larger in diameter than conventional 9 mm axles and thus are significantly stiffer.

Tapered Headtube

The head tube is specially reinforced to accommodate force more efficiently.

Specifications

Frame and Forks

• Frame: Corratec E-Power RS 160 Boost
• Fork: SRAM Yari Motion Control RC 29″
• Rear Shock: Rockshox Deluxe Select

Drivetrain

• Chainwheel: ZZYZX E-Power Crank
• Cassette: Shimano DEORE SLX 12 Speed
• Rear Derailleur: Shimano DEORE XT 12 Speed

Braking/Shifting

• Brakes: Shimano MT401 203mm front and rear
• Shift Levers: Shimano DEORE SLX

Wheels

• Rim: ZZYZX Cross Attack 29 Boost front, ZZYZX Cross Attack 650b Boost rear
• Tyre: Michelin Wild Enduro TLR 29 x 2.4″ front, Michelin Wild Enduro TLR 650b, 2.8″+ rear

Finishing Kit

• Stem: ZZYZX SL Alloy
• Handle Bar: ZZYZX SL Alloy 800mm Handlebar
• Saddle: Selle Italia Model X
• Seat Post: Kindshock 900i

Battery Power

• Motor: Bosch Performance Line CX
• Max speed: 25 km/h
• Power: 250 watt
• Torque: 85 Nm (J)
• Battery: Bosch PowerTube 625Wh
• Energy: 625 wh
• Voltage: 36V
• Compatible with DualBattery
